• Model NO.：(PE-16,63 75,160 160,315 200,450 315,630 500,800
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Extruder：High-Efficient Single Screw Extruder
• Screw L/D：33:1
• PLC Cotnrolling：Siemens
• Cutting Methtod：Planetary Cutting
• Transport Package：Standard Package
• Specification：ISO9001: 2008
• Trademark：HSD
• Origin：Qingdao Shandong China
• HS Code：8477209000
• Production Capacity：150sets Per Year

Basic Info.

Model NO. (PE-16/63 75/160 160/315 200/450 315/630 500/800 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Extruder High-Efficient Single Screw Extruder Screw L/D 33:1 PLC Cotnrolling Siemens Cutting Methtod Planetary Cutting Transport Package Standard Package Specification ISO9001: 2008 Trademark HSD Origin Qingdao Shandong China HS Code 8477209000 Production Capacity 150sets Per Year

Product Description

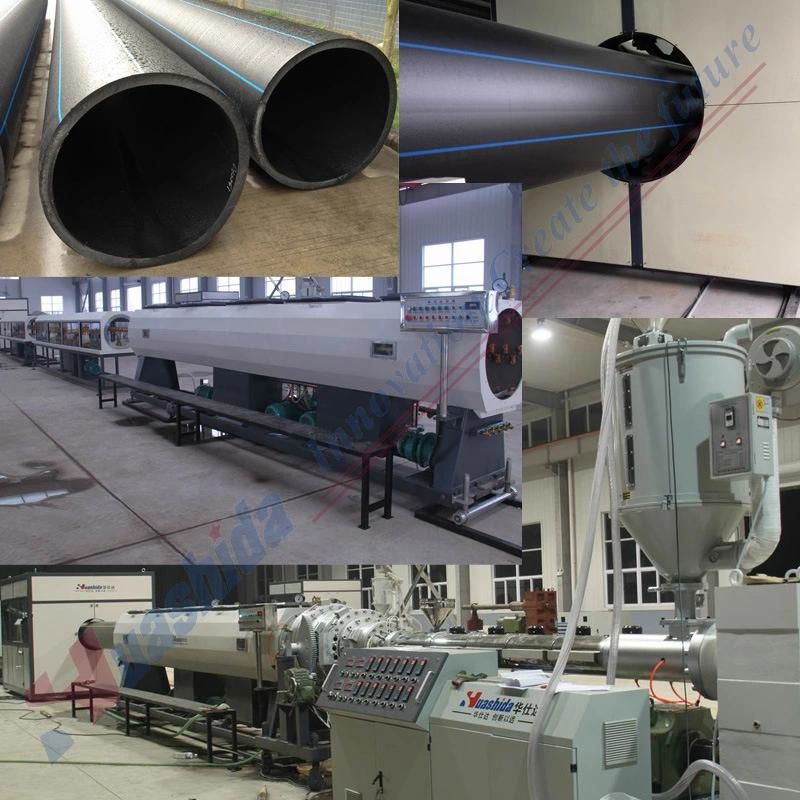

HDPE Solid Wall Pipe Extrusion Line



---Pipe diameter range: PE-16/63 PE75/160 PE160/315 PE200/450 PE315/630 PE500/800 PE710/1200mm

-HDPE Pressure Pipe Extrusion Line

INTRODUCTION
Pipe range: 20-63mm, 90-250mm 110-315mm 400-630mm
Pipe application area:
Municipal water supplying and gas supplying etc.
Composition of Equipments
1.1set Vacuum loader
2.1set Hopper Dryer.
3.1set Efficient single screw extruder (Long L/D ratio)
4.1set Mould
5.1set Co-extruder for mark line.
6.1set Vacuum calibration tank
7.2sets Water spraying tank
8.1set Hauling machine
9.1set Cutting machine
10.1set Stacker

Extruder
Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.

Extrusion die head
Flow channel is specially treated to have better wear-resisting; spiral die head increases extrusion pressure to improve quality of pipe.

Vacuum calibration tank & Water spraying tank

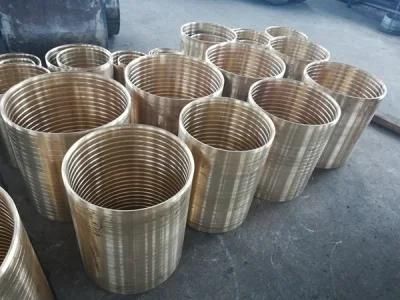

It adopts bronze or stainless steel calibrators; High-efficiency water-spraying cooling to ensure quality of pipes.

Hauling machine
High qualified rubber block is with longer life, we don't accept blocks made by recycled materials. Hauling speed is synchronized with extruder.

Planetary cutting machine
High qualified alloy steel blade; planetary cutting to get smooth edge; High cutting precision; PLC controlling.

TECHNICAL PARAMETERS

Style	PE16/63	PE75/160	PE160/315	PE200/450	PE-315/630	PE-500/800	PE-710/1200
Main extruder	SJ-65/30	SJ-75/33	SJ90/33	SJ90/33	SJ-120/33	SJ-120/33	SJ-150/33
Main motor	55kw	90kw	132kwDC	160kwDC	185kwDC	250kwDC	400kwDC
Pipe diameter	Φ16-63mm	Φ75-160mm	Φ160-315mm	Φ200-450mm	Φ315-630mm	Φ850-1372mm	Φ960-1680mm
Capacity	80-100kg/h	180-250kg/h	280-400kg/h	350-500kg/h	450-600kg/h	700-900kg/h	800-1200kg/h
