• Model NO.：BP-8178-A
• Machine Weight：400kg
• Certification：CE, ISO9001:2008, UL, QS, GMP
• Transport Package：Polywood Wooden Case
• Specification：1250*500*940(W*D*H)mm
• Trademark：BAOPIN
• Origin：China
• HS Code：8477301000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. BP-8178-A Machine Weight 400kg Certification CE, ISO9001:2008, UL, QS, GMP Transport Package Polywood Wooden Case Specification 1250*500*940(W*D*H)mm Trademark BAOPIN Origin China HS Code 8477301000 Production Capacity 100 Sets/Month

Product Description

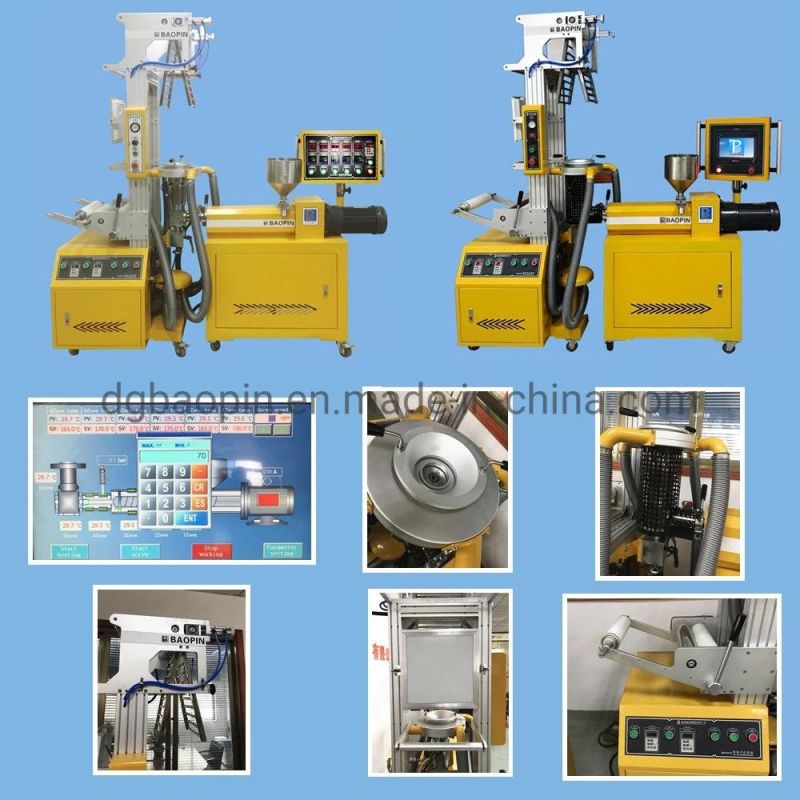

PP PE PLA HDPE LDPE plastic polymer nylon automatic monolayer lab small blow film machine
The small blow film machine consisted of single screw extruder and film blowing tower, it is mainly used for testing the film blowing feasibility of polymer materials and the colloid status contained in the materials.

The small blow film machine is refers to the technological process that the double-folded plastic film made by compressed air huffing, vane cooling and frequency conversion traction and the plastic melt being extruded through dies at a certain temperature and certain cutting force.

Parameters:
1. Single screw extruder

Screw diameter	Φ 20, Φ 25, Φ 30 optional
Length diameter ratio	1:28
Screw speed	0 - 95 rpm frequency control

Screw/Feeding barrel material of small blow film machine:
38CrMoAl chromium-molybdenum steel. With the surface-layer processing of tempering, nitriding, chroming, polishing and super-precision grinding, the hardness HRC55~60, roughness Ra≤0.4μm, nitriding depth≥0.6mm.

Electric control system of small blow film machine:
PID/LED/RKC intelligent digital display temperature controller, precision smart digital instrument control and display of all process parameters, including temperature control, drive, pressure, joint control interlock function.

2. Film blowing tower

Diameter of dies	Φ 30
Driving rolling speed	0- 5 m/min adjustable
Maximum folded diameter of the film	150 mm
Servo motor	90 W
Fan	0.25 KW
Rolling torque motor	3.5 N.m
Illuminating case	LED light

Huffing air:
Compressed air 0 -6 bar, can be fine adjusted and stabilized.

Cooling air:
Blower flow 30 L/min, can be fine adjusted and stabilized.




Features:

1. This small blow film machine has compact design and a small body, not occupying too much indoor area.
2. The host and auxiliary machines are of easy assembly with few raw material. The maximum folded diameter of the thin film can reach200mm.
3. This small blow film machine is equipped with the C-type fast changing handpiece of easy operation and time & labor-saving test.
4. Single-layer or double-layer cooling vane and the closed-loop control of creasing width ensure reliable product quality.
5. The spiral circulation film blowing die of high performance is easy to clean and maintain for small blow film machine.
6. The height of the filming blow tower can be adjusted arbitrarily to meet test requirements.
7. The extrusion, traction and rolling of small blow film machine have the property of stepless speed regulating, ensuring requirements of film blowing technology to be met.
