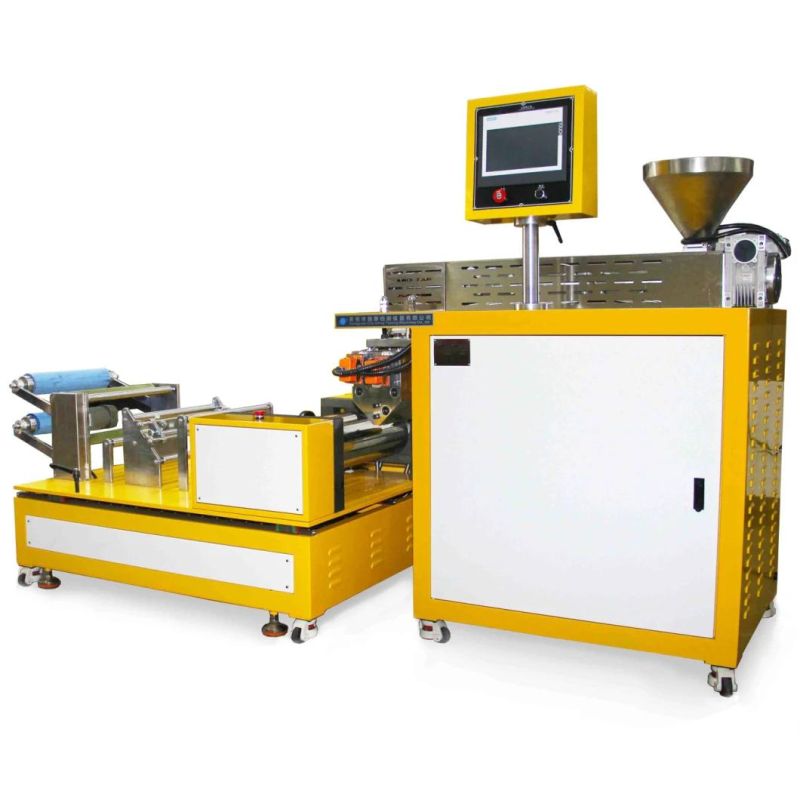

Lab-Tech Type Cast Film Making Machine/Lab Cast Film Lines

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service:a Lifetime of Service
  • Warranty:3 Years
  • Type:Multi-Roll
  • Material Processed:PP
  • Roller:Two
  • Roller Structure:Mirror Roller

Base Info

  • Model NO.:XH-432
  • Roller Orientation:L-Type
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008
  • Customized:Customized
  • Condition:New
  • Film Thickness:0.02-0.04mm
  • Screw Material:38crmoala
  • L/D:33:1 or Customized
  • Diameter:35mm or Customized
  • Screw Rotating Speed:0-95rpm
  • Power Electricity:380V
  • Application:Plastic Rubber Materials,Plastic Processing
  • Die Width:300mm
  • Control Mode:Siemens PLC Control
  • Transport Package:Wooden Case
  • Trademark:Xihua
  • Origin:China

Description

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATORApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diameters35mmScrew rotating speed0-95 rpm (adjustable)Screw L/D ratio33:1Temperature rangeRoom temperature - 300ºC Film thickness0.02-0.04mmFilm width250mm (customized)Die width300 mmWorking voltage380V/50Hz/3 phases or CustomerizedMotor power2.2kwTotal Power7 kwControl modeSIEMENS PLC Control  Lab-Tech Type Cast Film Making Machine/Lab Cast Film LinesLab-Tech Type Cast Film Making Machine/Lab Cast Film LinesLab-Tech Type Cast Film Making Machine/Lab Cast Film Lines


Features
1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant
2) Using brand melt pressure and temperature sensor to ensure high accurage data

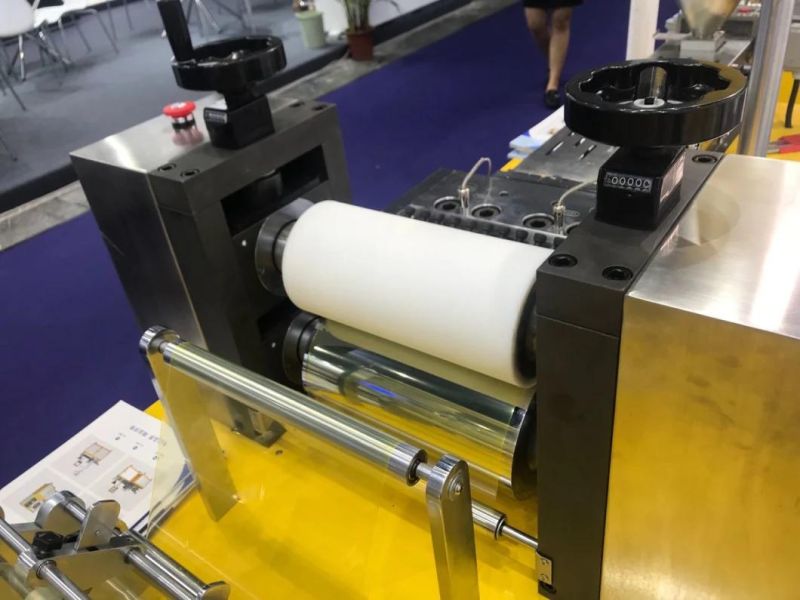

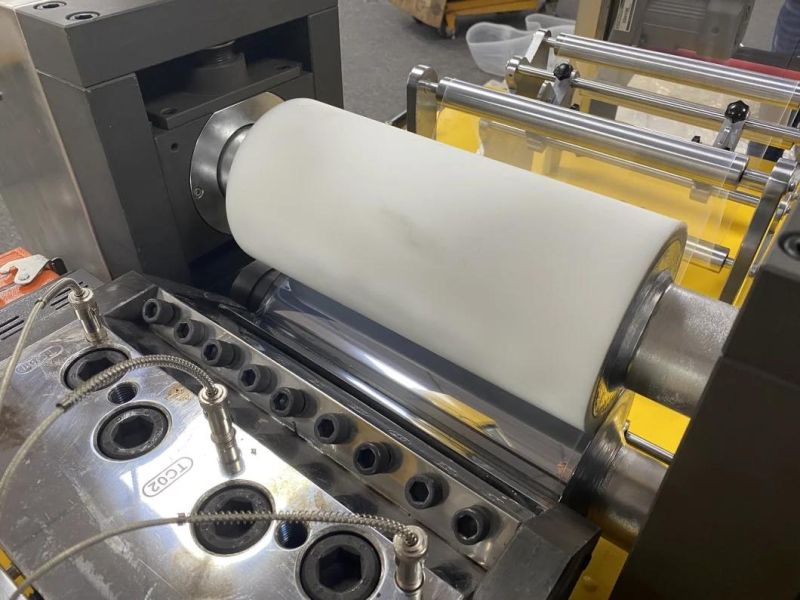

3) Cantilever roll structure making it easy to lead the film and be operated
4) dopting PLC control system and friendly operation interface to easily operate
5) On-line testing and displaying melt pressure, temperature and other key data
6) Emergency stops and devices to protect safety of the operator



Other type cast film machine
 Lab-Tech Type Cast Film Making Machine/Lab Cast Film LinesLab-Tech Type Cast Film Making Machine/Lab Cast Film Lines

1. lab cast film machine with twin screw extruder.
2. Multiple layers lab cast film machine, Like Two, Three, Five layers cast film machine.

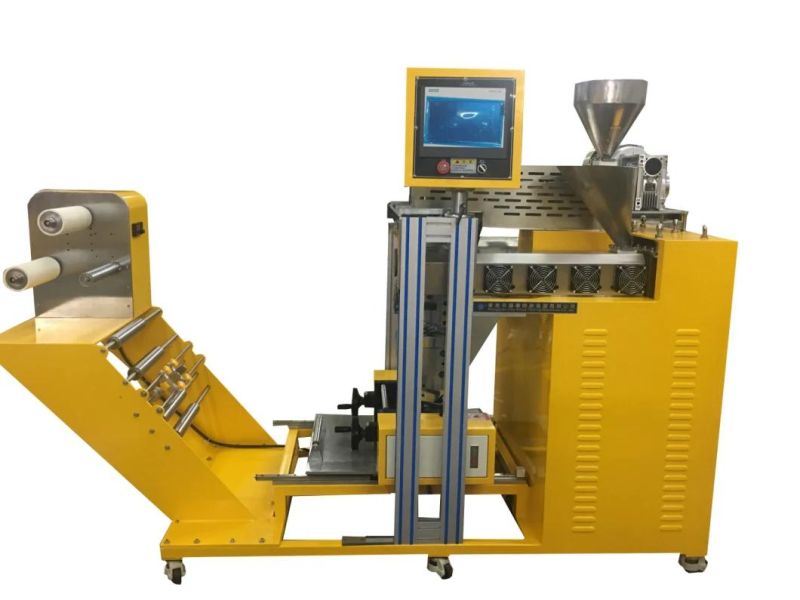

3. lab cast film machine with Vertical die.
