1000L IBC Drum Automatic Extrusion Blow Molding Machine (PXB1000L-IBC)
Zhangjiagang Puxin Machinery Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：PXB1000L(IBC)
- Bottom Blowing：Available
- Material：PP, PE, ABS...
- Total Weight：85t
- Output(Dry Cycle)：180 PC,Hr
- Die Head Option：Accumulator Head
- Production Usage：IBC Drum
- Multi-Layer：Available
- Screw Diameter：120mm*2
- Clamping Force：1500kn
- Accumulator Capacity：45L

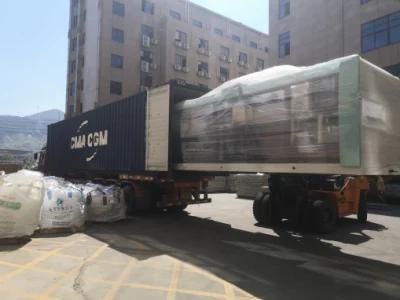

- Transport Package：Film Packing with Wooden Bottom
- Specification：Max capacity 1200L
- Trademark：Puxin
- Origin：Jiangsu
- HS Code：847730100
Description
PE,PP,ABS... Max container capacity L 1200 Output(dry cycle) pc/hr 180 Machine dimension(L×W×H) M 10.5×5.1×8.5 Machine weight T 85 Clamping Unit Clamping force kn 1500 Mold platen size(W×H) mm 1800×1600 Platen moving stroke mm 1000-2700 Platen moving stroke mm 1700 Max Mold Size (WxH) mm 1600×1600 Mold thickness mm 1100-1300 Power Servo oil pump motor power KW 37 Servo pump displacement L/MIN 200 Blow pressure MPA 1 Air consumption M3/MIN 6 Cooling water pressure mpa 0.3-0.5 Water consumption L/min 60 Average energy consumption KW 250-300 Extruder unit Screw diameter mm 120×2 Screw L/D ratio L/D 30 HDPE Melting capacit for HDPE kg/hr 420×2 Number of heating zone zone 6 Screw heating power kw 30.2 Screw fan power KW 0.6 Extruder motor power kw 132×2 Die head Number of heating zone for single die head zone 6 Heating power for single die head kw 78 Max die-pin diameter mm 550 Accumulator capacity L 45 (HDPE) Accumulator weight(HDPE) KG 33
