• Screw Diameter(mm)：65,132
• Screw Speed(Rpm)：1-30
• Motor Power(Kw)：37,24
• Output(Kg/H)：80-250
• Max Width(mm)：600
• Drawing Height(mm)：140
• Drawing Force(Fn)：40
• Drawing Speed(M/S)：0.5-5

Basic Info.

Screw Diameter(mm) 65/132 Screw Speed(Rpm) 1-30 Motor Power(Kw) 37/24 Output(Kg/H) 80-250 Max Width(mm) 600 Drawing Height(mm) 140 Drawing Force(Fn) 40 Drawing Speed(M/S) 0.5-5

Product Description

Application:

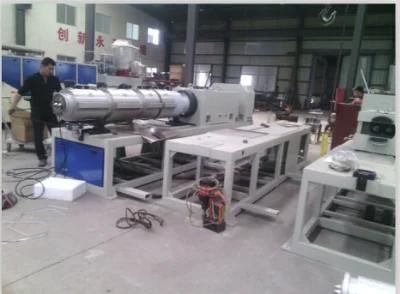

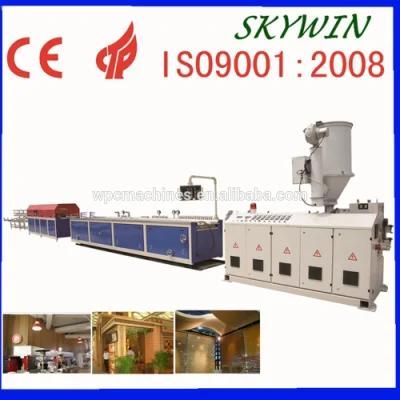

The extruder is mainly used for making plastic-stell door and window profile,window boards,wire casing,

skirting boards,ect.

Features:

1.The screw adopts oil-cooling way, and the barrel is cooled by special air-cooling system.

2. Good and uniform plasticization, high output, wide applications, stable characters.

3.Special designed reduction box and distribution box,strengthened thrust bearing, big transmission torque,

long-life.

4.PLC/PC automatic control adopted by electrical cabinet, temperature controller used by convention

equipment.

5.Imported elements, equipped with alarm function, simple operation, easy maintenance,etc.

Technical Parameters

Model	SWYXC45/90	SWYXC50/105	SWYXC55/110	SWYXC65/132	SWYXC80/156	SWYXC92/188
Screw  Diameter(mm)	45/90	50/105	55/110	65/132	80/156	92/188
Screw Speed(rpm)	1-45.5	1-30	1-38	1-30	1-36.9	1-32.9
Motor Power(kw)	15/11.5	22/18	22/18	37/24	55/36	90/45.4
Output(kg/h)	40-70	60-100	70-150	80-250	250-400	300-750
Net weight(kg)	3000	3500	3800	4000	5000	10000
Max Width(mm)	180	240	400	600	800	1000
Drawing  Height(mm)	140	140	140	140	140	140
Drawing Force(fn)	15	30	30	40	50	50
Drawing  Speed(m/s)	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Auxiliaries  Total Power(kw)	18.7	31.6	31.6	31.6	31.6	37.1
Outline  Dimension(mm)	3360*1290*2127	3620*1050*2157	3620*3500*2157	4235*1520*2450	4750*1550*2460	6725*1550*2814
