• Model NO.：SJZ92,188 SJZ110,220
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Certification：Ce, ISO 9001, EU, QS, GMP
• Board Layers：Multilayer
• Pay Terms：T,T, L,C
• Transport Package：Wooden Pallet or Wooden Box
• Trademark：JWELL
• Origin：China
• HS Code：84778000
• Production Capacity：800 Kg,H

Basic Info.

Model NO. SJZ92/188 SJZ110/220 Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Certification Ce, ISO 9001, EU, QS, GMP Board Layers Multilayer Pay Terms T/T, L/C Transport Package Wooden Pallet or Wooden Box Trademark JWELL Origin China HS Code 84778000 Production Capacity 800 Kg/H

Product Description

JWELL Plastic Floor / SPC Floor /Stone Floor / Vinyl Floor Extrusion Line


SPC(stone plastic composite) Flooring also called Rigid Vinyl Plank(RVP) is an upgrade of LVT(Luxury Vinyl Tiles) and it is representative of 21st century new high-tech ground materials because of the excellent stability and durability.

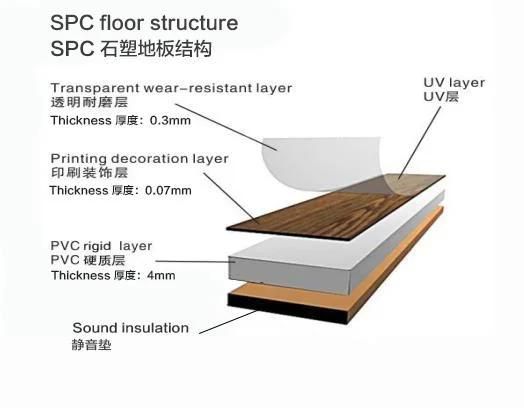

SPC FLOOR STRUCTURE:



ADVANTAGE OF SPC FLOOR:

SPC Stone plastic extrusion line is PVC as base material and extruded by extruder, then get through fourroll calendars, separately put Pvc color film layer+PVC wear-resistance layer+PVC base membranelayer to be pressed and pasted together at one time progress. Simple proces, complete the paste that depend on heat, without glue.
1.Waterproof and moistureproof.
2. Colorful, many colors are optional
3. Environmental protection, non-pollution, pollution-free, recycle. The productsdo not contain benzene and formaldehyde, it' s a environmental products, and it srecyclability can reduce usage of wood.
4. Good fireproofing. it can stop fire effectively, fire rating reach level B1, when the firetouch products, the fire will put out immediately, and do not produce any toxic gas.
5. Easy for installation, convenient for wok, simple construction ways, save installedtime and cost.
6. Not cracking, not expand, not out of shape, easy to clean and maintasin.

PRODUCT INFORMATION:

1, The screw adopt the design of special mixing material function and high plasticization capacity. This guarantee the uniformity of plastic melting, coloring and the high output.
2, Clothes rack type mould head adopt double throttling design, which make the more precision of adjusting the thickness of sheet.
3, The ±1ºC precision degree of temperature control can control the plasticization precess, thickness and surface smooth of sheet accurately.
4, The arrange of roller can be vertical , horizontal or free adjusting type, which can give more selection basing on different thickness of sheet.
5, The screw adjusting and oil pressure press-roller double direction adjusting can control the thickness of sheet accurately.
6, The double loop cooling system and mould temperature controller are adopted to control press-roller temperature, by which sheet thickness can be controlled accurately.
7, The unwinder adopt high torque motor, which cooperating with four shaft automatic strain control can adjust the unwinding speed and unwinding strain to obtain the smooth surface.
8, The automatic measuring meter instrument can set the length of sheet.
9, The cutting machine can cut the sheet to get the accurate length.
10, With automatic robot device for sheet collection, saves labor and time.

EXTRUDER SPECIFICATION:

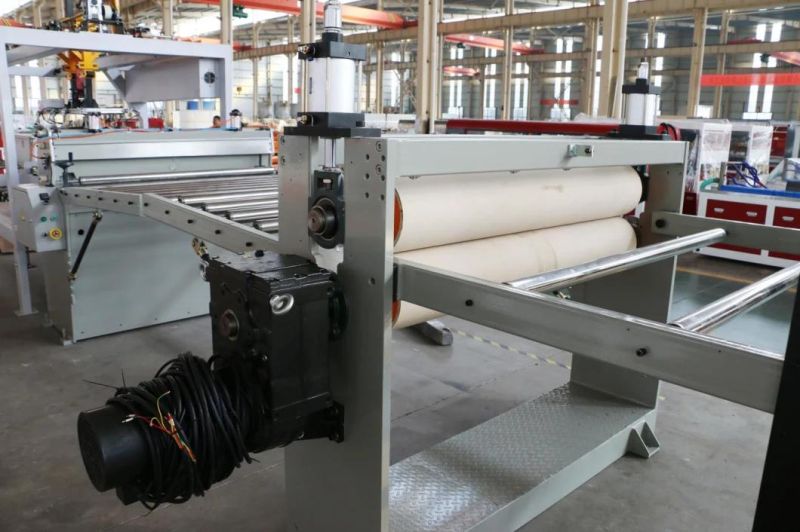

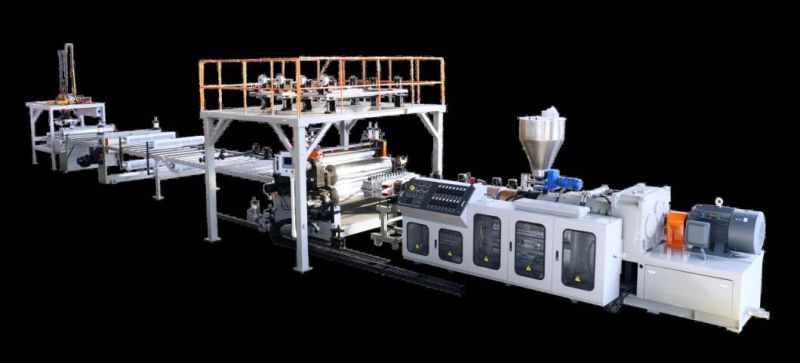

MACHINE PHOTOS:

Packaging & Shipping:

• Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
• Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.
•

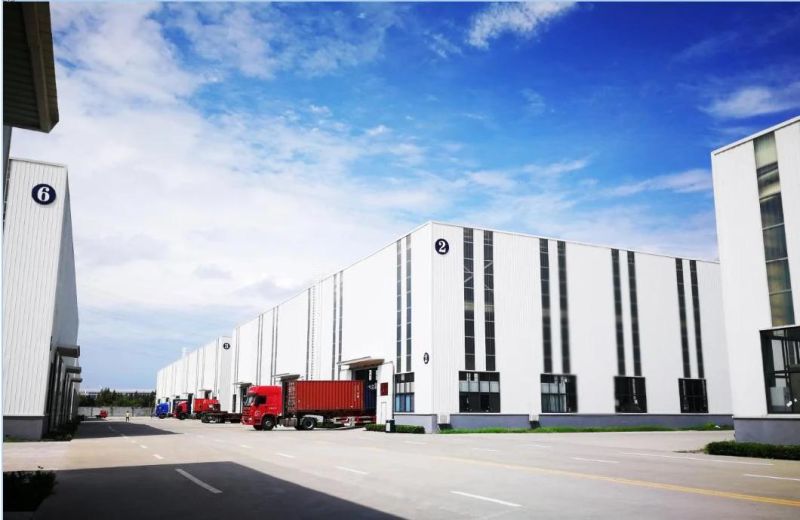

JWELL COMPANY CHINA
