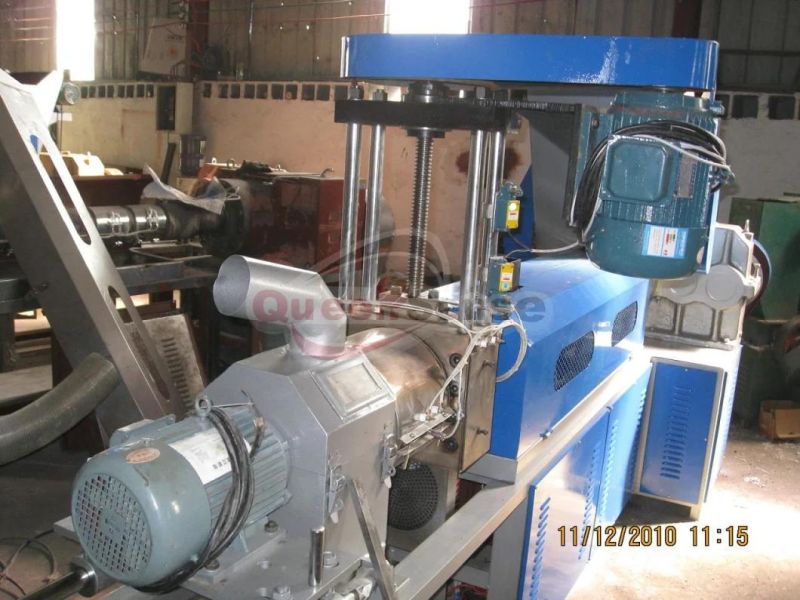

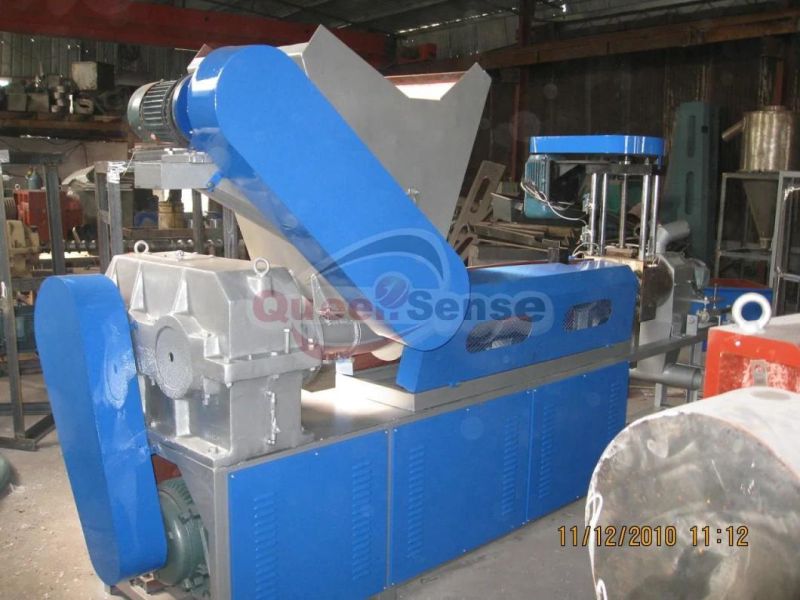

Wind-Cooling Hot-Cutting Plastic Recycling Compounding Machine (SJ-A90-120)
Ruian Queensense Machine Co., Ltd.- Material Processed：Film
- Plastic Type：PE
- Screw：Double-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：SJ-A90-120
- Transport Package：Wooden Box
- Specification：CE
- Trademark：QUEENSENSE
- Origin：China
- HS Code：8477201000
- Production Capacity：60-130kg,H
Description
Basic Info.
Model NO. SJ-A90-120 Transport Package Wooden Box Specification CE Trademark QUEENSENSE Origin China HS Code 8477201000 Production Capacity 60-130kg/HProduct Description
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical VariablesMain Technical Variables:| Model | SJ-A90 | SJ-A100 | SJ-A110 | SJ-A120 |
| Type Diameter of Screw Stem | φ90 | φ100 | φ110 | φ120 |
| Major Diameter Ratio of Screw Stem (L/D) | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 |
| Rational Speed of Screw Stem | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Motor Power | 22kw | 30kw | 37kw | 45kw |
| Output | 68kg/h | 95kg/h | 120kg/h | 135kg/h |
| Weight of overall(kg) | 2600kg | 2800kg | 3000kg | 3200kg |
| Cover dimensions (l×w×h) (mm) | 4000×1500×1800 | 4000×1500×1800 | 4000×1500×1800 | 4600×1500×1800 |
