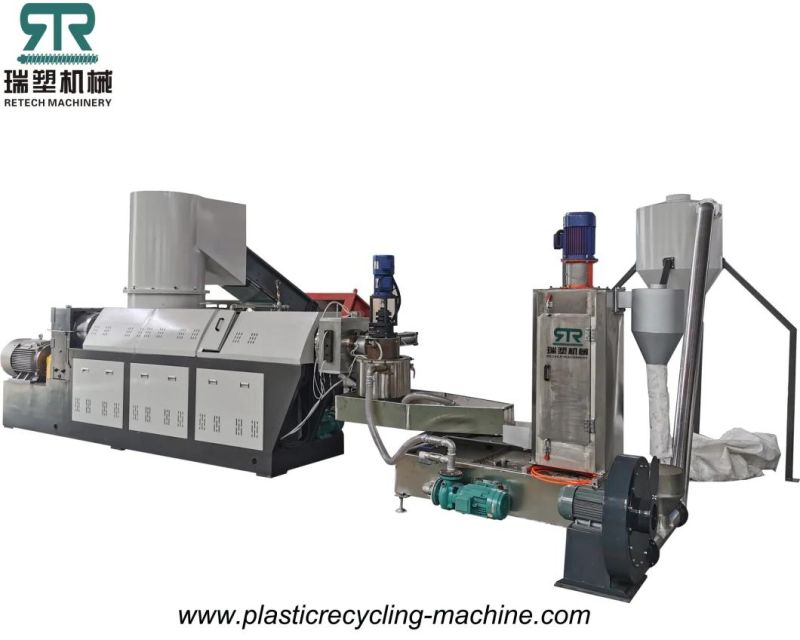

Plastic Squeezed Ground/Agriculture/Packaging LDPE LLDPE 98/95 Film Granulating Line

ZHANGJIAGANG RETECH MACHINERY CO., LTD.
  • After-sales Service:Yes
  • Warranty:1 Year
  • Material Processed:Film
  • Plastic Type:PE
  • Screw:Single-Screw
  • Automation:Automation

Base Info

  • Model NO.:RCSJ RCDJ
  • Computerized:Computerized
  • Certification:ISO9001:2008, CE
  • Customized:Yes
  • Degassing:Vacuum
  • Cutting:Die Face Cutting
  • Transport Package:by Sea
  • Specification:TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
  • Trademark:RETECH
  • Origin:China
  • HS Code:8477201000
  • Production Capacity:100 Sets Per Year

Description

ModelDiameter of screwPE capacityPP capacityTSDJ-100Φ100mm100-150kg/h90-120kg/hTSSJ-100/100Φ100/100mm100-150kg/h90-120kg/hTSDJ-120Φ120mm200-250kg/h180-200kg/hTSSJ-120/120Φ120/120mm200-250kg/h180-200kg/hTSDJ-150Φ150mm280-350g/h250-300kg/hTSSJ-150/150Φ150/150mm280-350g/h250-300kg/hTSDJ-180Φ180mm380-420kg/h320-360kg/hTSSJ-180/180Φ180/180mm380-420kg/h320-360kg/hTSDJ-200Φ200mm450-500kg/h380-400kg/hTSSJ-200/200Φ200/200mm450-500kg/h380-400kg/h
For Hard Plastics
Plastic Squeezed Ground/Agriculture/Packaging LDPE LLDPE 98/95 Film Granulating Line
Plastic Squeezed Ground/Agriculture/Packaging LDPE LLDPE 98/95 Film Granulating Line
TC Series Plastic PE PP Film Granulating Line
 ModelDiameter of screwPE capacityPP capacityTCDJ-85Φ85mm150-200kg/h100-150kg/hTCSJ-85/85Φ85/85mm150-200kg/h100-150kg/hTCDJ-100Φ100mm280-350kg/h250-300kg/hTCSJ-100/100Φ100/100mm280-350kg/h250-300kg/hTCDJ-130Φ130mm480-550kg/h400-500kg/hTCSJ-130/130Φ130/130mm480-550kg/h400-500kg/hTCDJ-160Φ160mm650-800kg/h600-750kg/hTCSJ-160/160Φ160/160mm650-800kg/h600-750kg/hTCDJ-180Φ180mm800-1200kg/h750-1000kg/hTCSJ-180/180Φ180/180mm800-1200kg/h750-1000kg/h
For Soft Films

Plastic Squeezed Ground/Agriculture/Packaging LDPE LLDPE 98/95 Film Granulating Line
Plastic Squeezed Ground/Agriculture/Packaging LDPE LLDPE 98/95 Film Granulating Line
(The thickness of granules is depend on the speed of cutter)


360°services:

Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

How to choose single stage or double stage?

Common:
The same feature between single and double stage pelletizing machine is they can all extrusion the plastics. They can all recycle the waste plastics into plastic granules.

Difference:
* Single stage granulating line is with one stage, double stages granulating line is with two stages extruders.
* Single stage granulaying machine is usually to process clean and dry plastics, double stages granulating machine is usually to process dirt and wet plastics.(Mositure less then 8%)
*You can choose single or double stages according to the material is dirty or clean. Normally, double stage with 2 filtrations system will stop more impurities.
*In all, we can customzied your machines according to different situations.
