Semi Automatic 4 Cavity Water Bottle Making Machine for 0.5L Upto 3L Pet Beer Bottles ...
Zhangjiagang Eceng Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Semi-Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：yc-2l-4
- Cavities：4
- Output：2200-2500PCS,H
- Max Volume：2L
- Color：Orange
- Blow Moulding Type：Injection Blow Moulding
- Necessary Auxiliary Devices：Air Compressor and Air Filter
- Replacement Assembly Parts：Provide for Free
- Total Power：16kw
- Oven Size：1.35*0.55*1.15
- Oven Weight：300kg
- Transport Package：Wooden Package
- Specification：ce iso
- Trademark：eceng
- Origin：Zhangjiagang Jiangsu
- HS Code：8477300000
- Production Capacity：30per Month
Description
Product SpecMax. product volume(L/cav) 2 Max. preform neck size(mm) 100 Max. product diameter(mm) 180 Max. product height (mm) 300 Cavities 2 Blow molding part Die force (KN) 100 Die stroke (mm) 270 Max. mould size(mm) 390*345 Mould thickness Adjustable Mould spacing(mm) Max. pulling stroke(mm) 400 Operation pressure(Mpa) 0.8-1.0 Operation air pressure consumption(1tr/min) 200 Blow pressure(Mpa) 1.2-2.8 Blow air pressure consumption (1tr/min) 300 Output(pcs/h) 1000-1800 Machine size(LxWxH)(m) 1.46*0.58*1.8 Machine weight(KG) 650 Oven Temperature grade(rate) 8 Heating time(S) 90-200 Voltage(V) 220 or as your request Frequency(HZ) 50/60 Total power(KW) 16 Oven Size (LxWxH) 1.35*0.55*1.15 Oven weight (KG) 300
Product max volume: 2L
Suitable for blowing bottles between 100ml to 2000ml
Necessary auxiliary devices: High pressure air compressor, dryer,Air filter and chiller

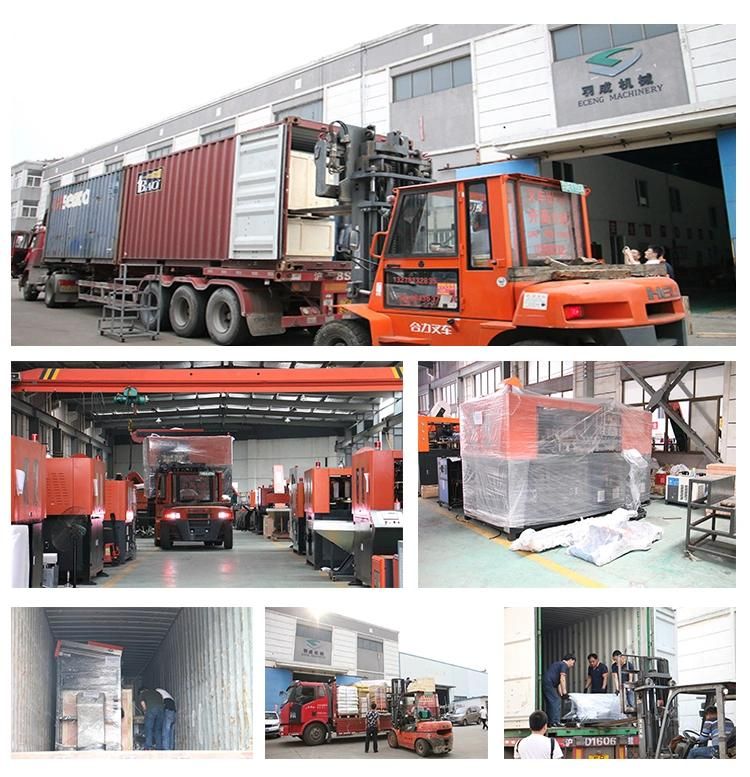

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
AFTER-SALE
1.Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine.2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.5.well-trained & experienced staff are to answer all your inquiries in English and Chinese 6 .12 Months guarantee and life-long technical support.7.Your business relationship with us will be confidential to any third party.8. Good after-sale service offered, please get back to us if you got any questions.FAQ
Q:Your company is a trading company or a direct factory?A:We are a direct factory which locates in Zhangjiagang city.Q:All of your products are made by yourself or compacted via purchasing the others?A:We have independent technical team who focus on making machines,all the products are made by our technical team.Q:What is the ability of your factory?A:About 80 lines per year.Q:Do you have any other services about your products?A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.Q:How do you make the quotation for clients?A:The price depends on quality and performance but the clients should be satisfied first.
Product max volume: 2L
Suitable for blowing bottles between 100ml to 2000ml
Necessary auxiliary devices: High pressure air compressor, dryer,Air filter and chiller
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
AFTER-SALE1.Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service 1'We can send you the video of the running machine.2'You are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.5.well-trained & experienced staff are to answer all your inquiries in English and Chinese 6 .12 Months guarantee and life-long technical support.7.Your business relationship with us will be confidential to any third party.8. Good after-sale service offered, please get back to us if you got any questions.FAQ
Q:Your company is a trading company or a direct factory?A:We are a direct factory which locates in Zhangjiagang city.Q:All of your products are made by yourself or compacted via purchasing the others?A:We have independent technical team who focus on making machines,all the products are made by our technical team.Q:What is the ability of your factory?A:About 80 lines per year.Q:Do you have any other services about your products?A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.Q:How do you make the quotation for clients?A:The price depends on quality and performance but the clients should be satisfied first.
