Plastic Machinery

Twin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage ...

Zhangjiagang City Xinrong Machinery Co., Ltd.
  • After-sales Service:Online Guidance for Installation and Commissioning
  • Warranty:12months
  • Type:Powerful Plastic shredders
  • Raw Material:PP, PE, Pet, PVC, Wood, Metal, Tyre, Mixing
  • Structure:Top Feed
  • Knife Classification:Claw Knife Crusher

Base Info

  • Model NO.:XD1500
  • Knife Roll:Two Shafts
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, UL, SGS
  • Shredding Room:1500*900mm
  • Rotor Diameter:500mm
  • Motor Brand:Simo,Wannan,Boneng,Siemens,Weg
  • Blade Materials:SKD11, H13
  • Gear Box:Guomao or Boneng
  • Bearing:Heavy Duty Bearing
  • Voltage:According to Customer
  • Output:2000-3000kg,Hr
  • Rotating Speed:16-21rpm
  • Output Size:30-160mm
  • Weight:8700kg
  • Delivery Time:30-40 Working Days
  • Transport Package:Wooden Case
  • Specification:XD1500
  • Trademark:FAMOUS
  • Origin:China
  • HS Code:84778000
  • Production Capacity:2sets,Month

Description

Basic Info.

Model NO. XD1500 Knife Roll Two Shafts Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, UL, SGS Shredding Room 1500*900mm Rotor Diameter 500mm Motor Brand Simo/Wannan/Boneng/Siemens/Weg Blade Materials SKD11, H13 Gear Box Guomao or Boneng Bearing Heavy Duty Bearing Voltage According to Customer Output 2000-3000kg/Hr Rotating Speed 16-21rpm Output Size 30-160mm Weight 8700kg Delivery Time 30-40 Working Days Transport Package Wooden Case Specification XD1500 Trademark FAMOUS Origin China HS Code 84778000 Production Capacity 2sets/Month

Product Description

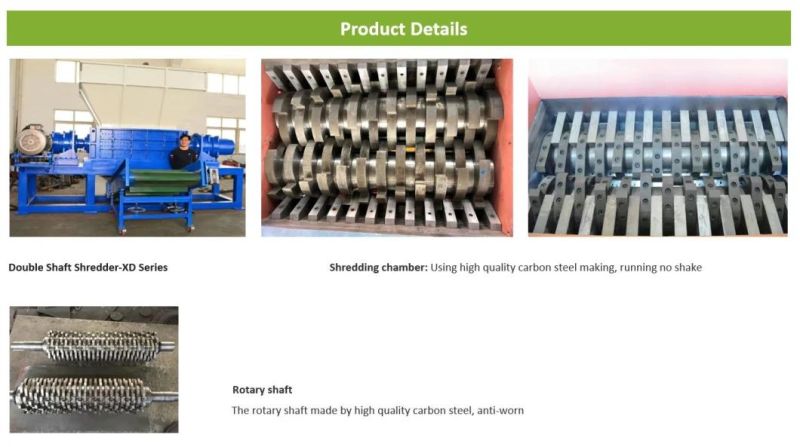

Double Shaft Shredder Machine
Product Description:
The XD series double shafts shredders have been designed for a wide way of applications and industries, such as: shredding WEEE waste, scrap tires, packaging barrel, pallets, etc. Depending on input materials and the following process the shredded material can be used directly or go into the next step of size reduction. XD's serious double shaft shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise. Adopt with microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

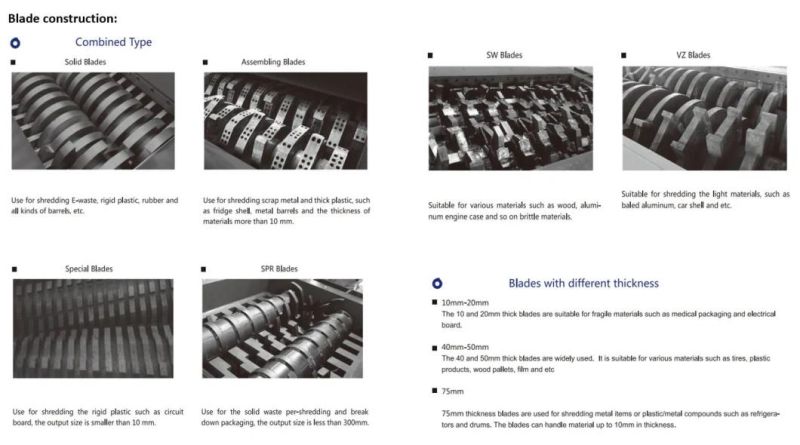

 Based on different materials, we design the special blades with different hooks, normally, we have single hooks blade, double hooks blades, four hooks blades and multi-hooks blades. Also the thickness of blades for different materials are different, the range is 10mm-80mm. We design single or multi-hooks of blades with different thickness for different materials.
 Such as:
The 10 and 20mm thick blades are suitable for fragile materials such as medical packaging and electrical board.
 The 40 and 50mm thick blades are widely used for various materials such as tires, plastic products, wood pallets, film and etc.
 The 80mm thickness blades are used for shredding metal items or plastic and metal compounds such as refrigerator and drums, the blades can handle material up to 10mm in thickness.

Suitable Products:
  • PLASTICS
  • RUBBER
  • WOOD
  • BIOMASS
  • PAPER
  • ALTERNATIVE FUELS (RDF/SRF)
  • DOMESTIC & COMMERCIAL WASTE
Twin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderProduct Parameters:

Model

Motor (kw)

Diameter of rotor
(mm)

Speed
(rpm)

Rotating Knife (pcs)

Fixed Knife (pcs)

Hooks

Weight (kg)
XD6007.5+7.5Φ2801620205-132400
XD80011+11Φ2801616165-133700
XD100018.5+18.5Φ4001620205-214100
XD100022+22Φ4201620205-214500
XD120037+37Φ4401624245-216500
XD150055+55Φ5001630305-218700
XD200090+90Φ7501640405-219200
Note: The above technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

Double Shaft Shredder Machine Work Process:

Twin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderTwin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderTwin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderTwin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderTwin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderTwin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine Shredder
Twin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine Shredder
Twin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderTwin Shaft E Waste Scraping Metal Plastic Shredder Recycling Shredding Kitchen Garbage Machine ShredderOur Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine

Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.

Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
 FAQ

Q: Are you a factory or a  trading company?

A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 30 years, our factory is in Zhangjiagang city which is near shanghai and wuxi.

Q: Do you have any certifications?

A: Yes, we have ISO, CE, SGS.

Q: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: When can I get my machine after I paid?

A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: How to install my machines when it arrives? how much the cost?

A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have
problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory.

Customer pay for visa, round air tickets, accommodation and USD100/day/person.

Q:How long time for installation?

A:According your machines order, we will send one or two engineers to your plant, it will take about 5 days to 10 days.

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price.


IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT WITH ME.
