Parallel Twin Screw Spc Extrusion Line with a Daily Capacity of 4000-4500 Square Meter
Wuxi Boyu Plastic Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Engagement System：Conical Meshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Screw Design：Conical Twin-Screw
- Weight：~44.5 Tons
- Power：485-750kw Per Line
- Voltage：220-415V , 50-60Hz 3 Phase
- Function：Flooring Sheet Extrusion
- Certificate：CE, ISO, TUV, UL, CSA
- Transport Package：Wooden Case Packing or Film
- Specification：Production Line layout: 50m (L) * 5m (W) * 8m (H)
- Trademark：Boyu
- Origin：Wuxi China
- HS Code：8477209000
- Production Capacity：200 Lines Per Year
Description
SJSZ 138/32 parallel twin screw extrusion lineNO. Machine Item Qty Unit 2.01 138/32 parallel twin screw extruder 1 Set 2.02 Five-Rollers Calendar 1 Set 2.03 On-line EIR Hardware 1 Unit 2.04 Rollers oil Heating System 1 Unit 2.05 Wind Curtain Machines 6 Set 2.06 Traction Machine 1 Set 2.07 Air cooling cabinet 1 Set 2.10 Stainless steel roller conveyor 1 Unit 2.11 Slabs cutting machine 1 Unit 2.12 Automatic flipping & Stacking System 1 Unit 2.13 Automatic transposition stacking pallet 1 Unit 2.14 1350mm extrusion T-die 1 Pc

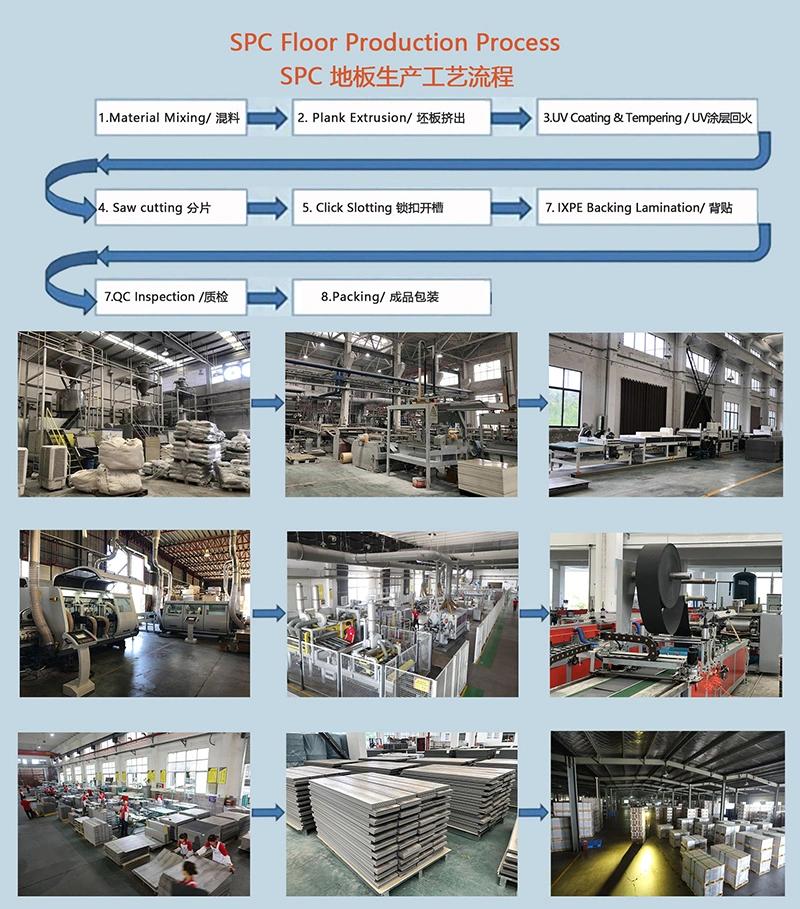

III.Production Flow
Material mixing → Extruder → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing
IV. Main Processing Steps
1. Material Mixing→ screw conveyor from 8m3 Silo (~5 Tons) → Feeding recipe material into the hopper loader → Extruder → Material Plasticizing → Extrusion through T-die → Five Roller Calender
2. Plank extruded from T-die→ Five Roller Calender →Thickness calibration on 1# & 2 # rollers → Wearing film & decorative film laminating on 3 # roller → Temperature reduction on 4# silicon roller → On-line embossing (EIR) on 5# roller → Edges trimming
3. Plate conveying from 5 roller calender→ Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet → Traction Machine→ Cut-to-length machine →Automatic Flipping & Stacking Machine
V. Advantages of BOYU WPC Production Machine Line
VI.Services

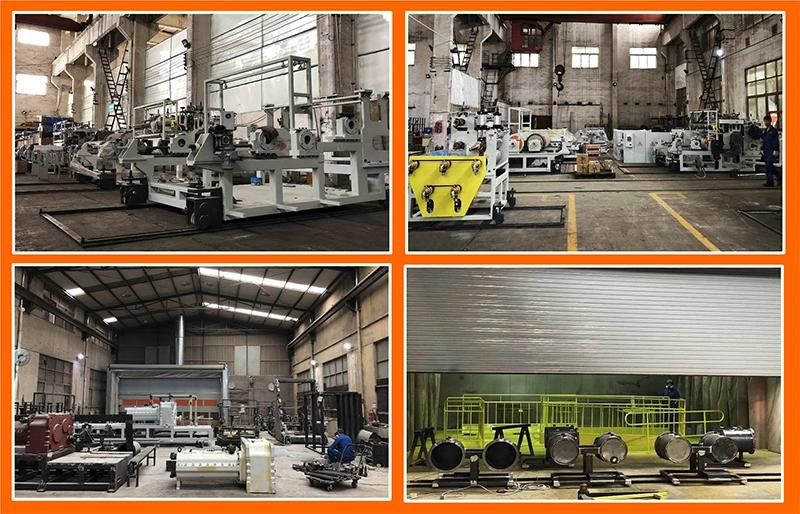

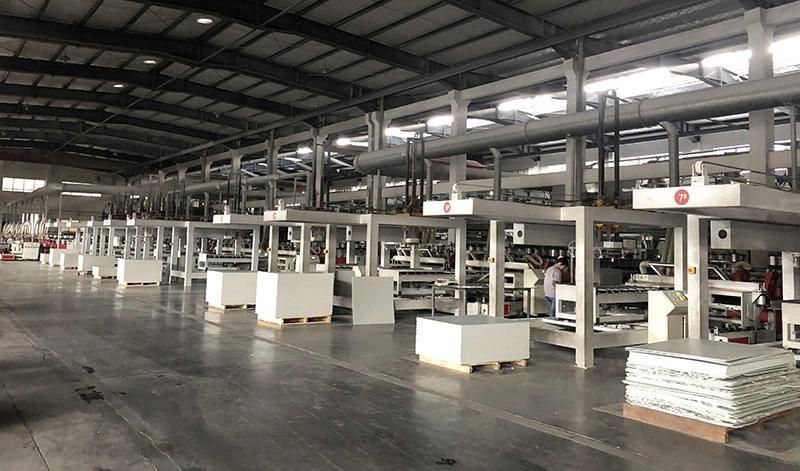

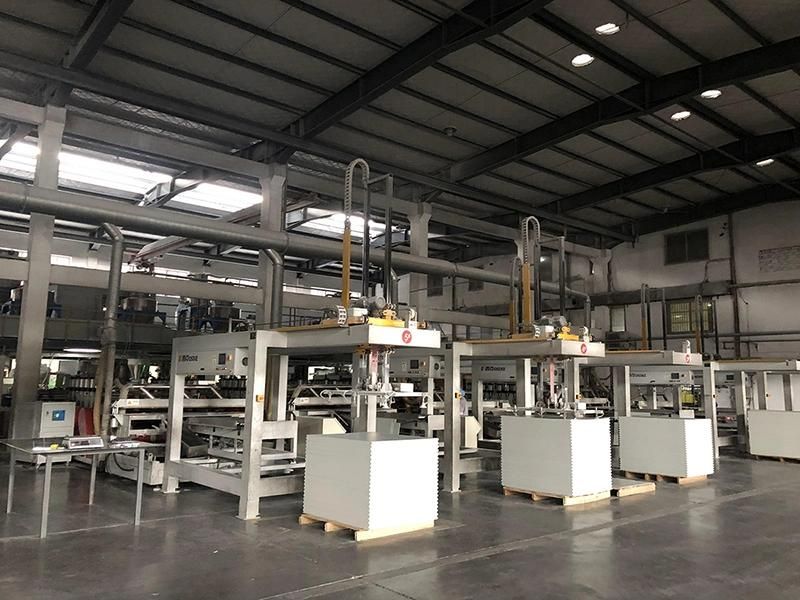

VII. Project Case
VII. Boyu Company Profile
VIII. Patents Certificates
BoYu On-line EIR Technology - United States Patent
BoYu On-line EIR Technology - Europe & Taiwan Patents
