• Model NO.：LMSB-150,35
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sgeet Layer Numbers：Single Layer or Muti-Layer Sheet
• Max Capacity(Kg/H)：300kg,H
• Main Motor Power：110kw
• Main Motor Parts：ABB Omront LG Simens etc.
• Width of Sheet：1000mm
• Thickness of Product：0.5-2mm
• Delivery Date：30-50days After Your Down Payment
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：CE ISO9001-2008, GOST, SGS
• Trademark：Leader Machinery
• Origin：Qingdao, Shandong, China
• HS Code：8477209000
• Production Capacity：5 Set,Month

Basic Info.

Model NO. LMSB-150/35 Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Sgeet Layer Numbers Single Layer or Muti-Layer Sheet Max Capacity(Kg/H) 300kg/H Main Motor Power 110kw Main Motor Parts ABB Omront LG Simens etc. Width of Sheet 1000mm Thickness of Product 0.5-2mm Delivery Date 30-50days After Your Down Payment Transport Package Wooden Case or Other Moistureproof Packages Specification CE ISO9001-2008, GOST, SGS Trademark Leader Machinery Origin Qingdao, Shandong, China HS Code 8477209000 Production Capacity 5 Set/Month

Product Description

thermoforming pbt/pet sheet extrusion line pet sheet machine
This extrusion line is specially designed for PET mono or multi-layer sheet production. .PET sheets produced by this line can be processed to be all kinds of packing products, which have good air lock without any other additives, pure sanitation, good toughness and extension, good recycling feature etc. That is widely used in electrical equipments, toy, food, and medicine packing and in the field of printing.

The technology of "single screw extruding with low dew-point dehumidifying system" for high quality products in high transparency without bubble, which will be very important for the thermoforming.

Raw Material:
1. can be virgin plastic pet material
2. can be recyclable material, like PET Bottle Flakes

Packing  and  delivery:
packing terms : wooden cases with vacuum film
Delivery: 30-50 days after customers' down payment

Components of the machines:
1. Vacuum feeding machine  1 set
2. High efficieny single screw extruder  1 set
3. hydraulic exchaning unit   1 set
4. melting pump  1 set
5. T-die head  1 set
6. Three roller calendars  1 set
7. Rollers thermoforming machine  1 set
8. Cooling frame and edge trimming unit  1 set
9. Cruhser online  2 sets
10. haul off machine  1 set
11. cutting machine-guillotine   1 set
12. Twin position sheet coiler  1 set
13. Water chiller  1 set
14. PET crystallizing drying system   1 set PART 7 COMPANY CERTIFICATIONS:

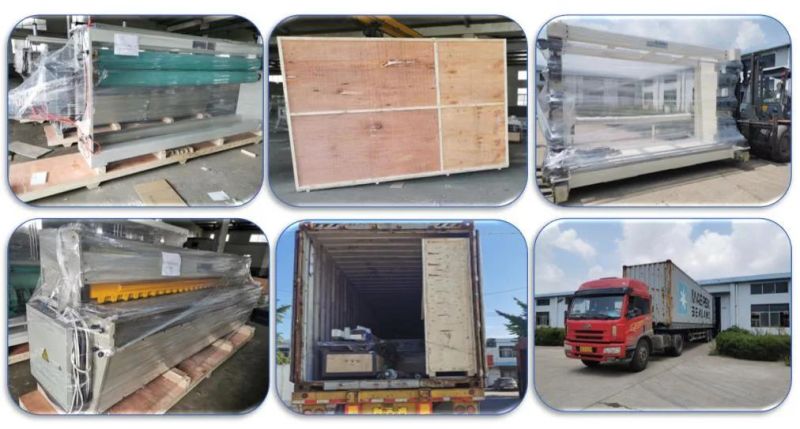

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 8 OUR RELIABLE SUPPLIERS:


PART 9 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:



PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
