• Model NO.：SK Series
• Computerized：Computerized
• Customized：Customized
• Certification：CE, ISO9001:2008, QS
• Condition：New
• Color：Customized
• Power：10-295kw
• Weight：5-20t
• Plastic Process：PP,PE,PA,PVC,PE-Rt,Pex,PVDF,ABS
• Voltage：380V ,220V Customized
• Usage：Waste Plastic
• Name：Plastic Recycling Granulator Line
• Raw Mateials：PVC PP PE PS PA Pet HDPE LDPE
• Type：Water-Ring Granulator Machine
• Strength：Long Life
• Machine Brand：Siemens
• Transport Package：Wooden
• Specification：20*1.5*10m
• Trademark：S&K
• Origin：Jiangsu
• HS Code：84778039
• Production Capacity：1000

Basic Info.

Model NO. SK Series Computerized Computerized Customized Customized Certification CE, ISO9001:2008, QS Condition New Color Customized Power 10-295kw Weight 5-20t Plastic Process PP/PE/PA/PVC/PE-Rt/Pex/PVDF/ABS Voltage 380V /220V Customized Usage Waste Plastic Name Plastic Recycling Granulator Line Raw Mateials PVC PP PE PS PA Pet HDPE LDPE Type Water-Ring Granulator Machine Strength Long Life Machine Brand Siemens Transport Package Wooden Specification 20*1.5*10m Trademark S&K Origin Jiangsu HS Code 84778039 Production Capacity 1000

Product Description

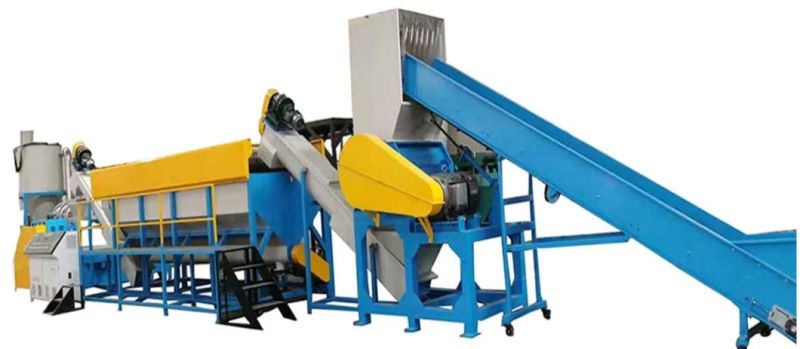

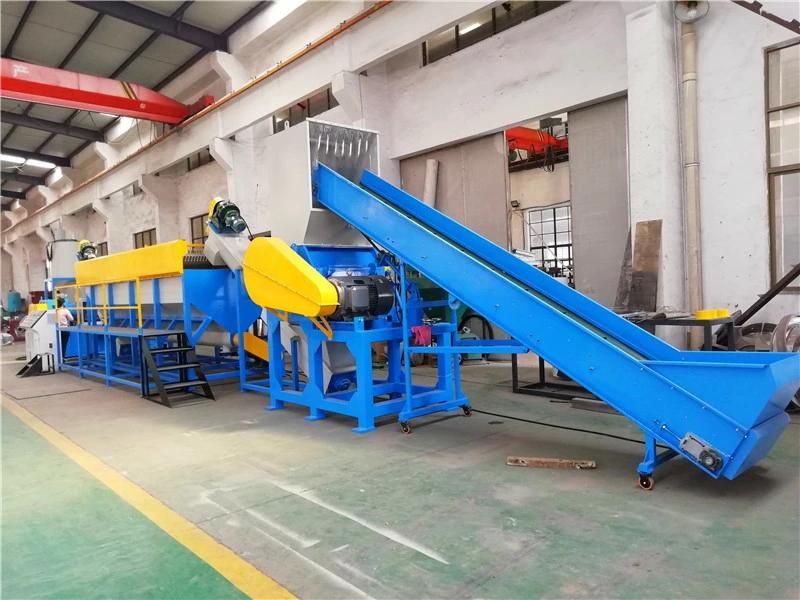

Cheap Price Hot Sale PE PP Film Recycling Washing Line

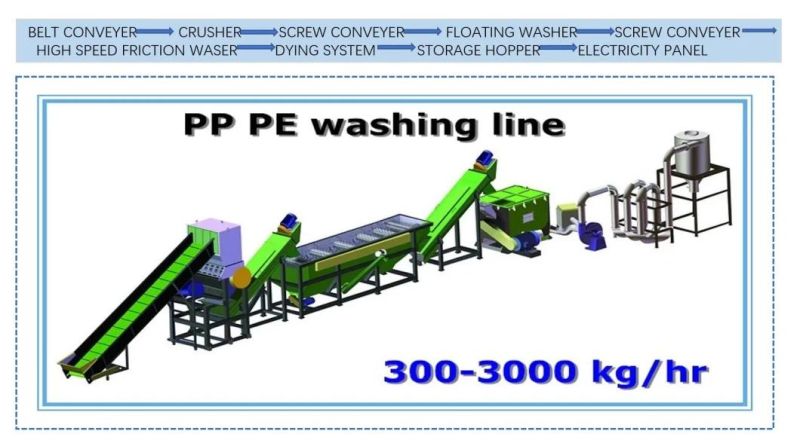

1. The whole line is flowing is : conveyer belt - crusher - Screw loader - floating - screw loader - frication machine - Screw loader - dewater - screw loader - hot pipe dryer.

2. The capacity can be supplized accroding to your requrement, such as : 300kg/h, 500kg/h, 800kg/h, 1000kg/h,1500kg/h, 2000kg/h

3. How many parts do you need is according to your require.such as floating ,you can use one set or two sets, and also three sets, this is up to how dirty of your raw material.

4. You can choose full automatic or half-automatic line

5. We have SGS certifcation, past CE certifcation.

6.  After drying the water content can reach 5-8% (according to the thickness of film).



* Each parts' function:
* 1 Bale conveyer -conveying the raw materials into the crusher machine.
* 2 Wet crusher -It will crush the material into small pieces 24hours/day without stop, crushing with water will cool the knives and clean the crushed film firstly.
* 3 Screw conveyer -Feeding the material into next step ,and rub the material.

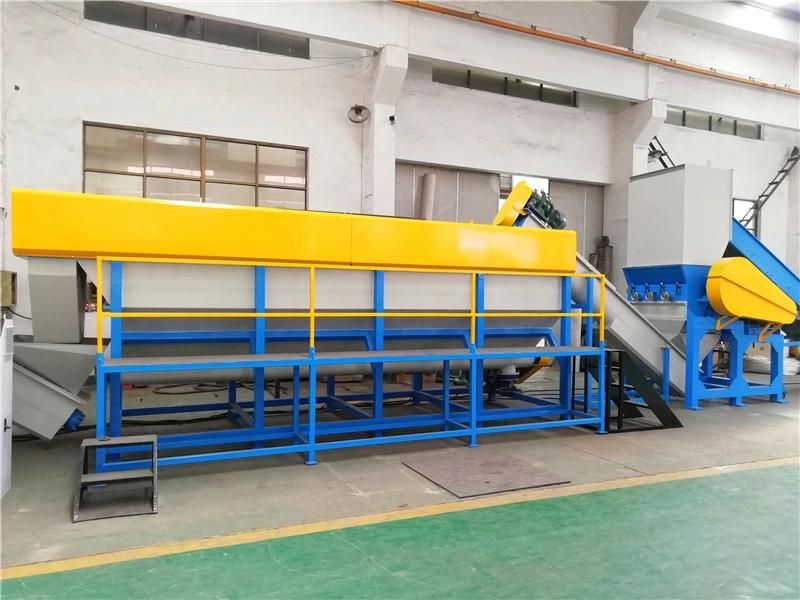

* 4 Floating washer -water will rinse material and separate sand from material.
* 5 Screw conveyer -Feeding the material into next step ,and rub the material.
* 6  High-speed friction washer -With water spraying, high speed rotation creates centrifugal force to strongly rub and wash material.

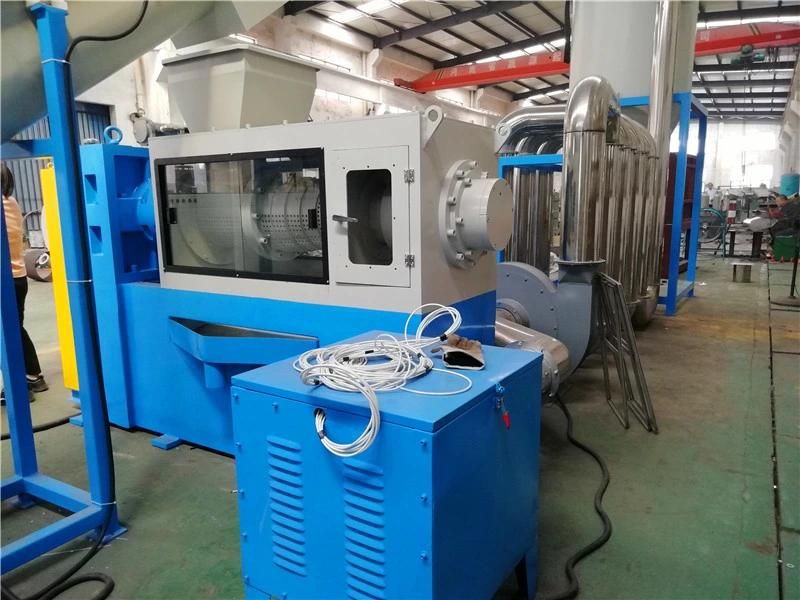

* 7  Drying system-Blowing the dry material into heating pipes, the hot air from heating box will also get into the pipes to dry the material.
* 8 Storage hopper -Collecting the clean film.
* 9 Electricity panel-Control the whole line.
waste pet bottle  lumps shredder customized plastic bottle recycling machine








Related  finished products

Our Services

Pre-sale :

We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals

In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard

After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.

• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.

• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.

Competitive Advantage:

1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.

2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.

S&K Machinery has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
