• Model NO.：MD-HH
• Machine Weight：2000kgs
• Certification：CE, ISO9001:2008
• Color：Green and White
• Max.Film Width：600-800mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：MINGDE
• Origin：China
• HS Code：8477209000
• Production Capacity：100sets,Year

Basic Info.

Model NO. MD-HH Machine Weight 2000kgs Certification CE, ISO9001:2008 Color Green and White Max.Film Width 600-800mm Transport Package Wooden Case Specification CE Trademark MINGDE Origin China HS Code 8477209000 Production Capacity 100sets/Year

Product Description

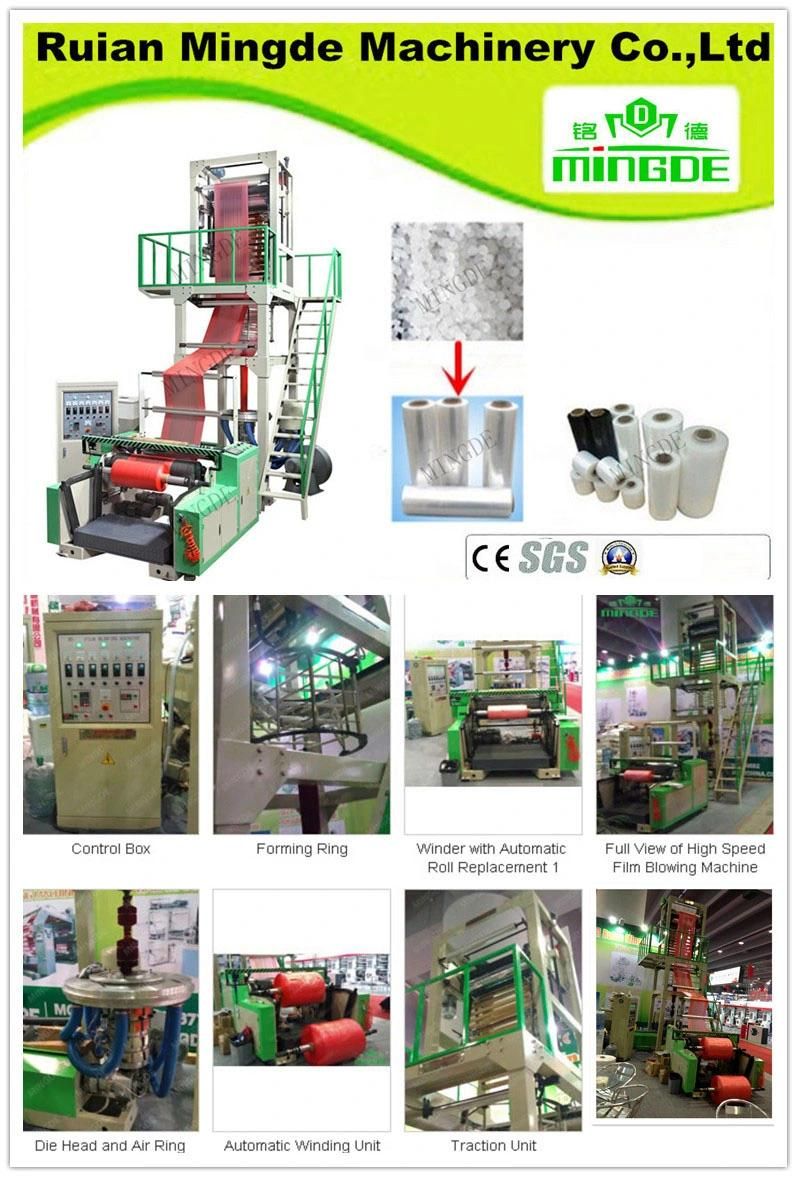

High Speed  polyethylene plastic film blowing machine price (MD-HH)

OPTIONAL DEVICE for High Speed  polyethylene plastic film blowing machine price:
1.auto loader
2.double winder
3.manual mechnica screen changer
4. automaticlly air supplier

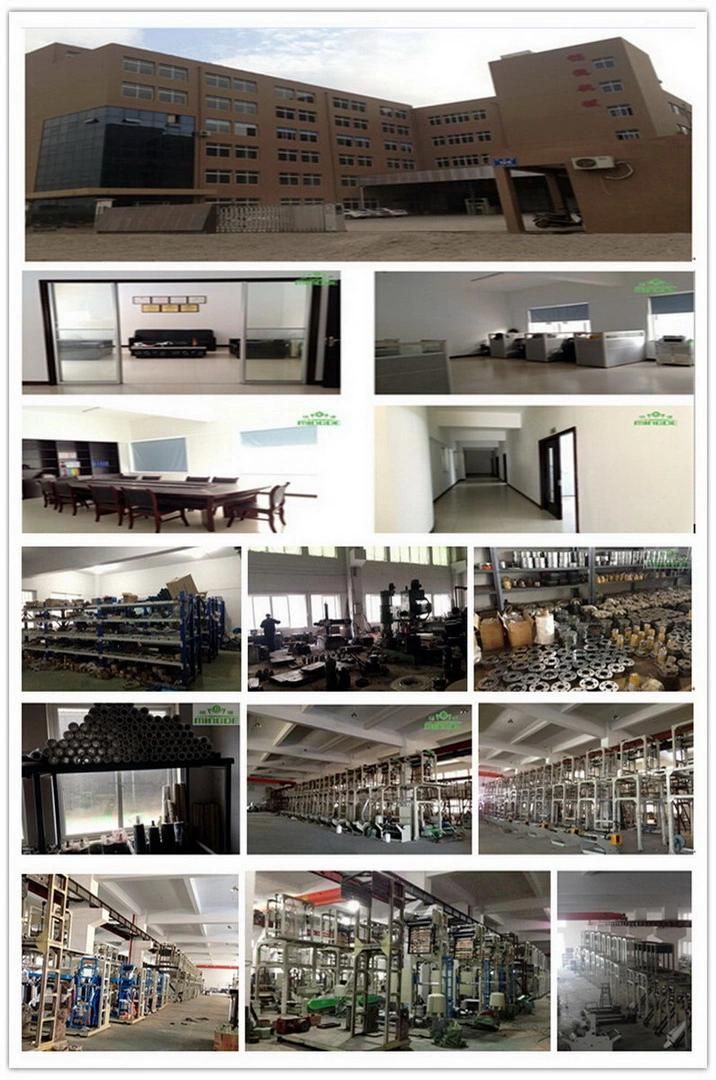

COMPANY AND WORKSHOP SHOW:
HIGH SPEED  polyethylene plastic film blowing machine price

    We deeply know that we cannot succeed without every client

 RUIAN MINGDE Machinery Co.,ltd.has been the symbol of high quality and excellent service in machiery areas for many years ,researched and developed our machines on basis of advanced technology introduced from developed countries.as a professional and experienced manufacturer in china ,we're able to produce many kinds of machines like film blowing machine,bag making machine,paper bag machine,packing machine,printing machine and leather & shoe machines,ect.

Have any require ,you could contact with us:

Add:No.168 Daohang Road Economic Development Industrial Zone Ruian Wenzhou,Zhejiang,China

Tel:+86-577-65166183

Fax:+86-577-65166189

Mobile:0086-15168715578

Model	MD-HH-50-600	MD-HH-55-800
Max.film width	300-600mm	300-800mm
Suitable material	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE
Max.output	50-70kg/hr	80kg/hr
Film thickness	0.008-0.10mm	0.008-0.10mm
Gear box	146	180
Screw diameter	φ50mm  from Zhoushan	φ55mm
Screw material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
L/D	30:1	30:1
Main motor	22kw	30kw
Main motor with inverter	22kw from  delta	30kw from delta
Barrel material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Barrel cooling	250w×2	370w×2
Barrel temperature control zone	3pcs	4pcs
Barrel heating	stainless steel	stainless steel
Die size	HD 100mm with fast screen changer	HD 80mm with fast screen changer
Die gap	1.25mm	1.25mm
Die and adapator temp.control	3pcs	3pcs
Die and adapator heating	stainless steel	Stainless steel
Air ring	600mm  HDPE dual air ring	600mmHDPE dual air ring
Fan	2.2kw with delta inverter adjust spped	5.5kw with delta inverter adjust spped
Traction roller with	φ165×700mm with embossing roller	φ165×850mm with embossing roller
Up traction motor	1.1kw	1.1kw
Up traction inverter	1.5kw from delta	1.5kw from delta
Traction speed	5-80m/min	5-80m/min
Wind type	PLC full automatic with flying knife after changing paper core. PLC from MITSUBISHI	PLC full automatic with flying knife after changing paper core PLC from MITSUBISHI
Wind motor	1.5kw	1.5kw
Wind inverter	1.5kw from delta	1.5kw  from delta
Wind speed	5-80m/min	5-80m/min
Down traction motor	0.75kw	0.75kw
Down traction inverter	0.75kw from delta	0.75kw from delta
Traction speed	5-80m/min	5-80m/min
Alumimum width	650mm	850mm
Power consume	31kw	35kw
Machine size	3800×2050×4000mm	5000×1800×4200mm
