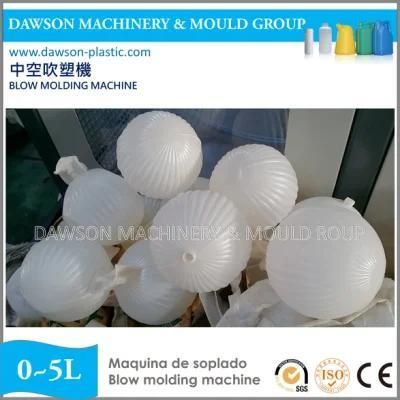

Automatic Plastic Molding Machine with Toggle Type for Colorful Sea Balls
Zhangjiagang Dawson Machine Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：ABLB80II
- Station Number：Double
- Output Capacity：720-800PCS,H
- Condition：New
- Max Product Volume：12 Liters
- Screw Diameter：80mm
- Company Attribute：Manufacturer
- Guarantee Time：1 Year
- Delivery Time：70days
- Export Port：Shanghai
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Screw L/D Ratio：25 L,D
- Screw Drive Power：30 Kw
- Screw Heating Capacity：16kw
- Output of HDPE：100 Kg,H
- Clamping Force：210 Kn
- Transport Package：Film Packing
- Specification：ABLB80II
- Trademark：Dawson
- Origin：Zhangjiagang, Jiangsu, China
- HS Code：8477301000
- Production Capacity：up to Product
Description
Basic Info.
Model NO. ABLB80II Station Number Double Output Capacity 720-800PCS/H Condition New Max Product Volume 12 Liters Screw Diameter 80mm Company Attribute Manufacturer Guarantee Time 1 Year Delivery Time 70days Export Port Shanghai After-Sales Service Provided Engineers Available to Service Machinery Overseas Screw L/D Ratio 25 L/D Screw Drive Power 30 Kw Screw Heating Capacity 16kw Output of HDPE 100 Kg/H Clamping Force 210 Kn Transport Package Film Packing Specification ABLB80II Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to ProductProduct Description
ABLB80II
Full-automatic Blow Molding Machine is specially designed for plastic water bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over5Liters.
Double station and tripple die head design is very easy to operate and maintain.Most components of the blow molding machine are from world famous brand.
| Max. Product volume | 12Liters |
| Out put capacities | 720~800pcs/h |
| Screw diameter | 80mm |
| Screw L/D ratio | 24L/d |
| Screw drive power | 37kw |
| Screw heating capacity | 8-9kw |
| Heating zones | 4zones |
| HDPE output | 120kg/h |
| Oil pump drive power | 11kw |
| Clamping force | 100kn |
| Mold max size | 400*550mm |
| Mold stroke | 170-520mm |
| Max die diameter | 200mm |
| Blowing pressure | 0.8mpa |
| Air volume | 1m³/min |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90L/min |
| Machine size | 4.4*2.2*2.7m |
| Machine weight | 8.5ton |
