• Condition：New
• Model NO.：KBLF-32-I
• Total Power：80kw
• Transport Package：Standard Packing
• Specification：16-32mm
• Trademark：kebeln
• Origin：China
• HS Code：8477209000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. KBLF-32-I Condition New Total Power 80kw Transport Package Standard Packing Specification 16-32mm Trademark kebeln Origin China HS Code 8477209000 Production Capacity 1000PCS/Year

Product Description

1. Performance & Advantages:
PVC four pipes extrusion line has its advantage of high production capacity. Comparing with the common extrusion line, this PVC four pipes extrusion line has much less investment at equipment cost, factory investment and production investment. PVC four pipes extrusion line has high capacity with less production consumption.


1). Production pipe range: 16-32mm

2). Total installation power: 80kw

3). Production capacity: 70% higher than common PVC two pipe extrusion plant.

4). Power consumption: Less power consumption in cutter part.

5). Noise: Less noise during normal production.

6). Dust pollution: There is no dust pollution from this extrusion line, as the cutter is equipped with saw cutting and automatical cylinder.

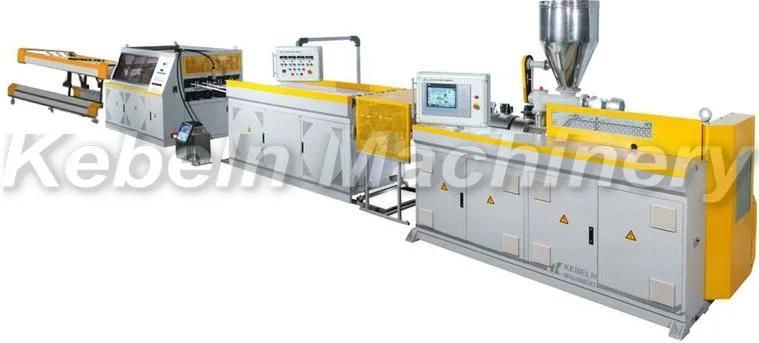

2.Pictures for reference:

3. Technical parameters of PVC pipe extrusion line

screw diameter(mm)	65/132
quality of screw(pcs)	2
screw direction	opposite outward rotation
speed of screw rotation(r/min)	1-36
effective length of screw(mm)	1430
structure of screw	conical mesh
motor power(kw)	37
total power(kw)	100
max. capacity(kg/h)	250-300
quantity of barrel heating(pcs)	4
heating method	cast aleminum heating+ceramic heating
center height(mm)	1000
weight(kg)	3200
dimension(L*W*H)(mm)	4500*1500*2400
