Lubricant Oil Bottles Automatic Extrusion Blow Molding Machine
Zhangjiagang Dawson Machine Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：ABLB65I
- Station Number：Double
- Material：HDPE ,PE,PP,PC,LDPE
- Max Product Volume：5liters
- Energy Saving：Seivo Motor
- Clamping System：Toggle
- Application：Medical Bottle,Chemical Bottle,Cosetic,Cruet
- Products：Soy Cruet,Toys,Vesels,Pots,Can,
- Oil Pump Drive Power：7.5kw
- Mold Stroke：330*370mm
- Machine Weight：5.5ton
- Water Consumption：50L,Min
- Cooling Water Pressure：0.3MPa
- Air Volume：0.6m³,Min
- Blowing Pressure：0.6MPa
- Max Die Diameter：160mm
- Transport Package：Film Packing
- Specification：ABLB65I
- Trademark：Dawson
- Origin：Zhangjiagang, Jiangsu, China
- HS Code：8477301000
- Production Capacity：4320PCS,Day
Description

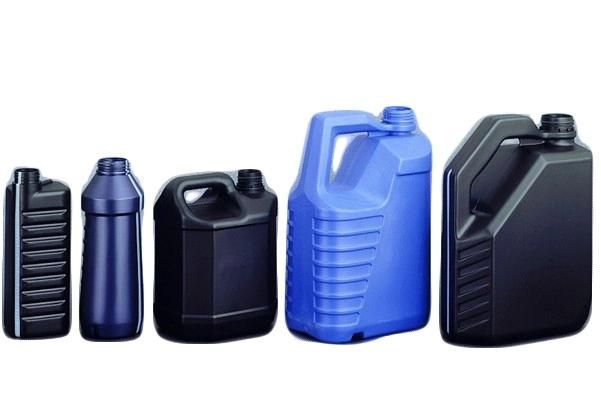

1. Suitable products
0~5L HDPE, PP bottles
Applications: Milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.
2. Station
This machine can be double station or single single station, depends on your output demands.
3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head.
Single die head (2~5L)
Double die head (0~2L)
Changing the die head system takes around 1.5~3h, this also included heating time.
