• Model NO.：SJ
• Machine Weight：Depend on Machine Size
• Certification：CE
• Film Type：LDPE, HDPE
• Machine Name：Blown Film Extrusion Machine
• Certificate：CE,SGS
• Ship：by Sea
• Transport Package：Film Packing
• Specification：CE, SGS
• Trademark：BINHAI
• Origin：Ruian City, Zhejiang, China
• HS Code：8477309000
• Production Capacity：320 Sets,Year

LDPE Film Blowing Machinehttps://youtu.be/sj0X0LM8Bzc Water melt Film Blowing machinehttps://youtu.be/xMjVDsnikEM3 Meter Single screw Film Blowing machinehttps://youtu.be/i8sF06INOGYABC film blowing machinehttps://youtu.be/gwe-JvruTikFour Lines T shirt bag machine (Cold cutting)https://youtu.be/Kzt0U3c50uQTwo Lines t shirt bag machine (Heat cut)https://youtu.be/FeOV_8cuOJ4OPP /PE Bag Making Machinehttps://youtu.be/P24YpQ5A0aM8 Colors Flexo Printing Machine https://youtu.be/PgjX400mqP8

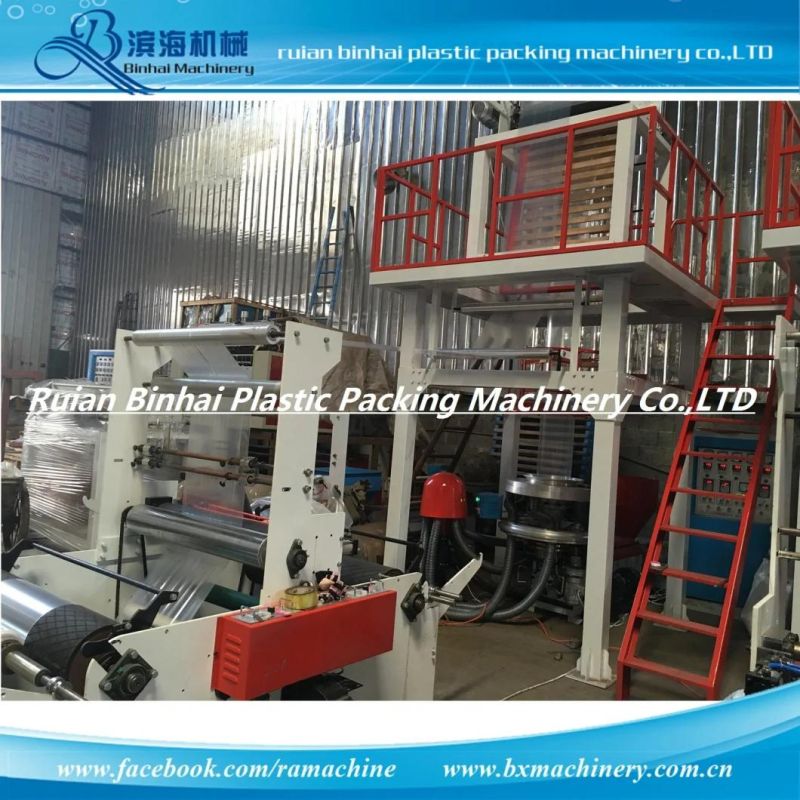

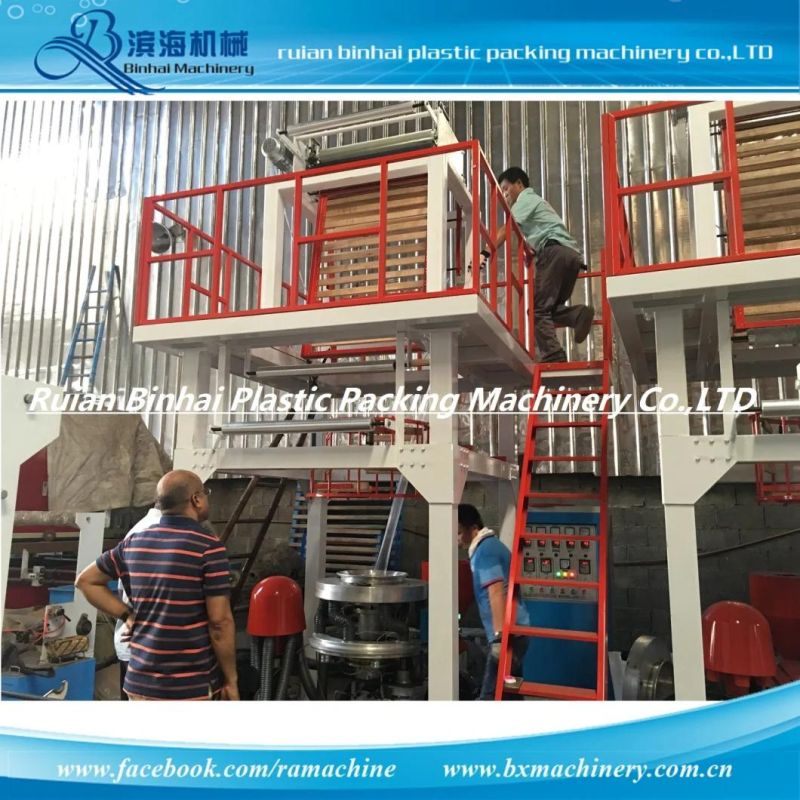

LDPE / HDPE Rotary Die Head  Film Blowing Machine

1.certificate: CE
2. high quality with the most competitive price
3.make special accoring to the client requirment
4. Rotary dIe Head. double rewinder


Use:

It is used for blowing the various plastic film of low density polyethylene (LDPE), high density polythylene(HDPE) and linear low density polyethylene(LLDPE) etc. Which are widely used for packing liquid industrial products garment and textile, etc. And printing lamination.

Characteristics:

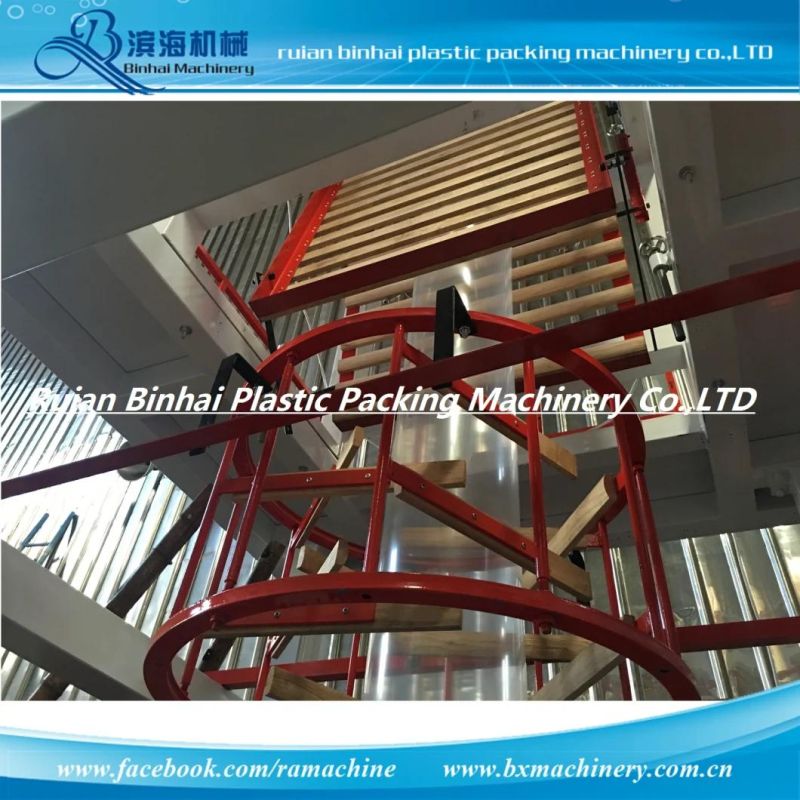

The cylinder and the screw stems of the extruder are made of high quality alloy steel with optimum hardness and strong corrcsion resistance after ntrogen treat- ment and precision finishing. The auxllary machine has a plat from working table for making operation easy and is equipped with bubble stabillzing ring. Double- rolling and double cutting unit adopts torque motor to motor to keep proper tension and make even and roll-changing easy.




Model	SJ-50	SJ-55	SJ-60	SJ-65-1
Screw Diameter	50mm	55mm	65mm	65mm
Screw Ratio(L/D)	28: 1	28: 1	28: 1	28: 1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	11Kw	15Kw	22Kw	22Kw
Max Output	30-35kg	40-50kg	55-60kg	60-70kg
Max. Folding Width of Film	600mm	800mm	1000mm	1200mm
Single-sided Thickness of Film	0.008-10mm	0.008-10mm	0.008-10mm	0.008-10mm
Total Power	22Kw	26Kw	30Kw	36Kw
Weight of Machine	2T	2.3T	2.6T	3T
Overall Dimensions	4000 x 1800 x 4600mm	4200 x 2000 x 4900mm	4600 x 2300 x 5600mm	4800 x 2500 x 5800mm

 standard configure:

9	Barrel and screw material: 38 chrome-molybdenum aluminum, nitrogen treated

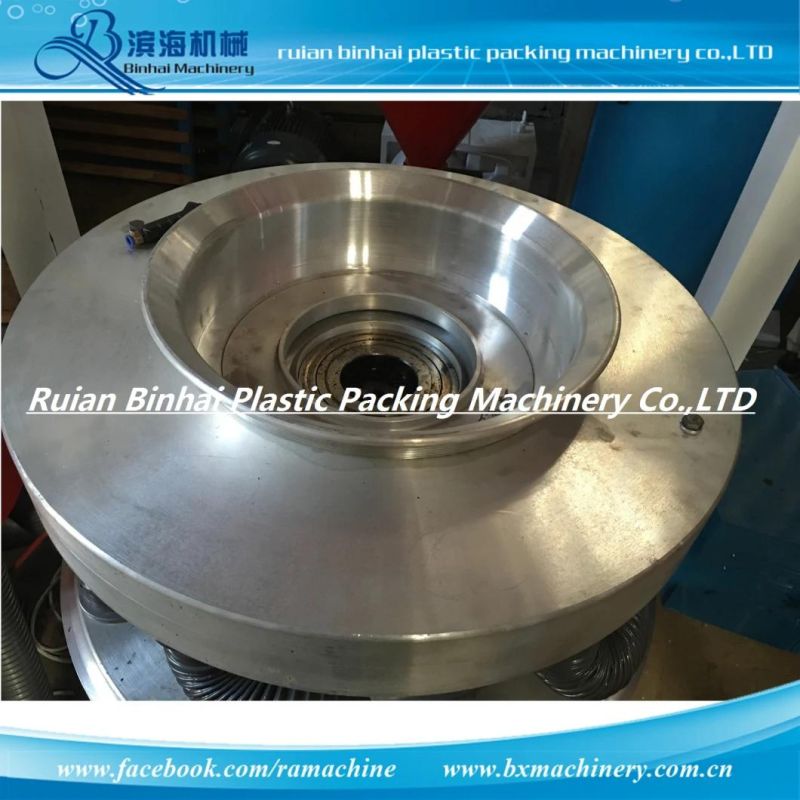

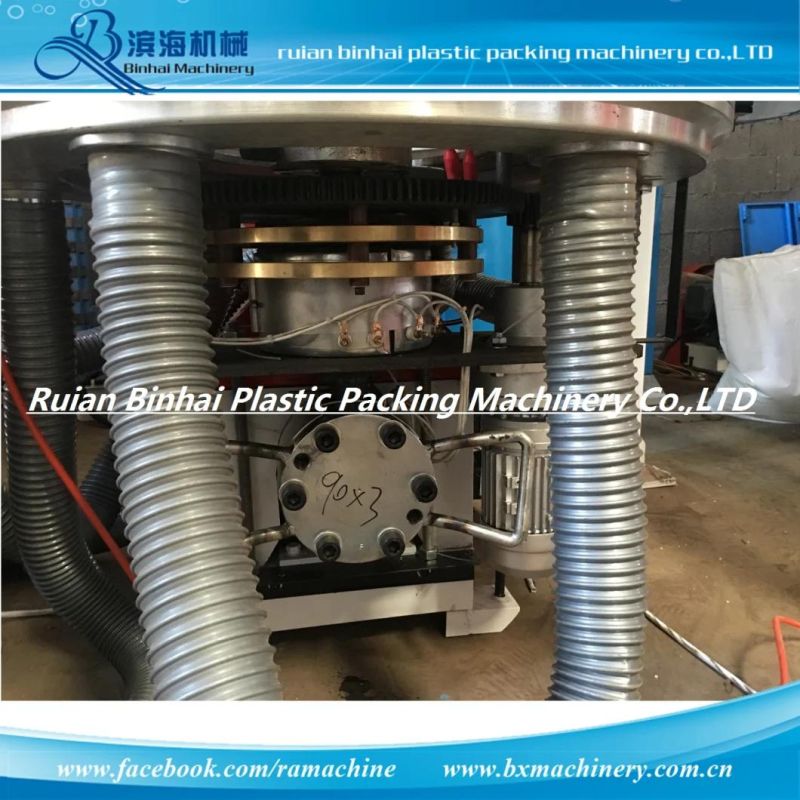

10	Rotary die device: Continuous 360 degree rotation
11	Gear box: water cooling reducer, hard tooth surface
13	Double   winder   ( with banana roller, cold knifes for cutting edges of the film and middle of film 3pcs )
14	counter of metric (Length Counter, speed display)
15	Main motor: WN brand motor  CHINESE BRAND INVERETER (optional Yasyawa etc. )
16	Heating ring: cast aluminum
18	Air compressor
19	winder motor: torque motor
20	Embossing roller
21	Gusset device
22	UP AND DOWN DEVICE
23	Waste collection device

Making Plastic Bags need 2-3 sets machine , If don't need color, 2 sets .


First Machine :  PE  Film Blowing Machine :

---- What's your products size
---- Products need print not
---- Film need slit not
---- Single Layer, Two Layer or Three Layer  ?

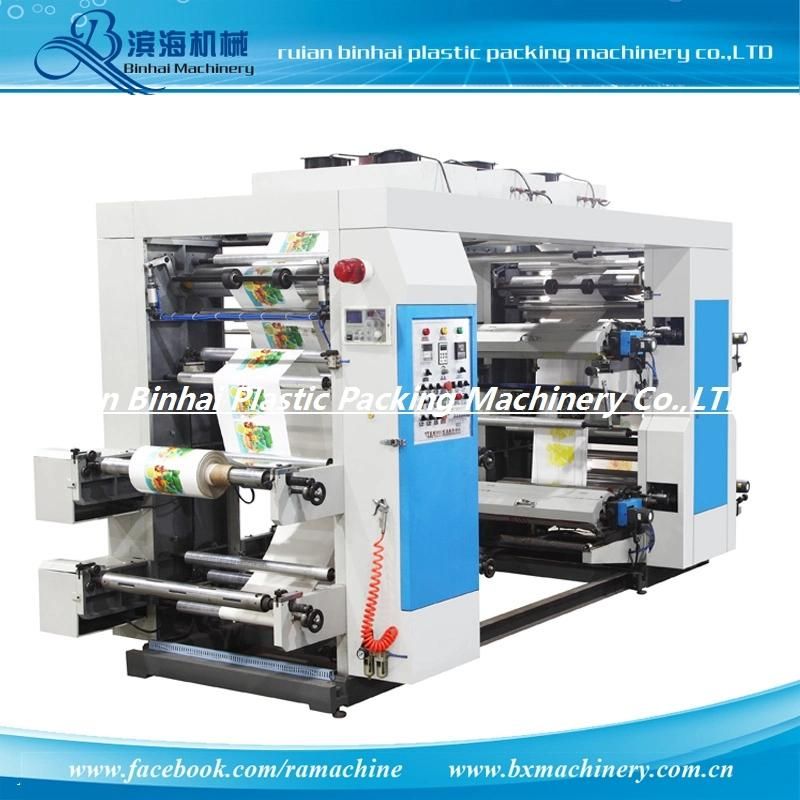

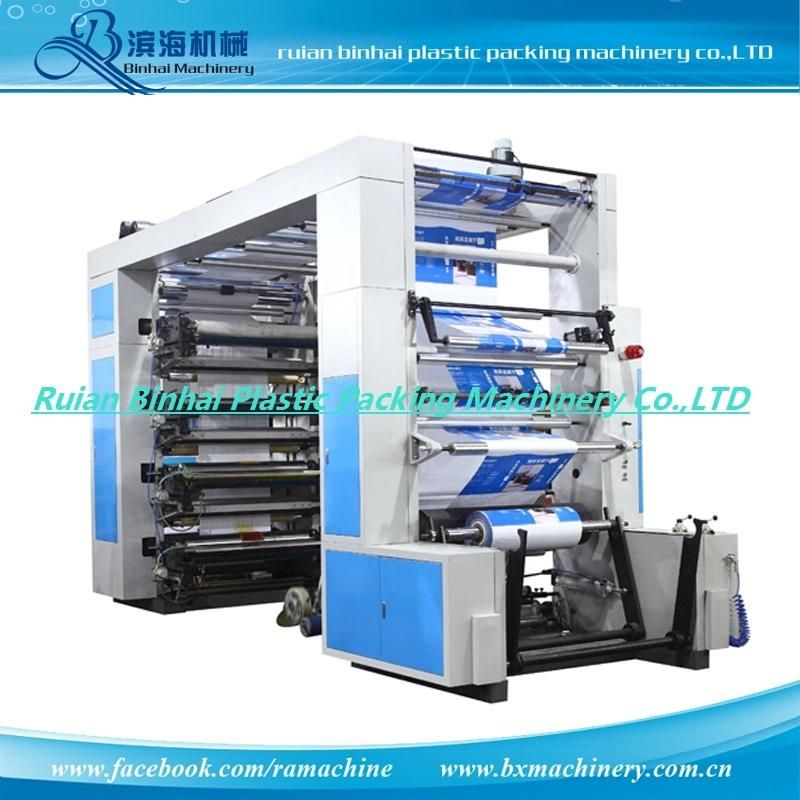

Second Machine : Flexo Printing Machine : ( If your bags is blank , not need this machine ):
we also have Printing machine online with Film blowing machine .


---- What's size of your Raw material Film roller
---- How many colors you want ?
---- Speed ?  50m/min , 80 m/min or 90 mpm .






Third Machine : Bag Making Machine :
( we have many different kind machines to make different bags )

---- What kind bags you want to produce ?  better show us pictures.
---- What's your Bag size.
---- Have printed Logo Not .














shipping & Package




The End , thanks for your reading .
