• Model NO.：Refrigerator
• Painting：Variety of Coating Solutions
• Transport Package：Standard Seaworthy Packing(Wooden Box, Nude Pack)
• Trademark：3E
• Origin：China

Basic Info.

Model NO. Refrigerator Painting Variety of Coating Solutions Transport Package Standard Seaworthy Packing(Wooden Box/ Nude Pack) Trademark 3E Origin China

Product Description

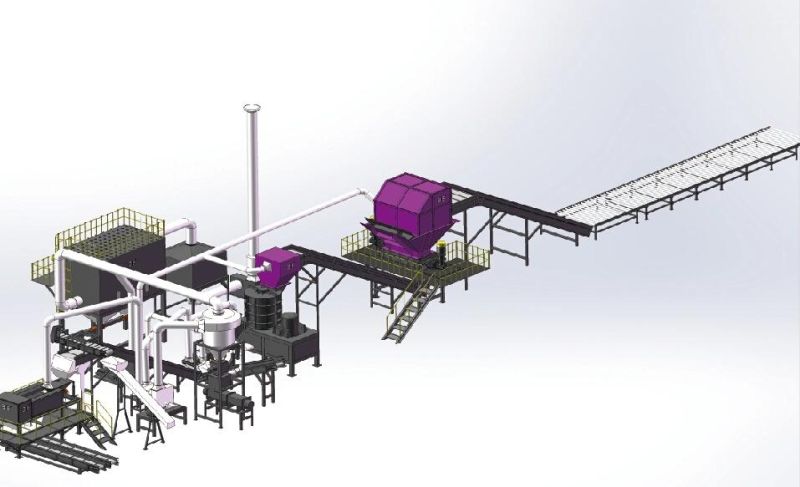

The Waste Refrigerator Recycling Line from Guangzhou 3E Machinery Company is designed to process large volume waste refrigerators. The design for
the recycling line is unique and the separation effect is high. It has already acquired the national patent (ZL2017 1 0005788.9). It is good for environmental
protection and safety production and the output material, dust and exhaust air will be processed by individual ventilation system.

Main Parameter:
Production Capacity: 50-60  units/hour
                        80-100 units/Hour
metal separation rate>98%
plastic separation rate >97%
plastic contain foam rate≤1.5%
Foam contain plastic rate≤3%
1. Low power consumption. The separation and crushing

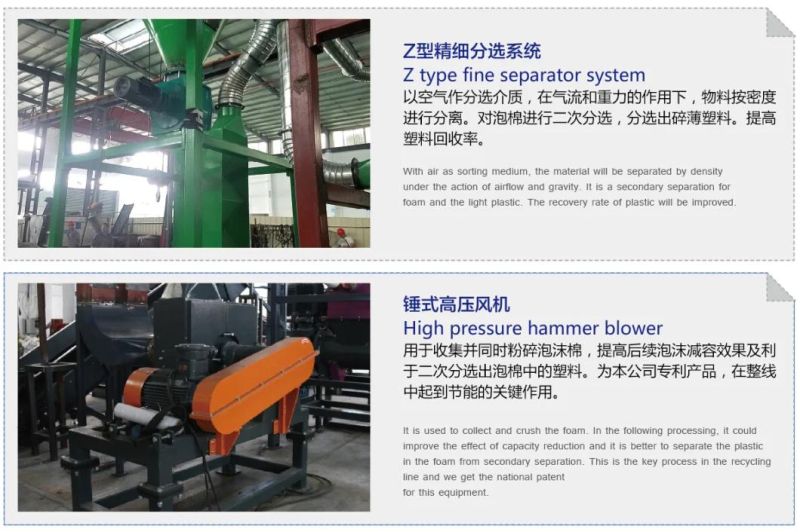

for foam will be finished by high pressure hammer blower
which is self-developed patented equipment.
2. metal density ≥0.8T/M3 the output size of crushed
material is average and separation effect is good.
3. Foam volume reduction rate1:8 reduce the volume by
hydraulic pressure, the foam will not get heat avoiding fire risk.
4. It is very suitable for recycle large volume refrigerator and
freezer and separate most part cables automatically.
5.Unique design with national patent (ZL2017 1 0005788.9).







Safety production:
1.It is good for environmental protection and safety production
because the output material, dust and exhaust will be processed
by individual ventilation system.
2.Equipping with nitrogen generator and could make sure to
avoid flash explosion due to the alkenes gas accumulate at
the two shaft shredder operation.
3. Equipped with flammable gas detector and designed with
fire detection alarm, spray and automatic shutdown equipment
and other safety settings.
4. It could meet the customer's requirement to reach remote
monitoring and it is easy to running and maintenance.
