• Model NO.：HY-61,62
• Processing Type：Plastic Thermoforming Machine
• Product Type：Plastic Packaging
• Max Forming Area：510*580mm
• Max Forming Depth：100mm
• Speed：720-1200cycles,Hr
• Place of Origin：Zhejiang China (Mainland)
• Voltage：380V 50,60Hz
• Dimension(L*W*H)：4150*1150*2160mm
• Transport Package：Wooden Packing
• Specification：CE
• Trademark：HongYin
• Origin：Zhejiang Ruian
• HS Code：84774090
• Production Capacity：150-200kg,H

Basic Info.

Model NO. HY-61/62 Processing Type Plastic Thermoforming Machine Product Type Plastic Packaging Max Forming Area 510*580mm Max Forming Depth 100mm Speed 720-1200cycles/Hr Place of Origin Zhejiang China (Mainland) Voltage 380V 50/60Hz Dimension(L*W*H) 4150*1150*2160mm Transport Package Wooden Packing Specification CE Trademark HongYin Origin Zhejiang Ruian HS Code 84774090 Production Capacity 150-200kg/H

Product Description

I.Introduction With The Machine
HY-61/62 Semi-Automatic Plastic Thermoforming Machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface.It combines the material sending, heating, forming into one process.It has three operation models." manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.

1Forming area:610×620mm	2Forming depth:100mm
3Sheet thickness range:0.1-1.2mm	4Sheet roller diameter:710mm
5Semi-automatic: Yes	6Ari pressure:0.7Mpa
7Water consumption: Liters/min(15-20ºC)	8Air consumption:1800 Liters/min
9Speed:600-1500 Liters/min	10Power:3-N AC380V±10%  50HZ
11Preheater power:2kw	12Mould plate heating power:4.8kw
13Heating plate power:15kw	14Sheet width:650mm
15Weight:2000kg	16Dimension(L×W×H): 4150×1150×2160×(mm)

II.Application Area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III.Machine Picture

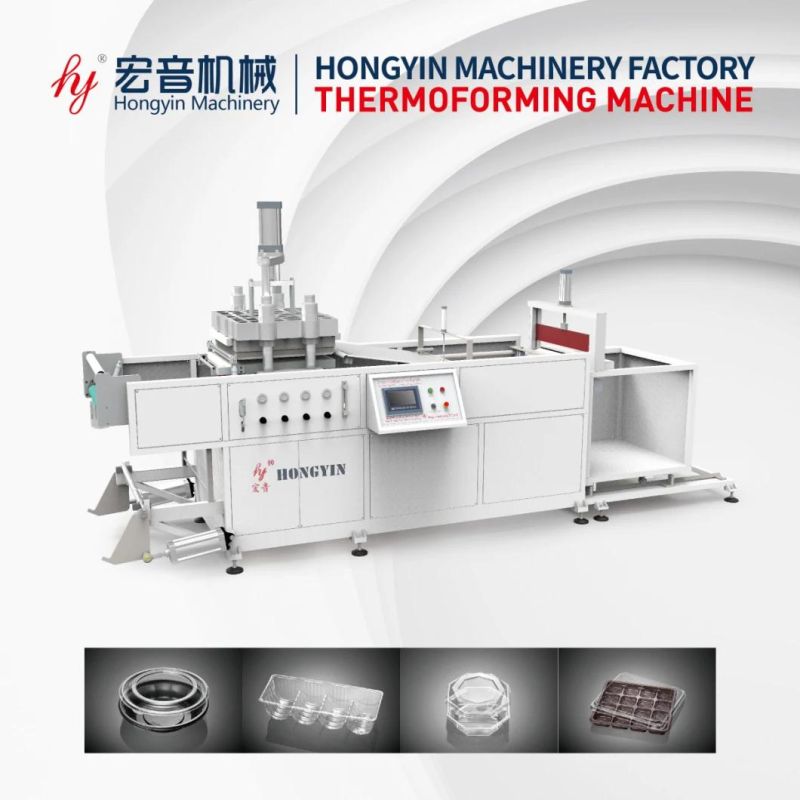

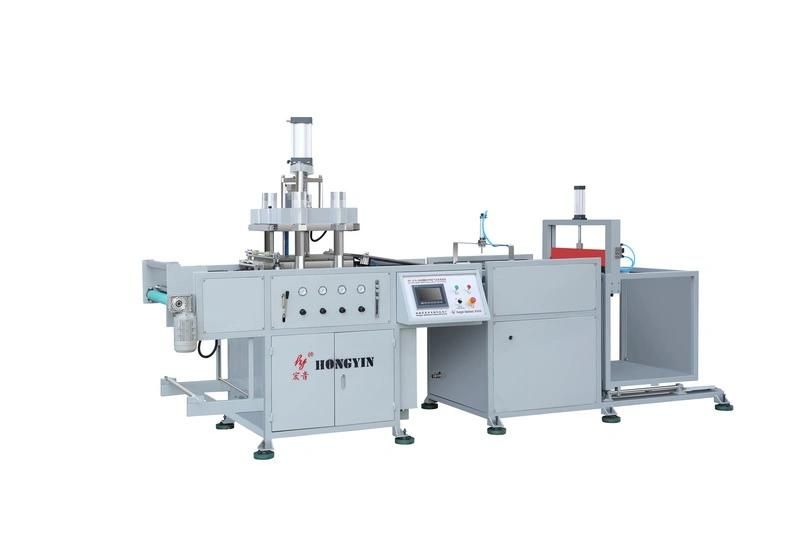

1The HY-61/62 plastic forming machine
The main forming machine need a alone cutting machine to finshed cutting edge .




3.HY-61/62 thermoforming machine products samples

IV.About Ruian Hongyin Machinery Co., Ltd Service.
1.Purchase Service
Ruian Hongyin Company have a specialize and efficiency working team.If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.

2.Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3.Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
