Plastic Machinery

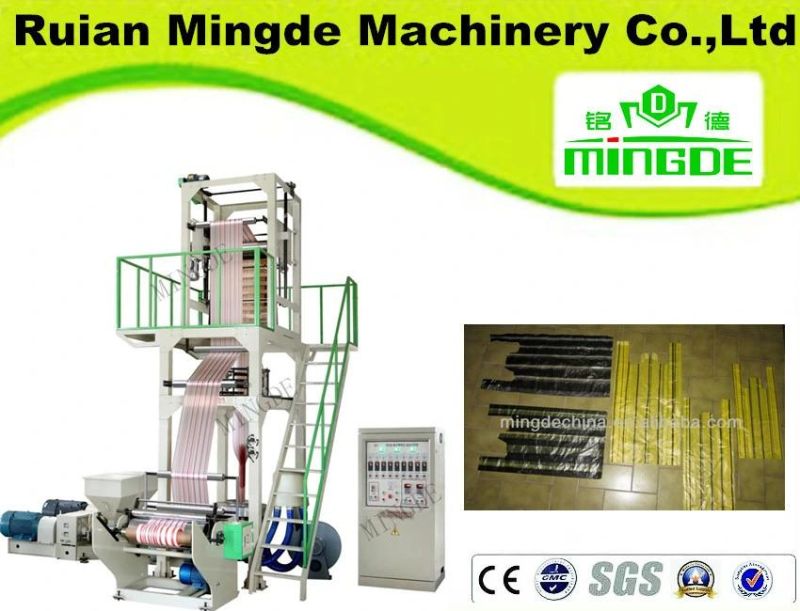

Plastic Blown Film Extruder Machinery

Ruian Mingde Machinery Co., Ltd.
  • Type:Dual-Color Film Blowing Unit
  • Raw Material:HDPE
  • Automation:Non-Automatic
  • Computerized:Non-Computerized
  • Certification:CE, ISO9001:2008
  • Color:Green and White

Base Info

  • Model NO.:MD-45X2-600
  • Transport Package:Export Standard Packing Type
  • Specification:CE
  • Trademark:Mingde
  • Origin:China
  • HS Code:8477300000
  • Production Capacity:100sets,Year


Basic Info.

Model NO. MD-45X2-600 Transport Package Export Standard Packing Type Specification CE Trademark Mingde Origin China HS Code 8477300000 Production Capacity 100sets/Year

Product Description

It is used for blowing various low density polyethylene(LDPE) and high density polyethylene(HDPE) color striped plastic film. Which are widely used for packing food, fruit, garments, texitle, daily necessities and other civil and industrial products.
The cylinder and the screw stem of model SJ-40X2-MD600 extruder are made of high quality alloy steel with optimum hardness and strong corrosion after precision finishing and nitrogen treatment. 600 auxiliary machine can be freely adjusted within the limits of 600mm according to the technological requirements of different materials, and has been fitted with a plug-in plate mechinaism for making vest bags. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll changing easy.
Model   SJ40X2MD600
Screw diameter   Φ 40
Film width(mm)   600
Film thickness(mm)   0.006-0.1
Screw speed(rpm)   10-110
L/D   28: 1
Main motor power(kw)   15
Heating power(kw)   20
Output(kg/h)   30
Machine size(mm)   5000× 2000× 4100
Machine weight(T)   3
Plastic Blown Film Extruder Machinery
