• Model NO.：SJ100
• Degassing：2( One Vacuum, One Natural)
• Pelletizing Way：Water-Ring Hot Die
• Delivery Time：45 Working Days
• Extruder：Two Stage
• Cooling Way：by Water
• Heater：Cost Al
• Transport Package：Film Packing and Wood Base or Wood Case
• Specification：pellets size Φ 2.5*3mm
• Trademark：JORBIN
• Origin：Zhangjiagang City
• HS Code：84772010
• Production Capacity：10sets,Year

Basic Info.

Model NO. SJ100 Degassing 2( One Vacuum, One Natural) Pelletizing Way Water-Ring Hot Die Delivery Time 45 Working Days Extruder Two Stage Cooling Way by Water Heater Cost Al Transport Package Film Packing and Wood Base or Wood Case Specification pellets size Φ 2.5*3mm Trademark JORBIN Origin Zhangjiagang City HS Code 84772010 Production Capacity 10sets/Year

Product Description



plastic flakes granulator is mainly used for rigid or hard crushed material, like van, bottle, cap and so on.

 If matched with different die heads and auxiliary machines,it also can make plastic production. There is several pelletizing way, such as water-ring pelletizing way; water-cooling pull strap pelletizing way(like noodles), wind-cooling rubs surface granulation way. Under-water granulation way.

Features: Well-proportioned, stable quality, high efficiency, high output, wide applicable range, long serving life.

Machine detail parameter

Item NO.	Item name	Quantity	Power
1	Feeder	1 set	1.5kw
2	Φ100/30 single screw extruder	1 set	55kw
3	Hydraulic screen changer system	1 set	1.5kw
4	Horizontal water-ring system	1 set	1.5kw
5	Centrifugal dryer	1 set	3kw
6	Electrical control box	1 set	_

The advantages of this machine

1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. High capacity: the capacity of the machine is about 300kg/h
4. Material come out more stably: material go through from the first stage to the second stage, with two screen changer, much more impurity will be filterd and the material come out from the die won't broken down.
5. Beautiful pellets: two degassing system, no air in the pellets.
6. The machine wih long life.

More machine photoes

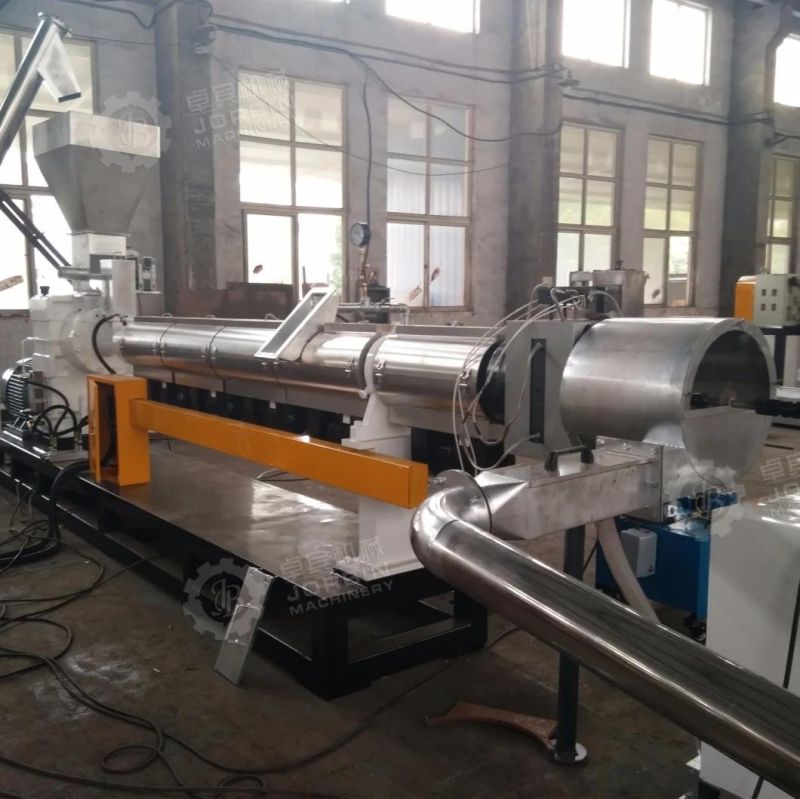

Extruder of the machine

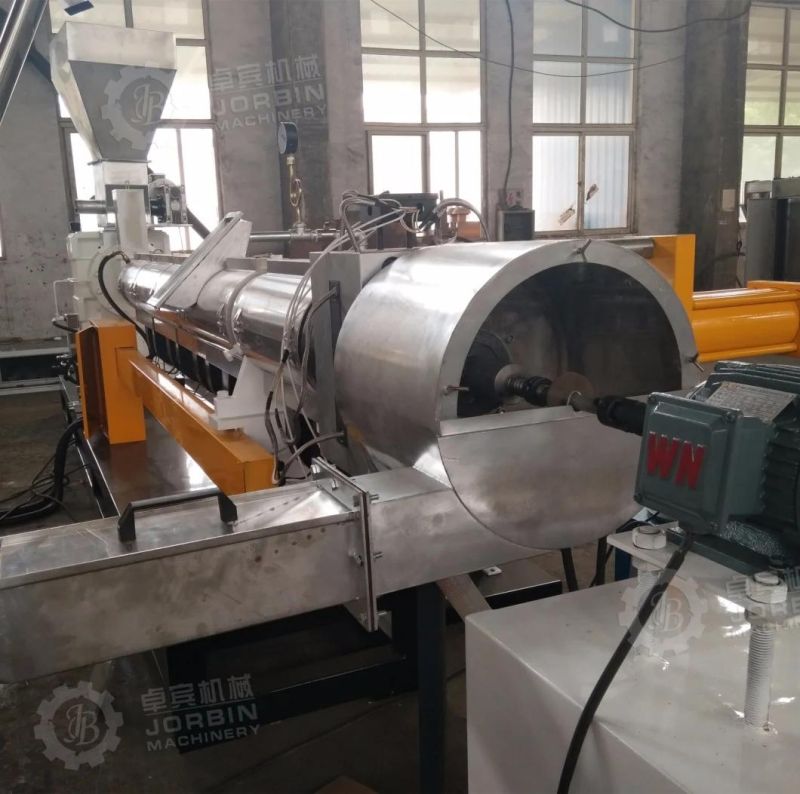

Machine with horizontal water-ring die face pelletizing way, if you like vertical water-ring die face pelletizing way, it's also possible, as our oppinion, for the small machine, horizontal water-ring die face will be better, it is easily to clean and change the cutting knives, but for the big machine, it's not so good, because it will be easy to shaking. the life will be short

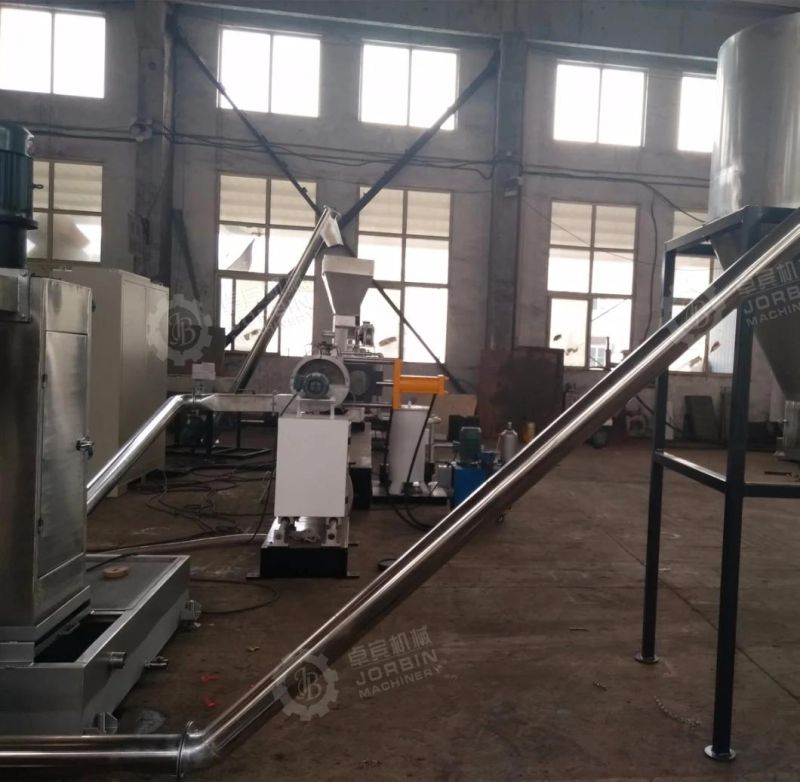

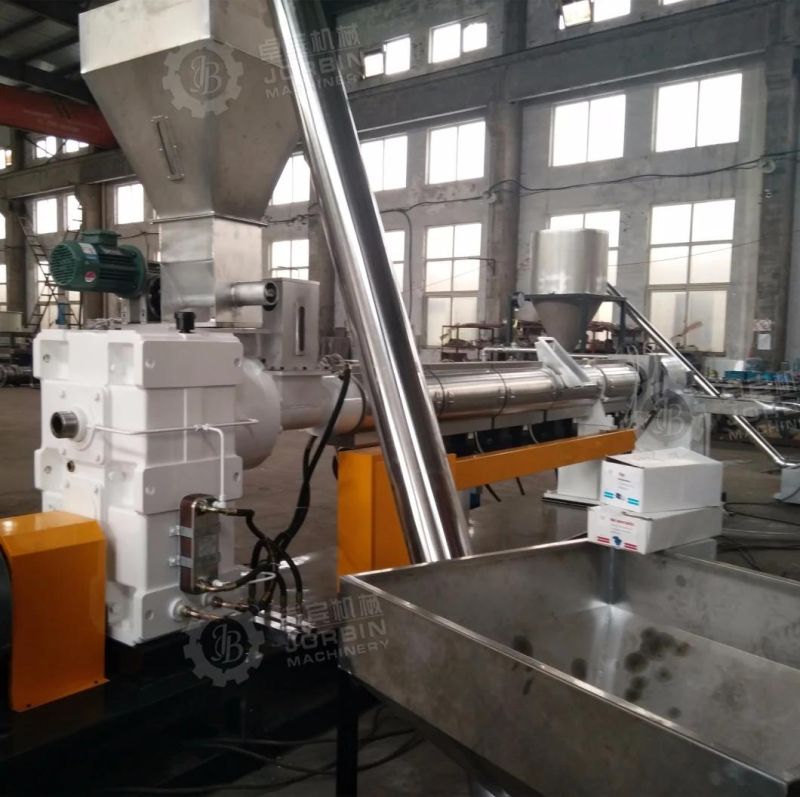

Rotary charger send the material into the feeder

from the die to Centrifugal dryer and silo

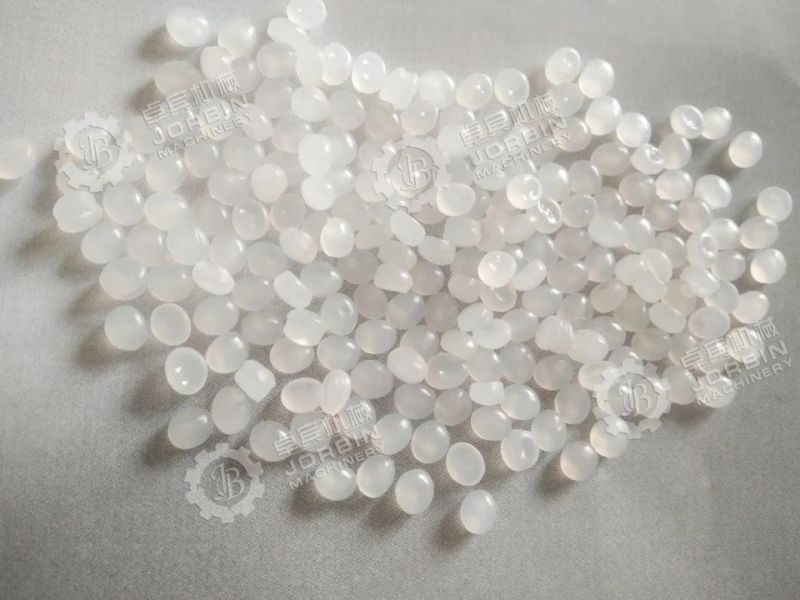

Finall pellets

If you need more photoes or viedo of this machine, kindly contact me.


1. We supply below necessary documents with the machine:

1. Machine layout
2. Electricity diagram
3. Machine certificate
4. General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.

4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.

5. 24Hours service :  Cell+86-13915707468
