Plastic Mannequin/ Desk Board and Playgroud Facilities Extrusion Blow Molding Machine
ZHEJIANG JWELL PIPE EQUIPMENT CO., LTD.- Type：Extrusion Blow Molding Machine
- Raw Material：PE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：BEK-BM30,50,100 blow molding machine
- Material：PE,PP
- Product Volume：30L-100L
- Screw Diameter：80, 90, 100
- Die Head Structure：Accumulating
- Station：Single
- Power：135kw
- Transport Package：Best Sea Transportion Package to Avoid Dama
- Specification：15-100L
- Trademark：Bekwell & Jwell
- Origin：Foshan & Suzhou
- HS Code：84774010
- Production Capacity：1000set,Sets Per Year
Description
Accumulating typeMain screw diameter Mm 80 90 100 Max plasticizing capacity (PE) Kg/h
150 180 190 Driving motor Kw 37 45 55 Accumulating volume L 5.2 6.2 12.8 Oil pump motor power Kw 15 18.5 22 Clamping force Kn 280 400 600 Space between platen Mm 400-900 450-1200 500-1300 Platen size W*H Mm 740*740 880*880 1020*1000 Max. mold size Mm 550*650 700*850 800*1200 Heating power of die head Kw 20 28 30 Machine dimension L*W*H M 4.3*2.2*3.5 5.6*2.4*3.8 5.5*2.5*4.0 Machine weight T 12 13.5 16 Total power Kw 95 110 135

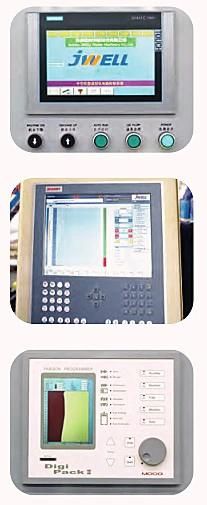

Different kind of Control system of machine
Parison wall thickness control system
No1.
human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 .
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 .
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

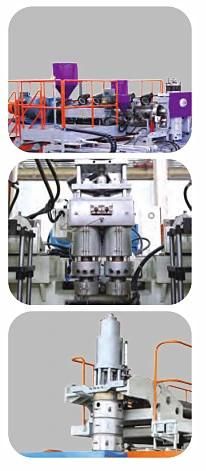

Extrution & Die head:
No1.The extruder uses screw and barrel, which is a famous brand"Jinhailuo" all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.

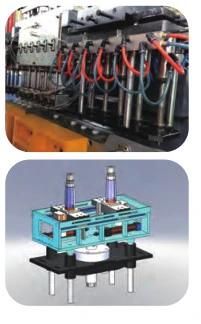

Blowpin system:
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system:
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system:
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy

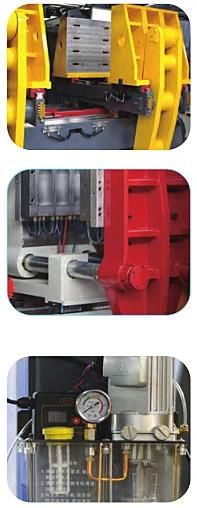

Open&Closing system:
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.

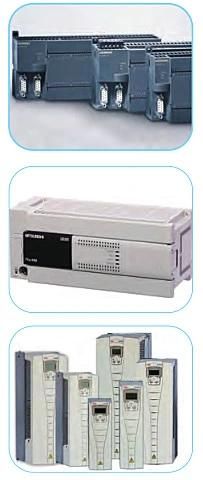

Electric system:
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
