Super Performance Spc Resilient Flooring on-Line Embossing Extrusion Production Line
Wuxi Boyu Plastic Machinery Co., Ltd.- After-sales Service：24*7
- Warranty：1 Year E for Mechanical Part
- Type：Sheet Extruder
- Plastic Processed：PVC,WPC,Spc,PP
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Model NO.：SJSZ180
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Voltage：220-415V , 50-60Hz 3 Phase
- Power：485-750kw Per Line
- Production Line Layout：60m (L) * 5m (W) * 8m (H)
- Calender：Five Roller
- Deliver Time：45 Days
- Plank Thickness：2-9mm
- T-Die：1050,1350
- Online Embossing：Better Than 95%
- Capacity：100t,24h
- Transport Package：PE Wrapping Film, Fumigating Wooden Cases.
- Specification：CE, SGS, UL, TUV, CSA, ISO
- Trademark：BOYU
- Origin：Wuxi, Jiangsu, China
- HS Code：8477209000
- Production Capacity：120 Sets Per Year
Description
Basic Info.
Model NO. SJSZ180 Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Voltage 220-415V / 50-60Hz 3 Phase Power 485-750kw Per Line Production Line Layout 60m (L) * 5m (W) * 8m (H) Calender Five Roller Deliver Time 45 Days Plank Thickness 2-9mm T-Die 1050/1350 Online Embossing Better Than 95% Capacity 100t/24h Transport Package PE Wrapping Film, Fumigating Wooden Cases. Specification CE, SGS, UL, TUV, CSA, ISO Trademark BOYU Origin Wuxi, Jiangsu, China HS Code 8477209000 Production Capacity 120 Sets Per YearProduct Description
The launch of a InnovationProven technology with a new product concept and an attractive price-performance ratio

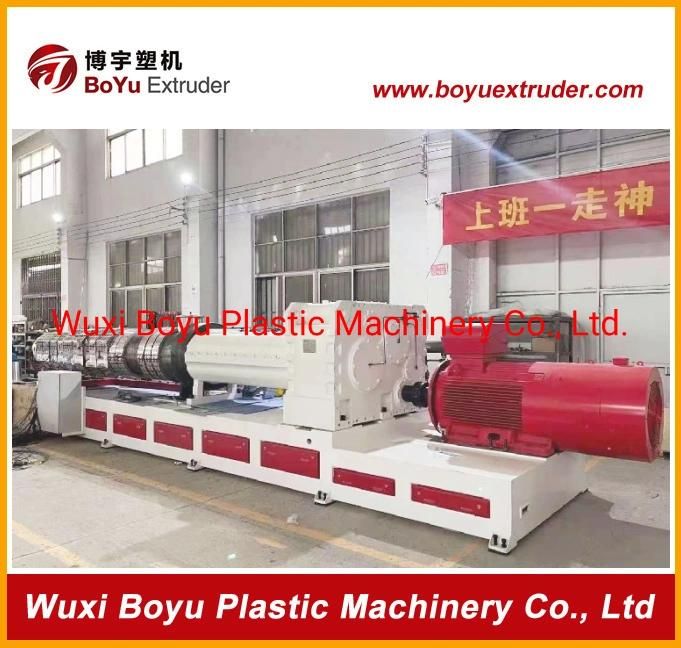

As SPC flooring equipment inventor, we Boyu Extruder are always keeping moving on new research and development. At the beginning of 2021, we have produced the new super output performance extruder SJSZ180, and firstly provided 6 sets to our good partnership customer. After several months successful operation, we now are in great confidence to launch these new productivity-enhancing to all of our customers and help them enjoy more BENEFITS.
- SAVE PLANT SPACE
- SAVE LABOUR COST
- SAVE ENERGY CHARGE
- SAVE SCREW COST
| Extruder Model | Capacity/24H | Capacity/H | Linear Speed | Power |
| SJSZ-180 | 80-100T | 3300-4000KG | 5-9m/min | 400KW |
| No. | Items | Data |
| 01 | Operation Conditions | 380V/3 phases/50Hz, DC24V. (customize) |
| 02 | Raw Material | PVC powder, calcium carbonate, stabilizer, lubricant, small materials |
| 03 | Main material proportion | PVC: CACO3= 1:3 |
| 04 | Product specifications | Width:1050/1350mm, Thickness:2-9mm |
| 05 | Machine Fabrication Certificate | CE/UL/SGS/CSA |
| 06 | Electric components certificate | CE/UL/SGS/CSA |

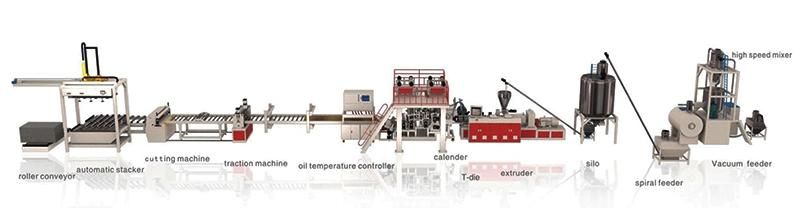

III. Super performance Spc Resilient Flooring on-Line Embossing Extrusion Production Line Equipment List and layou
Extruder → T-die → Five Roller Calender → Oil temperature controller → Traction Machine → Cutting Machine → Automatic Flipper & Stacker
IV. Super performance Spc Resilient Flooring on-Line Embossing Extrusion Production Line Patents Certificates

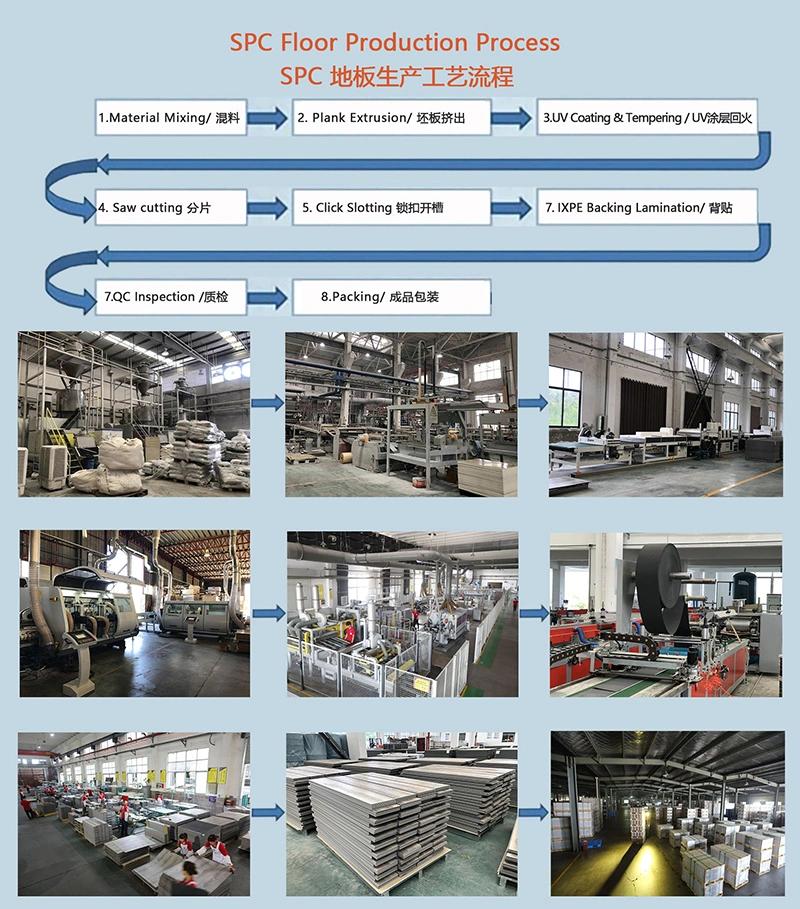

V. Super performance Spc Resilient Flooring on-Line Embossing Extrusion Production Line Whole Production Flow
Material mixing → Extruder → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing
VI. Shipping
VII.Boyu Company Profile
VIII. Advantages of BOYU Production Machine Line
IX. BOYU Services

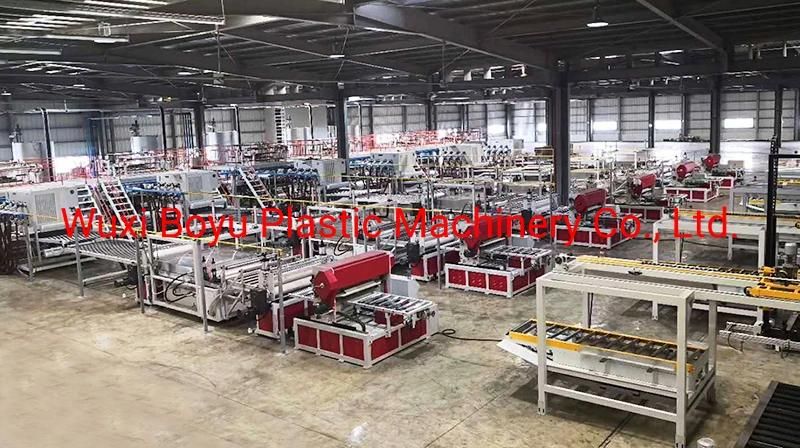

X. Project Case
