Plastic Machinery

Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe

Zhangjiagang City Xinrong Machinery Co., Ltd.
  • After-sales Service:Online Installation and Debugging
  • Warranty:12months
  • Material Processed:Wood, Films, Bags, Barrel, Container, Lump, Tire
  • Plastic Type:PP, PE, ABS, etc
  • Screw:Multi-Screw
  • Automation:Automation

Base Info

  • Model NO.:XRP600
  • Computerized:Computerized
  • Certification:UL, ISO9001:2008, CE, SGS
  • Shredding Room:1000*1000mm
  • Rotor Diameter:400mm
  • Motor Brand:Simo, Wannan, Siemens, Weg
  • Blade Materials:D2, DC53
  • Delivery Time:30-40 Working Days
  • Bearing:Heavy Duty Bearing
  • PLC Control:Siemens
  • Hydraulic Station:2.2kw
  • Voltage:According to Customer
  • Output:300-600kg,Hr
  • Screen Size:40-100mm
  • Main Electrics:Schneiders
  • Weight:1550 Kg
  • Rotating Speed:75rpm
  • Transport Package:Wooden Case
  • Specification:XR600
  • Trademark:FAMOUS
  • Origin:China
  • HS Code:84778000
  • Production Capacity:5sets,Month

Description

Basic Info.

Model NO. XRP600 Computerized Computerized Certification UL, ISO9001:2008, CE, SGS Shredding Room 1000*1000mm Rotor Diameter 400mm Motor Brand Simo, Wannan, Siemens, Weg Blade Materials D2, DC53 Delivery Time 30-40 Working Days Bearing Heavy Duty Bearing PLC Control Siemens Hydraulic Station 2.2kw Voltage According to Customer Output 300-600kg/Hr Screen Size 40-100mm Main Electrics Schneiders Weight 1550 Kg Rotating Speed 75rpm Transport Package Wooden Case Specification XR600 Trademark FAMOUS Origin China HS Code 84778000 Production Capacity 5sets/Month

Product Description

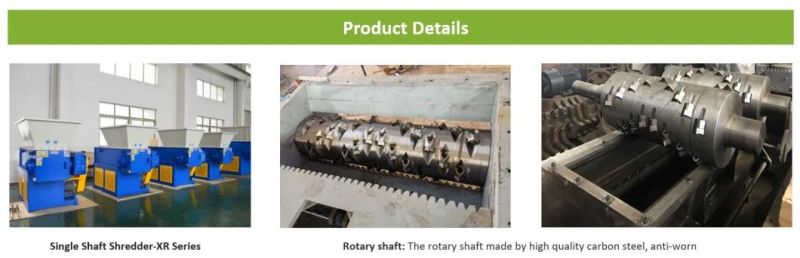

Single Shaft Shredder Machine
Product Description:
The XR series single shaft shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers' requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
Single shaft shredder machine feature and function:
Plastic shredder/shredding machine was mainly used to shred different kinds of plastic materials, especially very large waste plastic.

single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc.

Suitable Products:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:
Refuse-derived fuel: straw, municipal solid waste;
Textile: cloth fiber, nylon;
Paper: industrial waste paper, packing paper, cardboard paper;
Cable wires: copper core cable, aluminum cable, composite cables;
Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;


Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe
Product Parameters:

Model

Motor (kw)

Diameter of rotor
(mm)

Speed
(rpm)

Rotating Knife (pcs)

Fixed Knife (pcs)

Hydraulic Motor power (kw)

Weight (kg)
XR60022Φ2807526+422.21550
XR70030 or 37Φ2807532+4231950
XR80045Φ4007534+4233500
XR100055Φ4007546+4244000
XR120075Φ5007568+425.55000
XR150090 or 110Φ5507584+627.5 6200
XR2000132 or 160Φ60075112+6211 7800
Note: The above technical parameters is only for your consideration, real technical parameters of shredder machine will be different
based on shredding different material requirements, please call us for more information before purchasing.

Single Shaft Shredder Machine Work Process:

Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big PipeSingle Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe
Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big PipeSingle Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe
Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe
Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big PipeSingle Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big PipeSingle Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe
Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine

Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.

Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Single Shaft Shredder Machine for HDPE Pipe/PVC Pipe/Long Pipe/Big Diameter Pipe/Big Pipe

Q: Are you a factory or a  trading company?

A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 30 years, our factory is in Zhangjiagang city which is near shanghai and wuxi.

Q: Do you have any certifications?

A: Yes, we have ISO, CE, SGS.

Q: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: When can I get my machine after I paid?

A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: How to install my machines when it arrives? how much the cost?

A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have
problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory.

Customer pay for visa, round air tickets, accommodation and USD100/day/person.

Q:How long time for installation?

A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days.

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price.


IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT WITH US.
