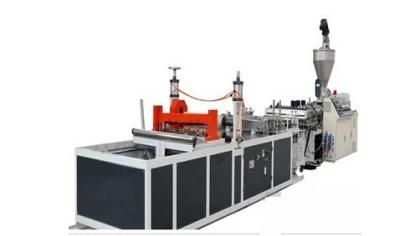

PVC Single-Layer Corrugated Sheet Extrusion Line
SKY WIN Technology Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
Base Info
Description
Product Description
First, the cost of PVC synthetic resin tileProduction costs and asbestos are similar, but the strength of the product is 20 times asbestos, asbestos life is more than 10 times.
Second, the production of raw materials
Production of synthetic resin tile basic raw material for the PVC resin, plus the right amount of stabilizers, lubricants, processing modifier of several materials, supply of raw materials is guaranteed.
Three, PVC synthetic resin tile production process is as follows:
High-speed mixer ingredients → → → cooling mixer extruder die → → → cooling setting traction → cutting → → inspection → finished product storage delivery
Four, PVC tile approximate formula
PVC 100, light calcium, 60,, CPE, 3.5, lead compound, stearic ,, 3.5, 0.9, PE wax, 0.7, pigments, 1, epoxidized soybean oil, 2.3, anti-aging agents PA168,0.1, UV agents UV531,0.1
Five, PVC synthetic resin tile equipment configuration:
According to the most economical investment, it can be directly used double-cone 80 extruded corrugated sheet; coextrusion mode can also be used, plus 1 set 50 single-screw extrusion machine. Plus dispenser, a set of extrusion die, do Layer AB form a composite wave UV tile, A bit ASA layer thickness of approximately 0.2mm, after the underlying tile months 1.6-1.8mm thick.
Sixth, equipment technical parameters
| MODEL | LAYERS | SPEED m/min | OUTPUT kg | WIDTH mm | THICKNESS mm | POWER kw | WEIGHT kg |
| SWBLD-1 | ONE | 2-6 | 250-380 | 800-900 | 2;2.5.3 | 140 | 8000 |
