Innovative Products PVC Pipe Extruder Machine
Qingdao Changyue Plastic Machinery Co., Ltd.- Certification：ISO9001
- Transport Package：Film
- Specification：25*1.5*3.5m
- Trademark：HYD
- Origin：Shandong, China
Base Info
- Model NO.：SJ65,33
Description
Basic Info.
Model NO. SJ65/33Product Description
PVC pipe production line / PVC tube making machineDescription of PVC pipe makign machine
PVC pipe extruder machine/UPVC pipe making machine is mainly used in the manufacturer of the UPVC and PVC pipes with various tube diameters and wall thickness such as agricultural and constructional plumbing, water supply and drain etc. This set is composed of conical twin-screw extruder,vacuum calibration tank, hual-off machine,cutter, stacker etc.
Our machine can produce the PVC pipe with diameter from 16-630mm.
Main parameter of PVC pipe making machine
| Model | pipe range(mm) | extruders | max.speed(m/min) | total power(kw) | max.output(kg/h) | line length(m) |
| PVC-50*2 | 16-50 | SJSZ51/105 | 6 | 60 | 150 | 20 |
| PVC-63 | 16-63 | SJSZ45/90 | 10 | 45 | 120 | 20 |
| PVC-110 | 50-110 | SJSZ51/105 | 6 | 60 | 150 | 24 |
| PVC-160 | 63-160 | SJSZ65/132 | 5 | 100 | 300 | 24 |
| PVC-250 | 110-250 | SJSZ80/156 | 3.5 | 120 | 400 | 28 |
| PVC-315 | 160-315 | SJSZ80/156 | 3 | 160 | 400 | 36 |
| PVC-450 | 250-450 | SJSZ92/188 | 1.5 | 200 | 700 | 36 |
| PVC-630 | 315-630 | SJSZ92/188 | 0.9 | 230 | 700 | 36 |

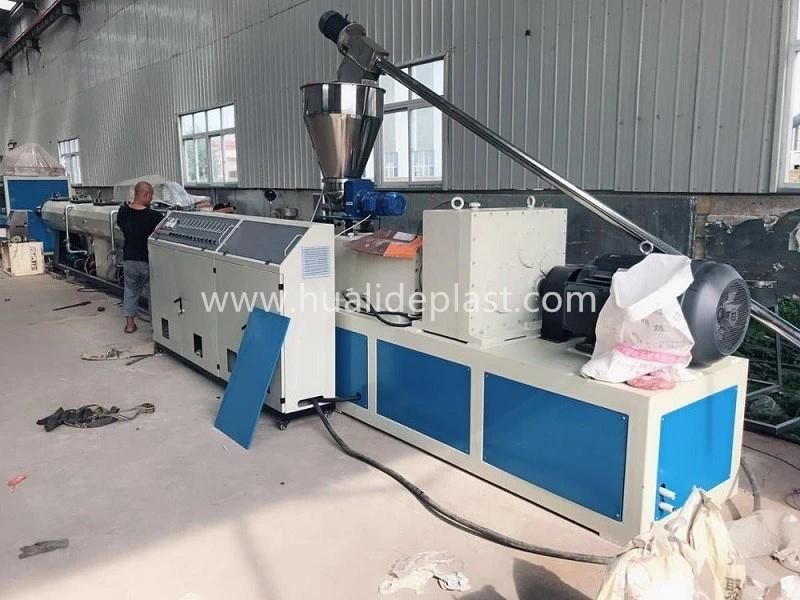

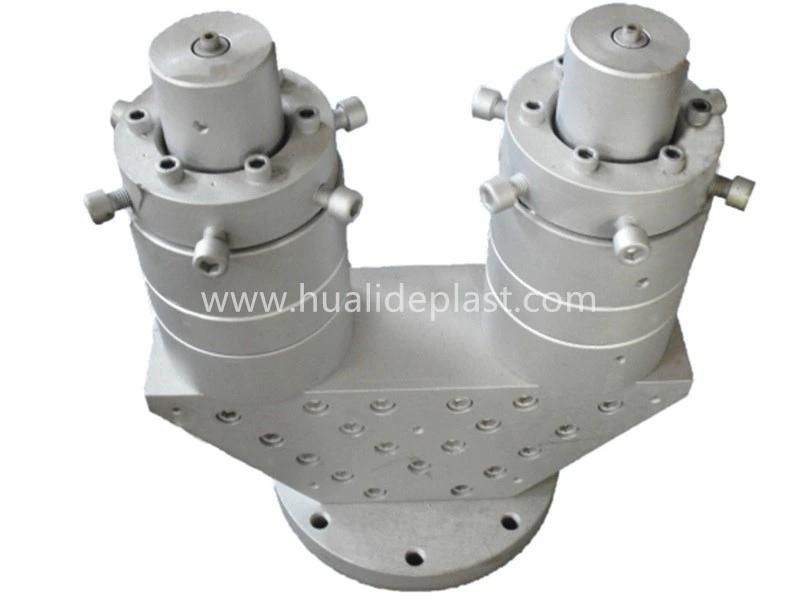

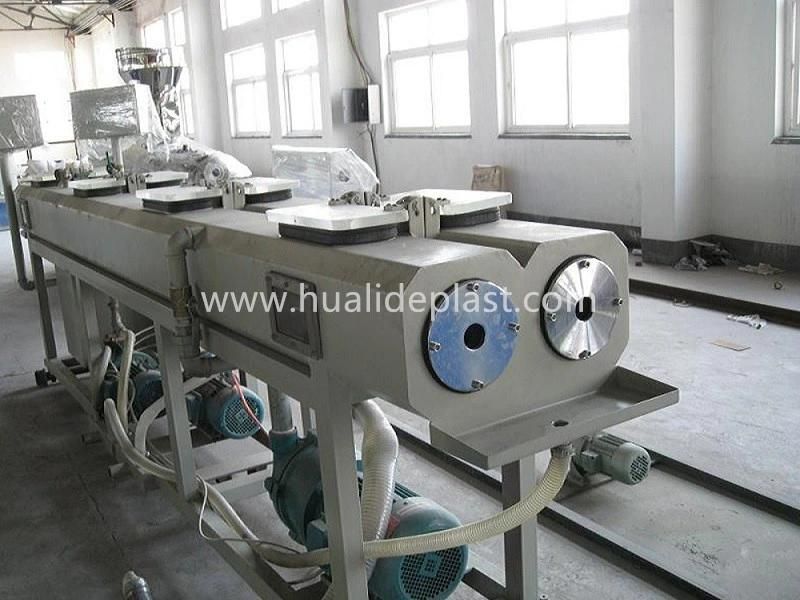

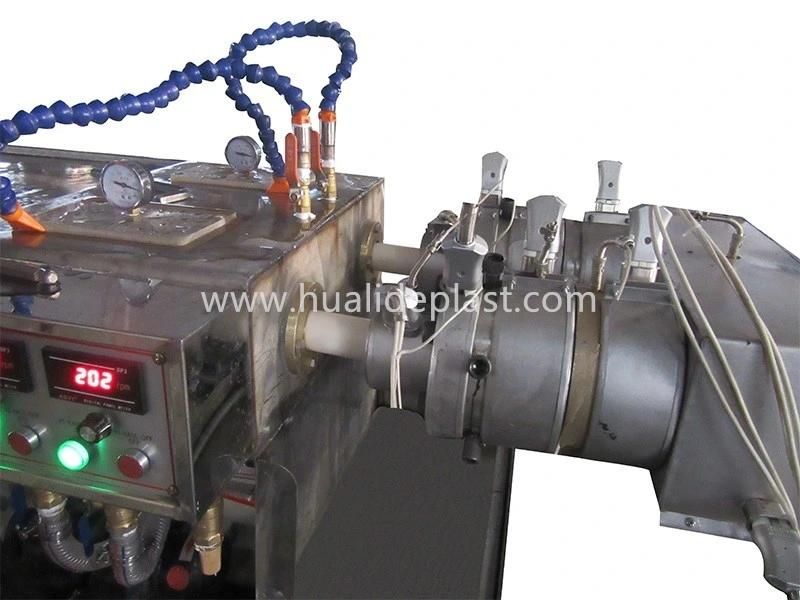

Machine details
Our customer&exhibition
Packing
