• Model NO.：1000mm
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Application：Crush Plastic Lump, Pipe, Film, etc
• Shaft Type：Single
• Main Motor：22kw to 110kw
• Capacity：200-2000kg,H
• Electric：Siemens or Schneider
• Machine Color：Blue, Grey, White or According to Requirement
• Transport Package：Wooden Case Film Packing
• Specification：1000mm
• Trademark：Sunrise Machinery
• Origin：China
• HS Code：84778000
• Production Capacity：100 Set Per Year

Basic Info.

Model NO. 1000mm Computerized Non-Computerized Certification CE, ISO9001:2008 Application Crush Plastic Lump, Pipe, Film, etc Shaft Type Single Main Motor 22kw to 110kw Capacity 200-2000kg/H Electric Siemens or Schneider Machine Color Blue, Grey, White or According to Requirement Transport Package Wooden Case Film Packing Specification 1000mm Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 100 Set Per Year

Product Description

The single shaft plastic shredder machine is mainly used in handling PE PP PVC ABS lumps, pipe, baled film, etc.

This single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.

This plastic shredder machine has the advantages of stable running lower noise and big torque...

The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.

Shredder Features:

1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has four cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen perforation is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Model	SR-S600	SR-S800	SR-S1000	SR-S1200	SR-S1500
Shaft Length (mm)	600	800	1000	1200	1500
Shaft Diameter (mm)	220	400	400	400	400
Main Motor (KW)	18.5	37	45 / 55	55/75	75/90
Hydraulic Power (KW)	2.2	2.2	2.2	5.5	5.5
Rotary Blades (PC)	26	46	58	70	90
Fixed Blades (PC)	2	2	2	3	3
Capacity (kg/h)	200-300	400-600	700-1000	900-1200	1300-1600

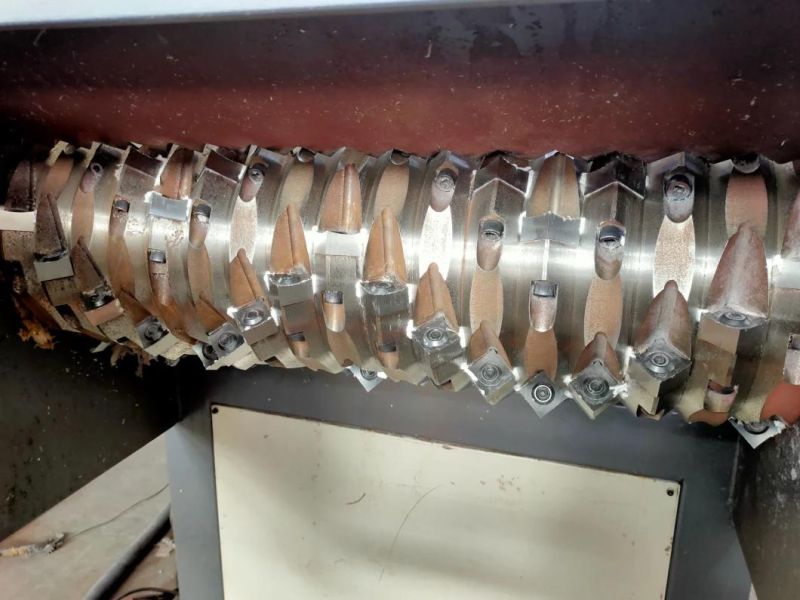

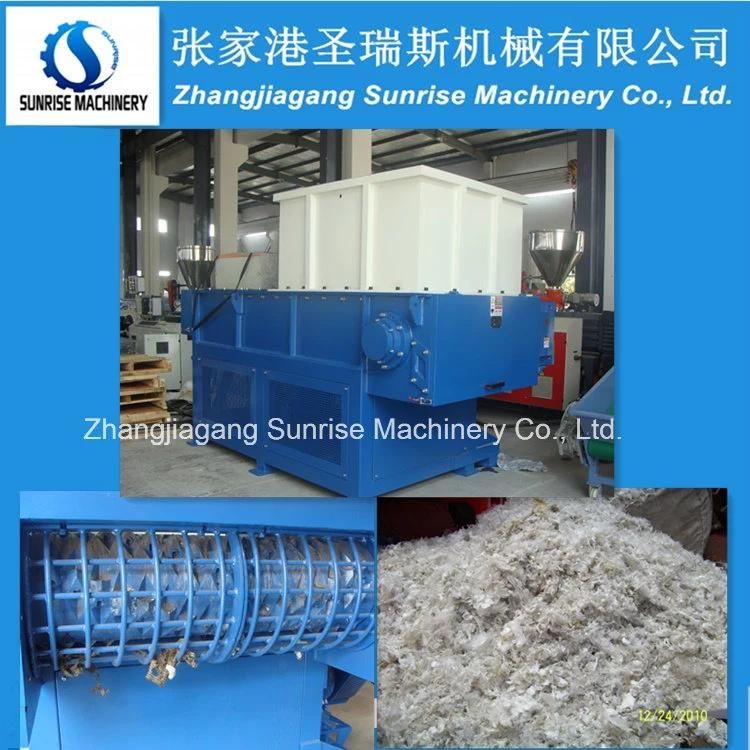

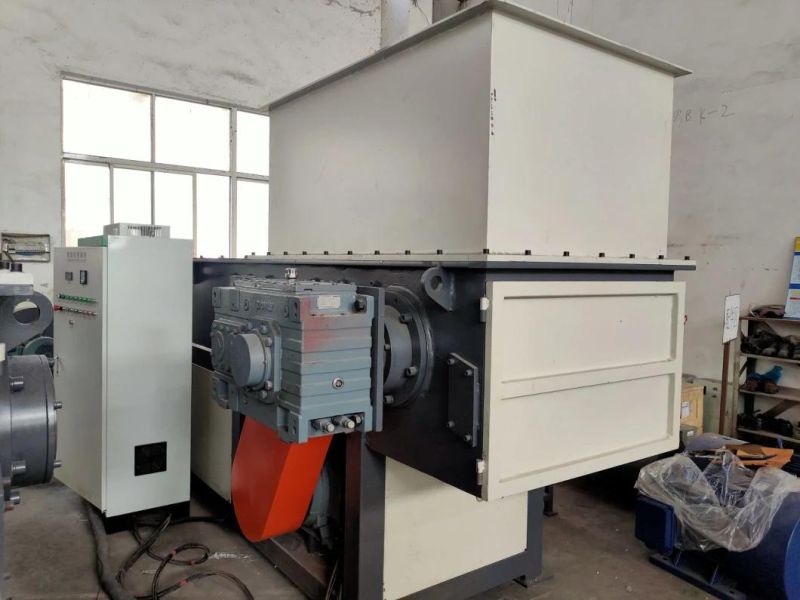

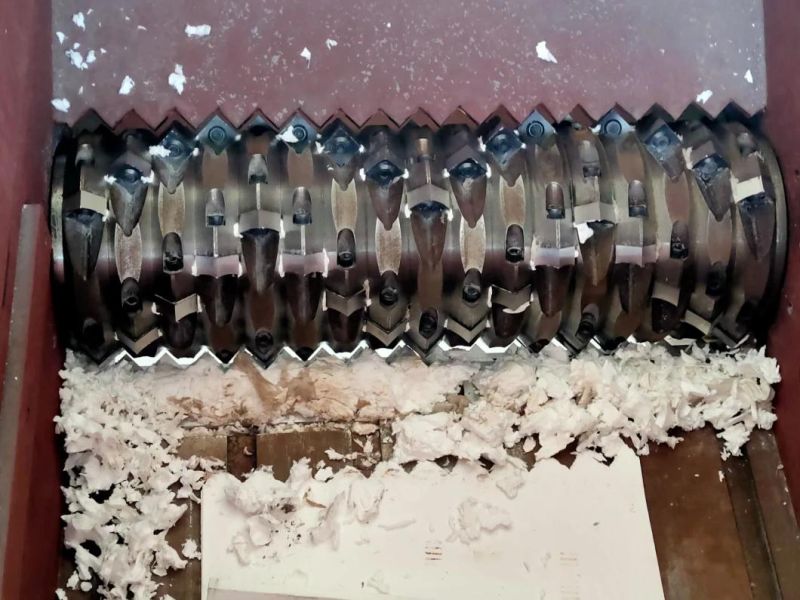

Machine Picrtures:
