• Specification：4500KG,H
• Trademark：BORETECH
• Origin：China
• HS Code：8479820090
• Production Capacity：10 Sets Per Month

Basic Info.

Specification 4500KG/H Trademark BORETECH Origin China HS Code 8479820090 Production Capacity 10 Sets Per Month

Product Description

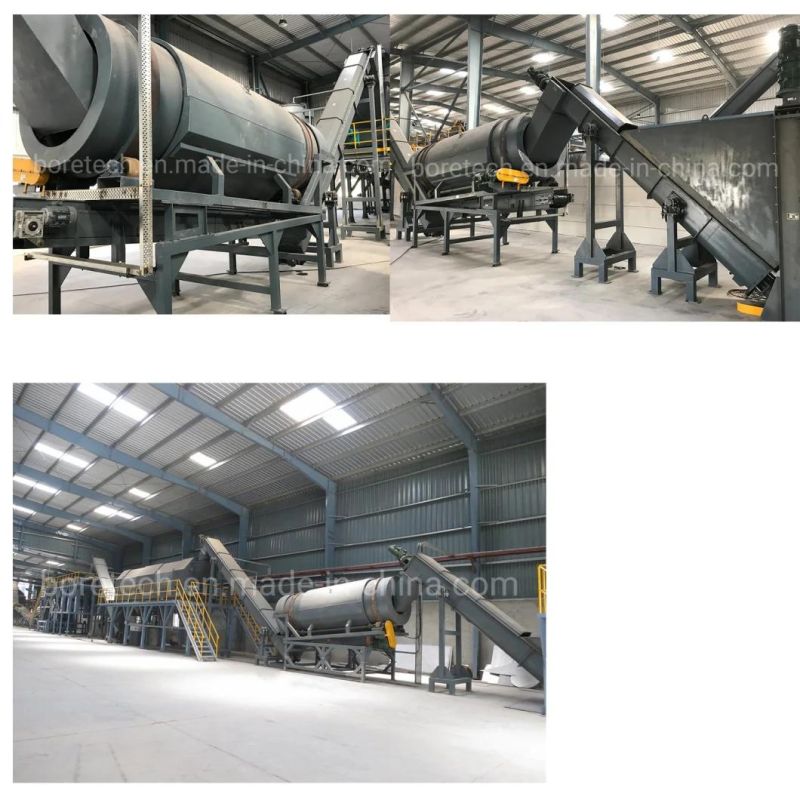

Sieving Machine (Dry Trommel )
Sieving machine is used to separete solid waste such as sand, metal, small stone, labels in PET bottle recycling process. It helps the PET bottle washing by reducing equipment abrasion, material loss to enhance productivity. Flakes sieving improve the quality of final PET flakes.
BoReTech supplys three types of sieving machines, dry trommel,disk screener and dust remover. Disk screener is more compact than the dry trommel, it can be placed after de-baling and pre-washing then remove
sand, labels and so on. It can evenly disperse the bottles onto the next process and remove remained water.
Dry trommel can remove caps and sands separately by multiple mesh sizes.
Dust remover can separate dust in the flakes, small plastic labels and film by taking advantage of the gravity and machine structure design.

Model	Capacity(kg/h)	Power(kW)	Drum Diameter(mm)	Mesh Size(mm)	Dimensions(mm)
GTS1600	3000	5.5	Ø1600	Ø30*50	5230*3490*2315
GTS1900	4500	7.5+1	Ø1900	Ø30*50	6070*2660*4675

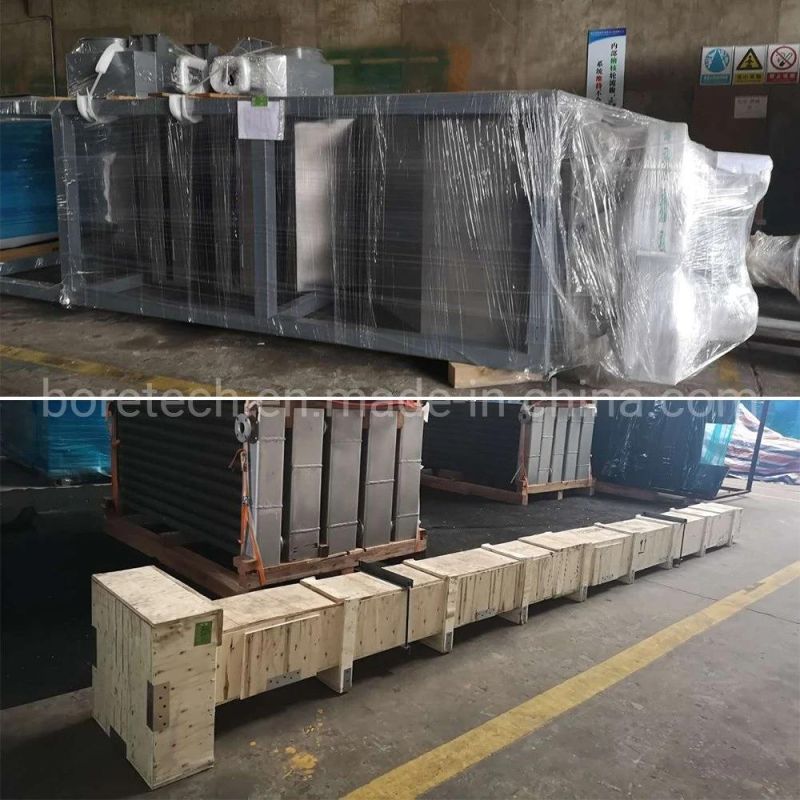

Packing&Transport



1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.

BoReTech is a resource environmental enterprise which integrates manufacturing,engineering and equipment supply. BoReTech is devoted to develop large input capacity of smart PET bottle recycling system with full automation and intelligence. Meanwhile, BoReTech as resources and technology integrator of recycled polyester industrial chain supply turnkey service of PET bottle washing line,bottle-to-fiber and bottle-to-bottle engineering.
BoReTech is the only PET bottle washing line for food-grade B-To-B project in Asia,and more than 170 PET bottle washing lines are running all over the world.
