• Model NO.：ZSE110
• Shaft Hardness：HRC 38-42
• Characteristic：Wear Resistance
• Function：Transmission
• Condition：New
• Transport Package：Wooden Box
• Specification：As required
• Trademark：As required,JOINER
• Origin：China
• HS Code：8477900000
• Production Capacity：3000 Pieces,Year

Basic Info.

Model NO. ZSE110 Shaft Hardness HRC 38-42 Characteristic Wear Resistance Function Transmission Condition New Transport Package Wooden Box Specification As required Trademark As required/JOINER Origin China HS Code 8477900000 Production Capacity 3000 Pieces/Year

Product Description

ZSE110 Extruder Screw Shafts for BOPP/BOPET Twin Screw Extruder



1. Structure: without cooling system inside the shaft
 2. Details:
- Diameter: 75mm,
- Length: 4400mm,
- Material: 40CrNiMoa;
- Type:Involute inner spline
- L/D=40:1

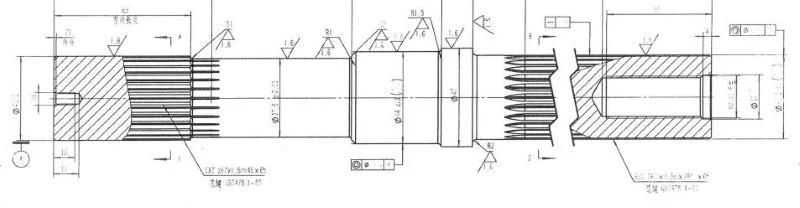

3. Example Drawing:

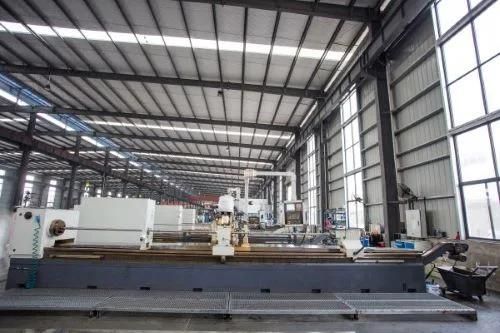

4. Our factory is state-of-the art and spans over 20,000 square meters. The factory houses more than 130 sets of different domestic and foreign high precision production equipment, with the degree of numerical control up to 95%.





5. All shafts must be ajusted by hydraulic straightening machine.



6. Shaft feature of Materials 40CrNiMoa:

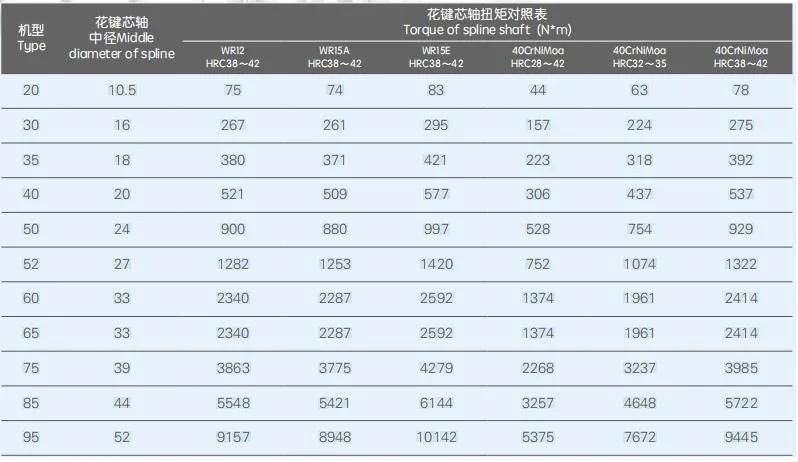

5. Torque of the shaft


6. Raw material guarantee

The company has been cooperating with domestic and foreign first-line brand material suppliers for a long time, and has a strict quality control and performs regular audits and inspection of the factory (elemental analysis, metallographic analysis, ultrasonic flaw detection, etc.) to ensure a 100% qualified status.



7. Packaging:



According to your order quantities and products sizes to choose the number of wooden boxes.

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,

f.  Sealing

8. Why choose us?

(1) Total solution of highly wear-resistance and corrosion-resistance problems;
(2) Expert of engineering design and consulting,
(3) Advanced manufacturing capabilities and technology,
(4) Lean production management
(5) Top quality products with high cost performance



9. FAQ:



1.Q: Are you trading company or manufacturer?

   A: We are factory.



2.Q: Where is your factory located? How can I visit there?

   A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients from domestic or abroad are warmly welcome to visit us.



3.Q: What makes you different with others?

   A: Our Excellent Service For a quick, no hassle quote just send email to us we promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 19150954315, we will answer your questions immediately. 2) Our quick manufacturing time For Normal orders, we will promise to produce within40 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.



4. Q: What is your terms of payment ?

    A: 1) T/T 2) L/C;
