PP Water Cooling Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PP Film Blowing Machine
  • Raw Material：PP
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：65mm
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FMP-1100
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Voltage：380V 50Hz 3phase
  • Height：Around 3.5 Meters
  • Transport Package：Plastic Wrap Film for Container Shipment
  • Trademark：Xiongqiu Plastic Machinery
  • Origin：Guangdong, China
  • HS Code：8477800000

Description

PP / PEthickness0.02--0.20mmfilm width(mm)60--400100--650150--700250--900300--1000max output40kgs/hr55kgs/hr70kgs/hr90kgs/hr120kgs/hr Extruder30:1temp. controller4 zone4 zone5 zone5 zone6 zonebarrel cooling120w*2120w*2120w*2250w*3250w*3driving motor11kw15kw18.5kw30kw45kw Die headSpiral mandrel die chrome plated surface 40Crcooling fan550w950w1.1kw1.5kw2.2kw Draging partauto-loader device, film surface treater, air compressor, rotary die head

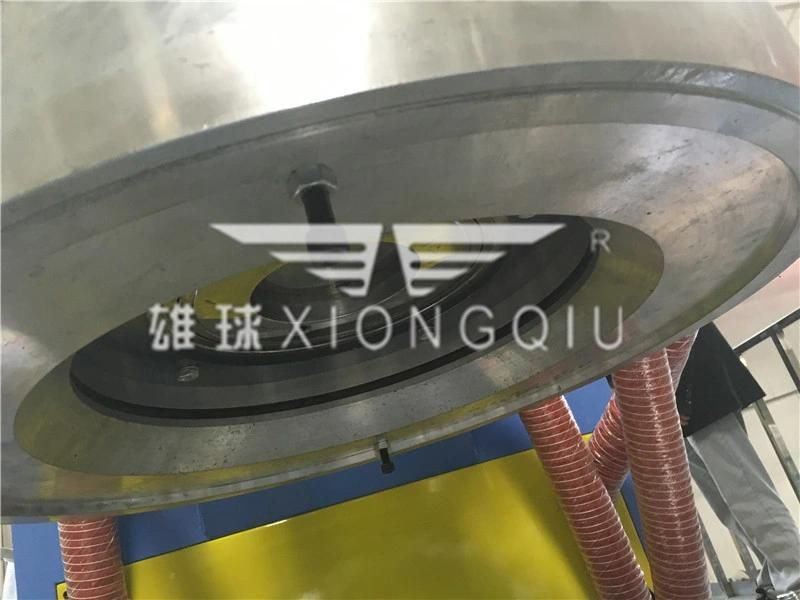

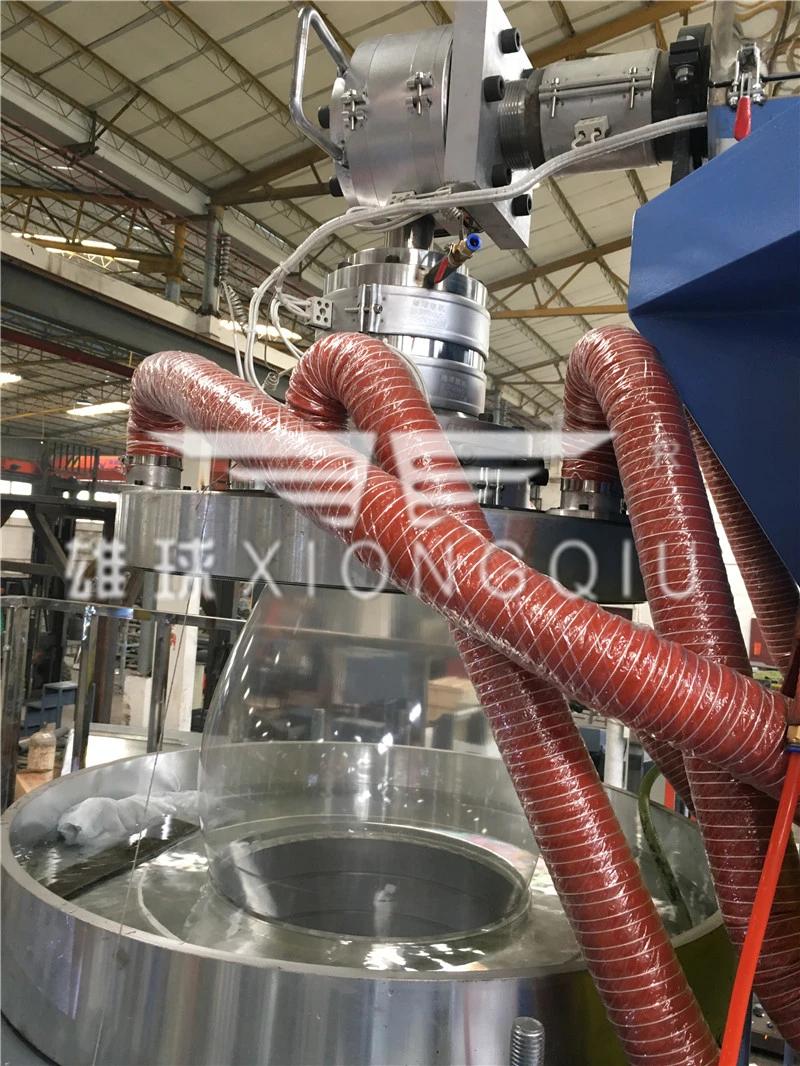

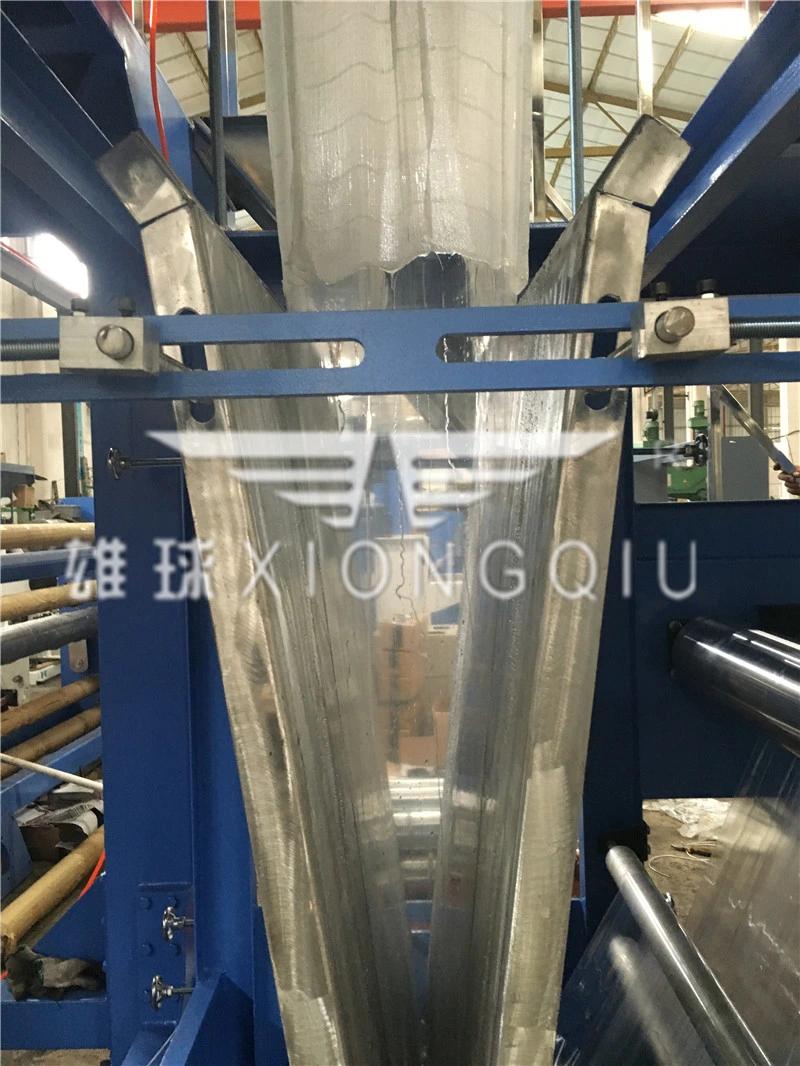

Pictures for reference:
PP Water Cooling Film Blowing Machine
PP Water Cooling Film Blowing Machine
PP Water Cooling Film Blowing Machine
