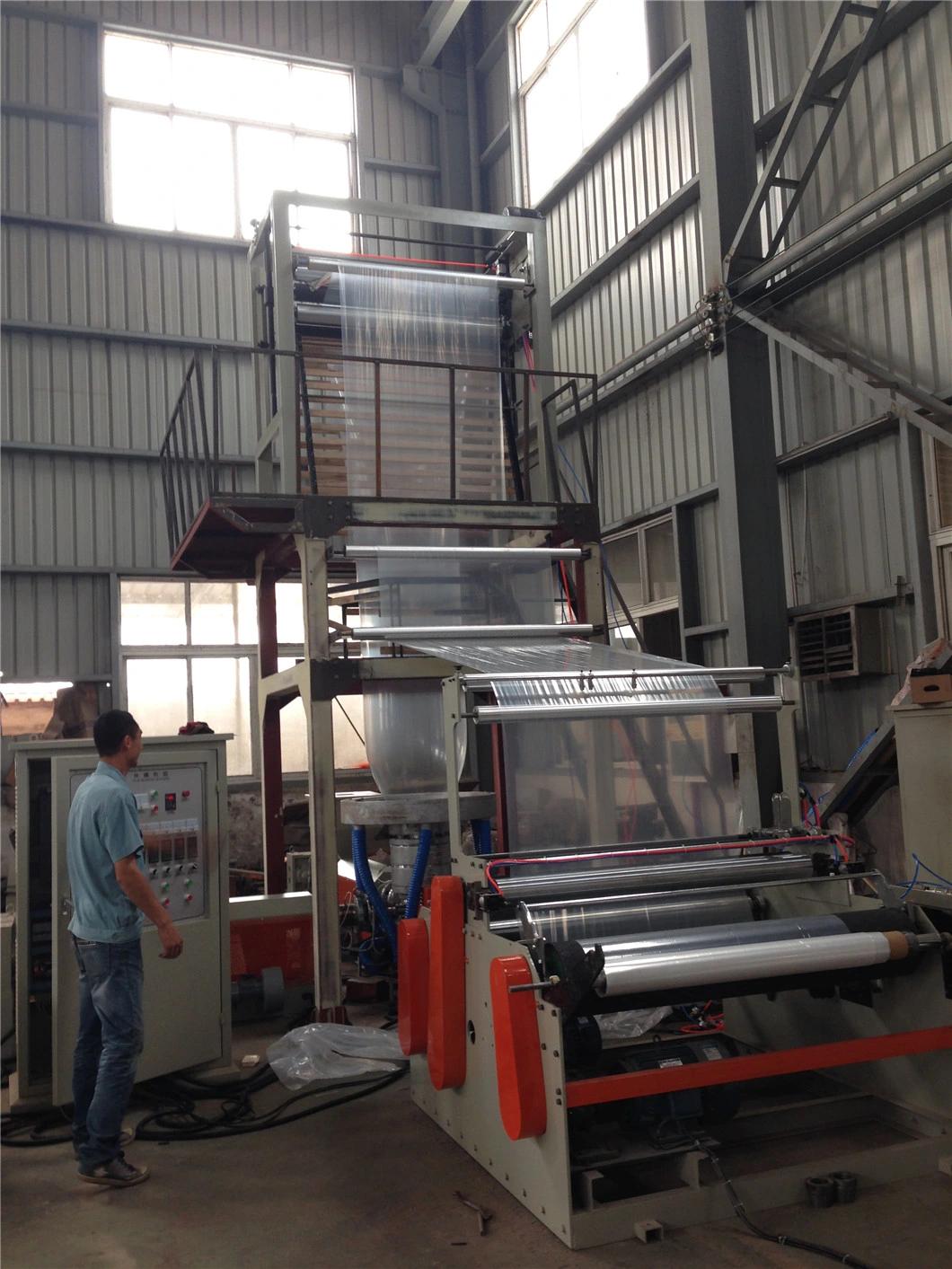

Two Layers Film Blowing Machine with Rotary Die Head

Zhejiang Zhuxin Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：2000mm
  • Screw Diameter：75,100
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：SJ-B 75,100
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Machine Color：We Can Make According to Your Demand
  • Machine Model：We Can Make According to Your Demand
  • Machine Output：We Can Make According to Your Demand
  • Machine Design：We Can Make According to Your Demand
  • Transport Package：Wrapping Film
  • Specification：CE
  • Trademark：Changyin
  • Origin：China
  • HS Code：84773000
  • Production Capacity：500sets,Year

Description

Performance and Characteristics:This machine can produce ground,shack and package film of LDPE,HDPE,LLDPE,Extruder barrel and screw are made of high quality alloy steel,nitrided and manufactured by precision machining.They are provided with very hard surface to resist corrosion and adrasion.Temperature is regulated automatically,reliably and accurately.It is adopted surface friction ,double winder and automatic meter counter, which is easy to operate.
Main Technical Parameters:ModelSJ-B75SJ-B100 Suitable MaterialLDPE,HDPE,LLDPELDPE,HDPE,LLDPE Screw Diameter  φ75Φ100 Film Width(mm)700-15001200-2000 Film Thickness (mm)0.008-0.100.008-0.10 Max Extrusion Output(kg/h)(HD)70 90 Max Extrusion Output(kg/h)(LD)80100 Screw L/D Length28:128:1  Main Motor(kw)30-3745-55 Take-up Motor(kw)1.51.5 Outline Dimension
(L×W×H)(m)6×3×7.57.1×3.5×9 Two Layers Film Blowing Machine with Rotary Die Head
