• Model NO.：CWJ Series
• Condition：New
• Certificate：ISO9001 2015
• Height：Adjustable
• Connection：Flange
• Transport Package：Wooden Box
• Specification：About 1300*650*1230(mm) for 1 set
• Trademark：Joiner
• Origin：China
• HS Code：8477900000
• Production Capacity：200 Pieces,Year

Basic Info.

Model NO. CWJ Series Condition New Certificate ISO9001 2015 Height Adjustable Connection Flange Transport Package Wooden Box Specification About 1300*650*1230(mm) for 1 set Trademark Joiner Origin China HS Code 8477900000 Production Capacity 200 Pieces/Year

Product Description

Quality Side Feeders for ZSK/TEX/ZSE/ZE/CPM/Maris Series Twin Screw Extruders


1. JOINER employs segmented screws with a self-wiping profile to provide optimum feeding properties for a wide range of raw materials such as fillers,fiberglass, talcum powder,calcium carbonate and most inorganic materials.

2. Side feeders are used for the following reasons:
· Reduction of wear costs in the melting section of the main screw and barrels
· More gentle processing of fillers
· Increase in throughput
· Increase in quality through the enough fixing
· Lower the cost

3. Our side feeders features :
· Very durable thanks to its durable integral liner inside barrels
· The tightly intermeshing co-rotating segments with various pitch have an improved conveying behaviour and ensure the precision (long GF±5%,short GF±2%) and output (caco3550Kg/h,GF 500Kg/h)
· More human centered design,ease of operation.for example the glass window,on the splined sleeve, flat screw head ,the adjustable support and the drawer for clean up the leak .Can designed based on user requests.

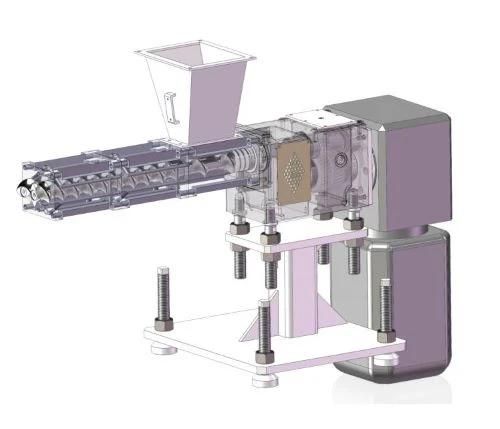

4. Components

Mark	Part Name	Qty (Pcs)	Function
1	SEW Motor	1	Driving System
2	Gearbox Section	1	Transmission System
3	Hopper	1	Feeding
4	Screw Section	2	Mixing and conveying the filler
5	Barrel Section	2	Carry the screw shaft and melt the material
6	Bracket	2	Supporting the Side Feeder

5. Advantages of Joiner Extrusion Side Feeder

A. Independently develop and produce gearboxes. 1) All gearboxes are machined by gear grinding, the accuracy is up to six grades, and carburizing and hardening the tooth surface, thus ensuring that the noise of gearboxes is very low. 2) Gear casting is made of resin sand and machining center to ensure high precision. 3) the gearbox's bearing is imported from Germany. 4) the gearbox has unique design, long life and low noise. 5) the gearbox and screw element are connected by spline sleeve, which is very convenient to disassemble B. Barrel is made of wear resistant alloy steel and cooled by water channel. C. Screw adopts modular screw, and the screw assembly can be adjusted according to different feeding materials to meet different feeding requirements.

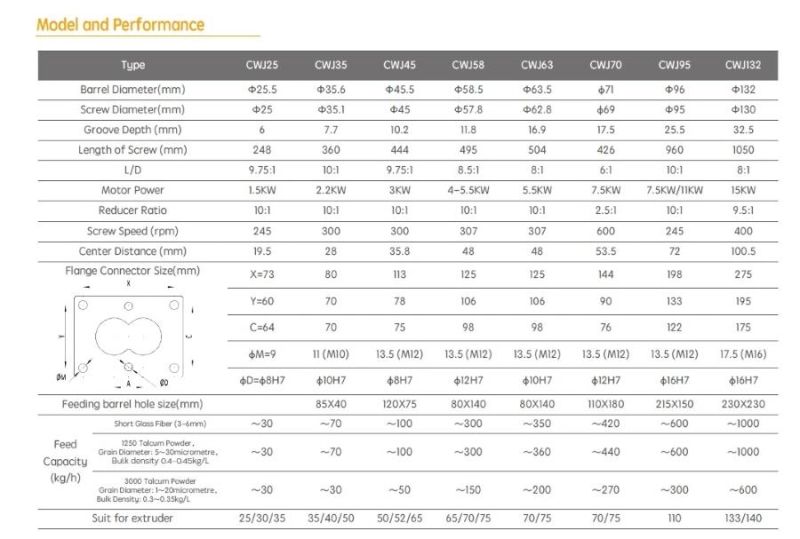

6. Models: CWJ side feeder range is available with a screw diameter from 25mm to 130mm.


7. Side Feeder for
- Coperion: ZSK/STS/CTE   - Berstorff: ZE
- Leistritz: ZSE -MICRO        - Theysohn: TSK
- Maris: TM-W                       - APV:MP
- JSW: TEX                           - SM:TEK-HS
- Feddem: FED-MTS            - Fessia Macross: NRII
- TOSHIBA: TEM                  - Labtech: LTE
-USEON:TDS                        - SHIZHOU:MTE
-KEYA, LANTAI

8. Packing and Delivery

Packing Details : Standard export packing
1).Standard packing with wooden box.
2)Suitable carton size;
3)Shock bubble film

Delivery Time: Shipped in 60 days after payment for Side Feeder.


9. FRQ

1. Q: Are you a factory or trading company?
 ----A: A factory

2. Q: Where is your factory located? How can I visit there?
-----A: Our factory is located in Chengdu, Sichuan Province, China,
1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!

3.Q: What makes you different with others?
----A: 1) Our Excellent Service
 For a quick, no hassle quote just send email to us
 We promise to reply with a price within 24 hours - sometimes even within the hour.
 If you need an advice, just call our export office at +86 19150954315, we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within 30 working days.
As a manufacturer, we can ensure the delivery time according to the formal contract.

 4.Q: How about the delivery time?
----A: This depends on the product. Typically standard products are delivered within 60 days.

5.Q: May I know the status of my order?
--A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
