LDPE LLDPE HDPE Plastic Film Blowing Machine for Packing
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
Base Info
- Model NO.：FB-B
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Corona Treater：Optional
- Fast Changer：Optional
- Transport Package：Seaworthy
- Specification：CE, ISO9001 certificate
- Trademark：HOIN
- Origin：China
- HS Code：847720103
- Production Capacity：50kgs
Description
0.008 -0.10mmSub-master Machine Lift Scope 600mm 800mm 1800mm Total Power 28Kw 36Kw 42Kw Weight 2600kg 3000kg 3500kg Overall Dimension(L×W×H) 4600×2600× 4000mm 4800×2800× 4300mm 5000×3000× 4800mm
Suitable Material: HDPE/LDPE/LLDPE
Max.Folding Width of Film (mm): 800
Thickness of Film (mm): 0.008-0.10MM
Max. Output (Kg/Hr.): 50kg/h
Extruder
Screw Dia. (mm): φ 55
Screw & Barrel L/D Ratio: 28: 1
Screw & Barrel material: 38 CRMOALA
Barrel Auto Thermo Control: 3 Points
Cooling Blower : 1.5kw
Gear box: water cooling reducer, hard tooth surface use 1473# type
Driving Motor: 15kw
Screen Changer: manual type
Screen Changer Heater Capacity (Kw): 1.5
Die:
Die Dia. (mm): 80mm and 160mm
Die Heater Capacity (Kw): 3
Die Auto Thermo Control: 1 Points
Air Ring: 1 Set per Die
Bubble Basket: Hexagon Type
Folding devices ( from the double sides ) ,
max.folding : The 10cm
Take-up Unit:
To be possible to moving the tower 1.5m
Pinch Roller- Embrorosing Roller
Take-up Motor with Inverter Control: AC 1.5kw
Winding Unit
Max. Width (mm): 800
Max. Wind-up roll dia. (mm): φ 800
Winding Motor: 10Kg/Nm with moment motor
Rewinding Speed: 5-50m/min
3.Spare Part List:

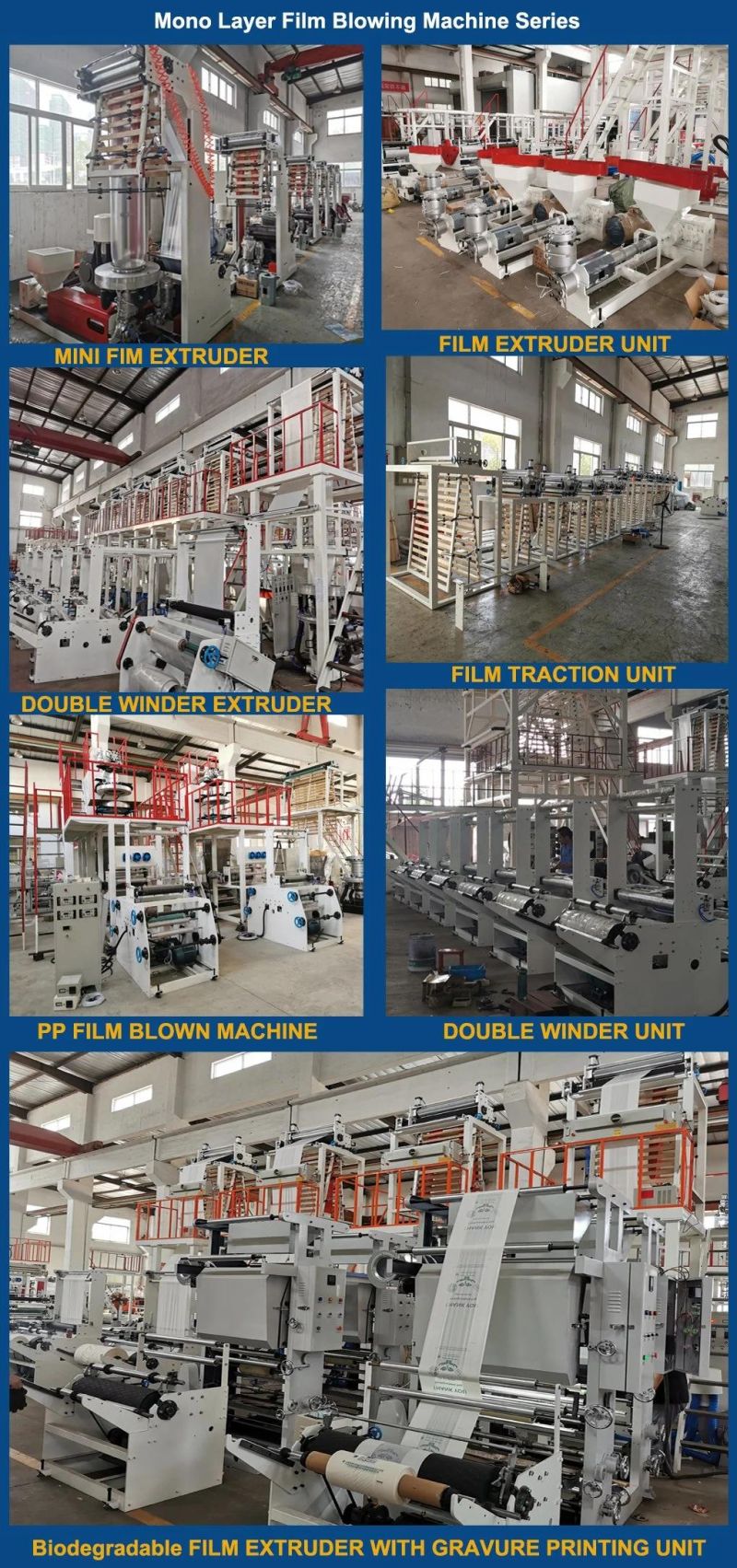

4. Machine Pictures for Reference:
5. Workshop of HOIN

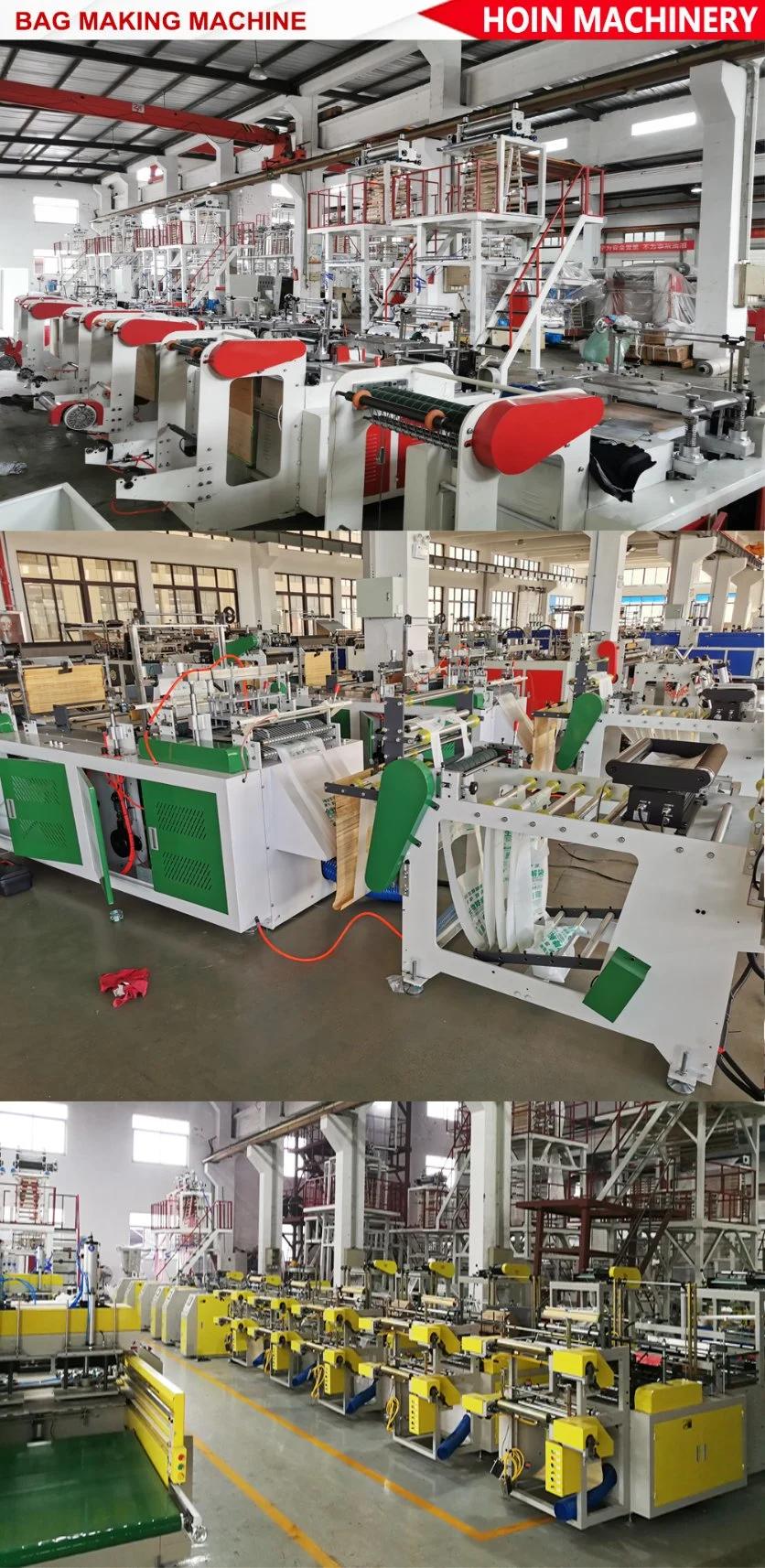

6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Suitable Material: HDPE/LDPE/LLDPE
Max.Folding Width of Film (mm): 800
Thickness of Film (mm): 0.008-0.10MM
Max. Output (Kg/Hr.): 50kg/h
Extruder
Screw Dia. (mm): φ 55
Screw & Barrel L/D Ratio: 28: 1
Screw & Barrel material: 38 CRMOALA
Barrel Auto Thermo Control: 3 Points
Cooling Blower : 1.5kw
Gear box: water cooling reducer, hard tooth surface use 1473# type
Driving Motor: 15kw
Screen Changer: manual type
Screen Changer Heater Capacity (Kw): 1.5
Die:
Die Dia. (mm): 80mm and 160mm
Die Heater Capacity (Kw): 3
Die Auto Thermo Control: 1 Points
Air Ring: 1 Set per Die
Bubble Basket: Hexagon Type
Folding devices ( from the double sides ) ,
max.folding : The 10cm
Take-up Unit:
To be possible to moving the tower 1.5m
Pinch Roller- Embrorosing Roller
Take-up Motor with Inverter Control: AC 1.5kw
Winding Unit
Max. Width (mm): 800
Max. Wind-up roll dia. (mm): φ 800
Winding Motor: 10Kg/Nm with moment motor
Rewinding Speed: 5-50m/min
3.Spare Part List:
| 01 | filter | 1 M | 08 | electric -testing pen | 1 pcs |
| 02 | magetic stone | 1 pcs | 09 | hexageonic wrench | 1 pcs |
| 03 | air pipe | 1 pcs | 10 | glove | 2 pairs |
| 04 | 8-10 open and wrench | 1 pcs | 11 | Steady Bar | 1 pcs |
| 05 | 12-14 open and wrench | 1 pcs | 12 | Mould Pipe | 1 pcs |
| 06 | 14-17 open and wrench | 1 pcs | 13 | electric-thermal couple (E) | 2 pcs |
| 07 | 17-19open and wrench | 1 pcs | 14 | screw heater(stainless steel) | 1 pcs |
5. Workshop of HOIN6. More Products Optional:7.After Service of HOIN:1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
