• Model NO.：ABLD90
• Max Product Volume：30liters
• Station Number：Single Station
• Auto-Deflashing：with Auto-Deflashing
• Machine Weight：11ton
• Machine Size：4.2X3X3.2m
• Screw Diameter：90mm
• Screw L/D Ratio：25 L,D
• Max Mold Size：530X550mm
• Clamping Force：110kn
• Output Capacity：1680~3360PC,Day
• Transport Package：Film Packing
• Specification：ABLD90
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：3360PCS,Day

Basic Info.

Model NO. ABLD90 Max Product Volume 30liters Station Number Single Station Auto-Deflashing with Auto-Deflashing Machine Weight 11ton Machine Size 4.2X3X3.2m Screw Diameter 90mm Screw L/D Ratio 25 L/D Max Mold Size 530X550mm Clamping Force 110kn Output Capacity 1680~3360PC/Day Transport Package Film Packing Specification ABLD90 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity 3360PCS/Day

Product Description

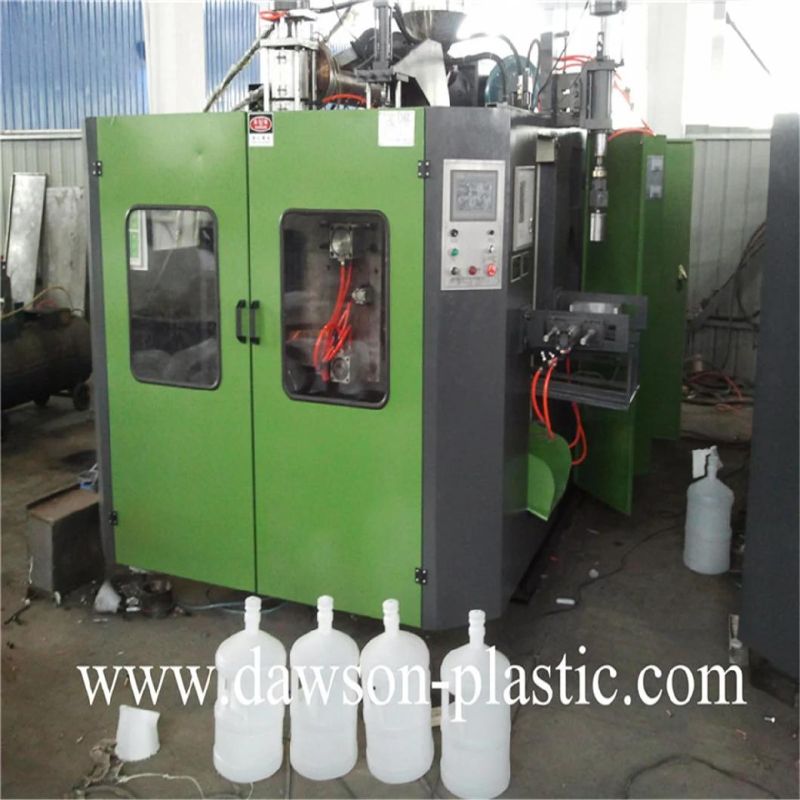

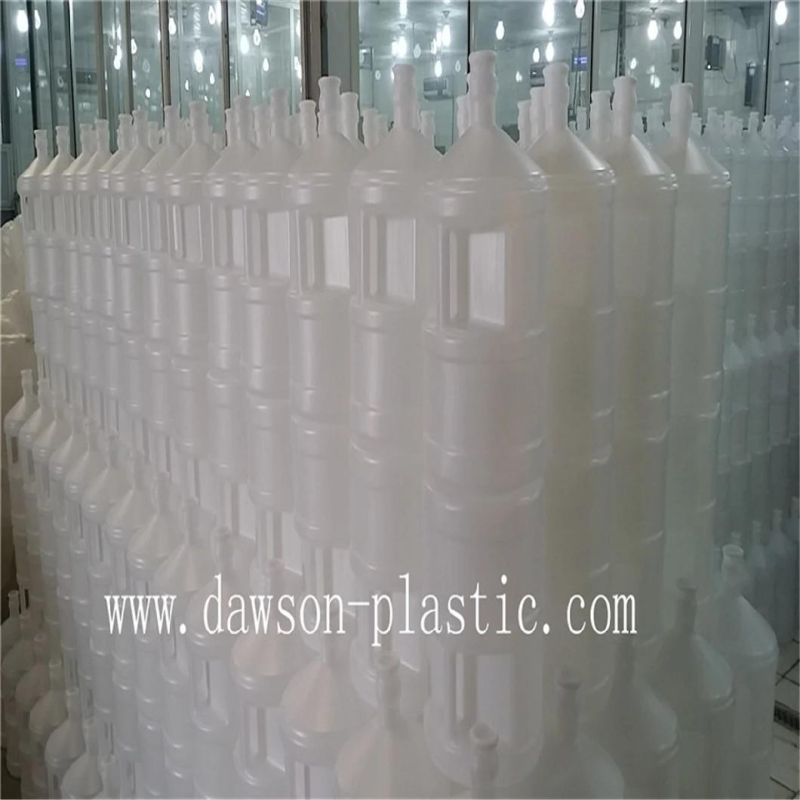

   This type of blow molding machine ABLD90 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L. The machine is especially designed for producing  PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.Double station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

The main components of the machine. ( ABLD90)

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	TAIWAN JINSHUN
Oil pump and connection	TAIWAN JINSHUN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO


Technical Parameters: ( ABLD90)

Max. Product volume	80 liters
Out put capacity	110~140pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130KG/H
Oil pump drive power	11 KW
Clamping force	110KN
Max.size of mold	240-660mm
Mold stroke	530 X 550mm
Max.die diameter	180mm
Blowing pressure	0.8 mpa
Air Volume	1M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.2m
Weight of machine	11ton
