• Model NO.：SDBGZ-32, 50, 63, 110
• Customized：Customized
• Condition：New
• After-sales Service：in Door Installation
• Suitable Material：PP Pepvc
• Motor：Simens
• Contactor：Siemens
• Type：25m,Min High Speed Electricity Conduit PVC PE Corr
• Product：PE Corrugated Pipe
• Machine：Plastic Pipe Machine
• Production Type：Corrugated Pipe Machine
• Machine Name：Fuel Line Hose Nylon Corrugated Pipe Making Produc
• Transport Package：Wrapping Film Packing
• Specification：Customized
• Trademark：TONGSAN
• Origin：China
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. SDBGZ-32, 50, 63, 110 Customized Customized Condition New After-sales Service in Door Installation Suitable Material PP Pepvc Motor Simens Contactor Siemens Type 25m/Min High Speed Electricity Conduit PVC PE Corr Product PE Corrugated Pipe Machine Plastic Pipe Machine Production Type Corrugated Pipe Machine Machine Name Fuel Line Hose Nylon Corrugated Pipe Making Produc Transport Package Wrapping Film Packing Specification Customized Trademark TONGSAN Origin China Production Capacity 10 Sets Per Month

Product Description

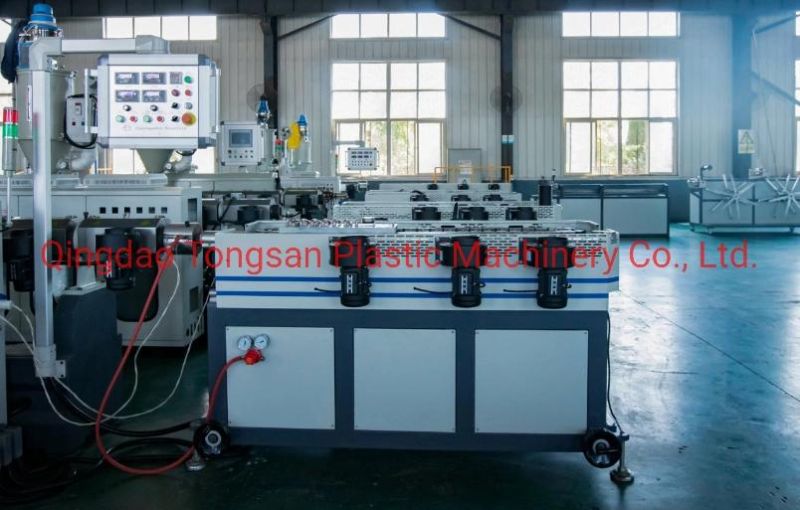

Fuel Line Hose Nylon Corrugated Pipe Making Production Machine
PP PE PVC single wall corrugated pipe making machine

Fuel Line Hose Nylon Corrugated Pipe Making Production Machine  developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.It is mainly for the production of raw materials to PVC.PP.PE small diameter single wall corrugated pipe. Die by the corresponding forming a homogeneous single-wallcorrugated bellows products. Threading pipe for wire and cable, washing machinedrains, vacuum cleaners, ventilation pipe, prestressed concrete special tubes.

The Corrugated Pipe Machine Application

1. The PVC/PE single wall corrugated pipe machine can be used to produce small diameter PVC, PP and PE single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.

The Final Product Application

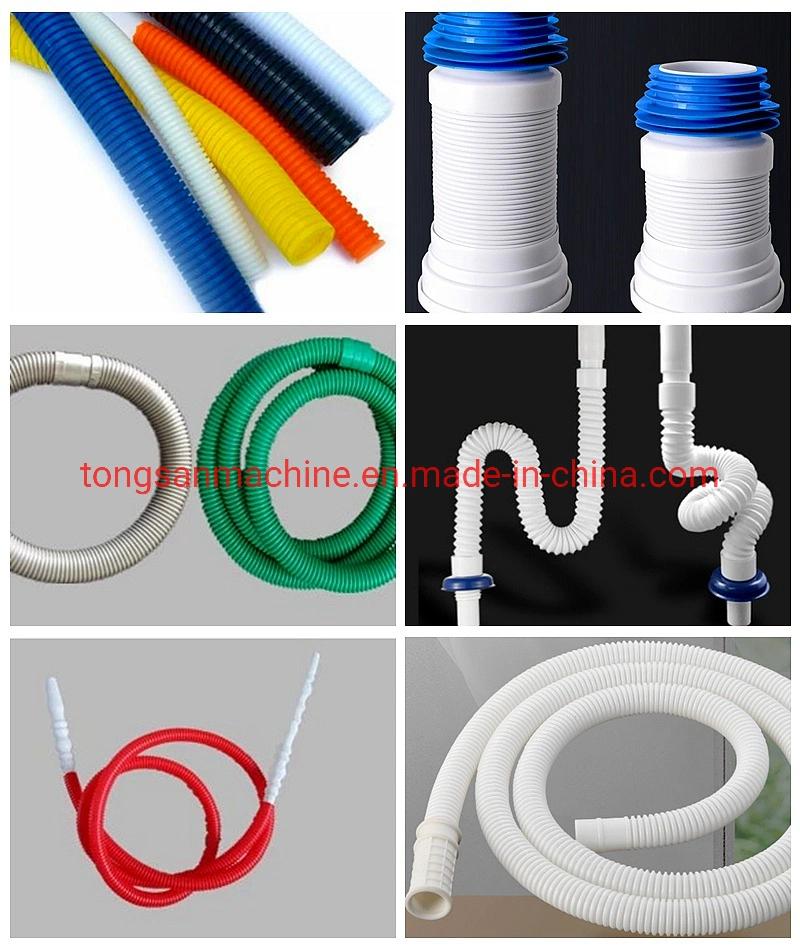

Final product widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

The Main Parts of pa pvc pe single wall corrugated pipe making production machine

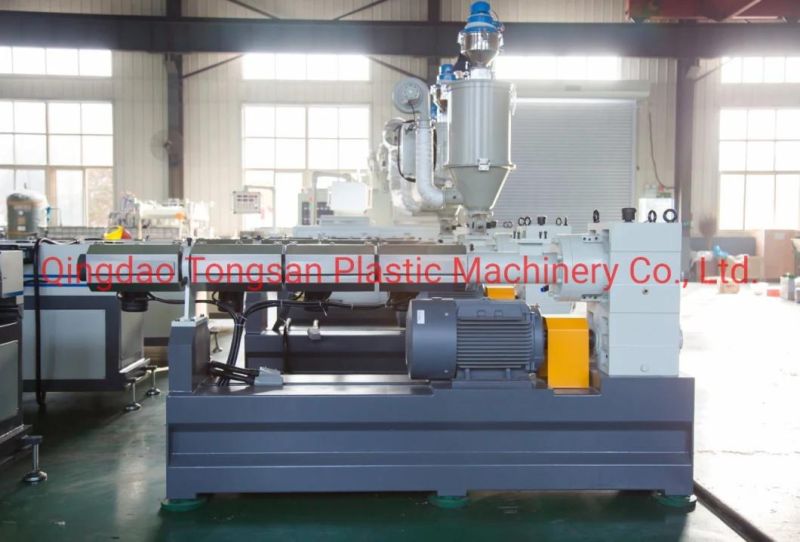

EXTRUDER PART
Vacuum feeding system,Drying loader,Various of screw and barrel

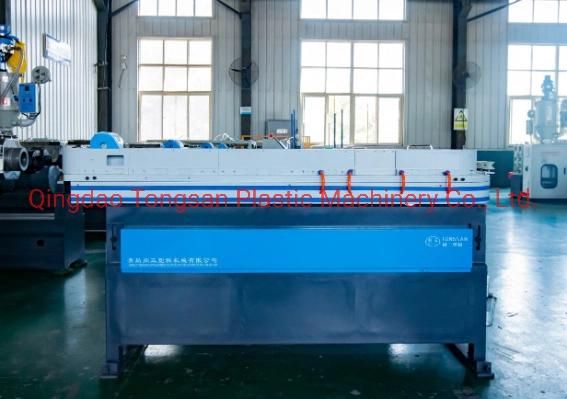

FORMING MACHINE
Normal speed forming machine
Cooling type:air cooling&water cooling

Molds

High speed forming machine
Cooling type:water cooling

Molds: one mold with 2 sizes

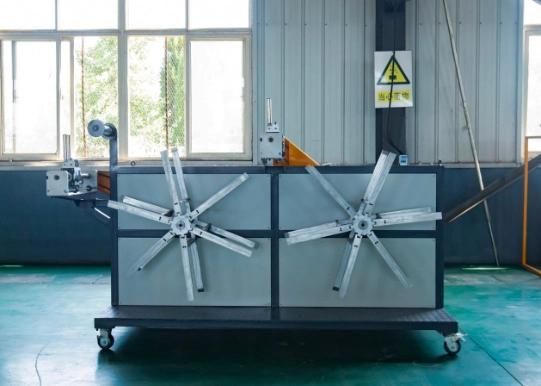

Double Position Winder

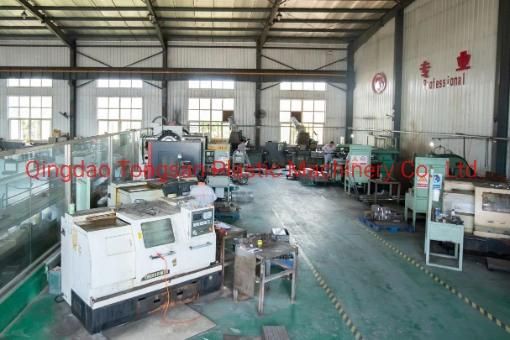

We have our own machining centering,the molds are made by ourselves.

The advantages of plastic corrugated pipe

1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.

2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;

3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;

4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its flexibility,so that it can be laid on the uneven ground continuously.

6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.

7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.

8. safe insulation, is an ideal material for the electric wire conduit.

Our Service
Pre-sale services
1.Provide the free consultation of the machine
2.Provide the standard device and the flow chart
3.According to the clients' special requirement, offering the reasonable plan and free design helping to select the machine
4.Welcome to visit our factory or the domestic clients' factory.
Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Inspect the machine before leaving the factory.
3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine
4.Train the first-line operator.
5.Provide the basic formula
After sale services
1.One year warranty
2.24 hours online service
3.Engineers available to service machinery overseas
4.Provide technical exchanging

If you are interested in our pa pvc pe single wall corrugated pipe making production machine,please contact me at any time.
now we have ready made machine in the factory.
