• Condition：New
• Machine Color：as Request
• Raw Material：PE Granule
• Inverter Brand：ABB or FUJI
• Contactor：Schneider
• Compnonents：Siemens
• Screw Material：38crmoaia
• Cooling Method：by Air
• Operator：2-4 Per Line
• Oversea Service：Available
• Extruder Type：Single Screw Extruder
• Transport Package：Packing in Wooden Case or Container
• Specification：CE, ISO,
• Trademark：Suke
• Origin：Qingdao
• HS Code：84775900
• Production Capacity：50 Sets Per Year

Basic Info.

Condition New Machine Color as Request Raw Material PE Granule Inverter Brand ABB or FUJI Contactor Schneider Compnonents Siemens Screw Material 38crmoaia Cooling Method by Air Operator 2-4 Per Line Oversea Service Available Extruder Type Single Screw Extruder Transport Package Packing in Wooden Case or Container Specification CE, ISO, Trademark Suke Origin Qingdao HS Code 84775900 Production Capacity 50 Sets Per Year

Product Description

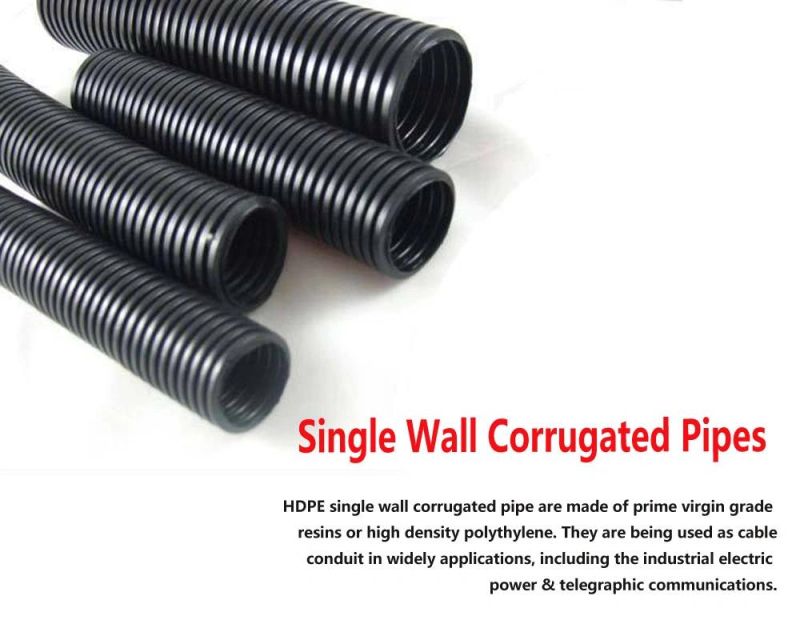

PE/PP/PVC Single Wall Corrugated Pipe Conduit Pipe Extrusion Making Extruder Machine Pipe Extrusion Production Line



MACHINE INTRODUCTION:

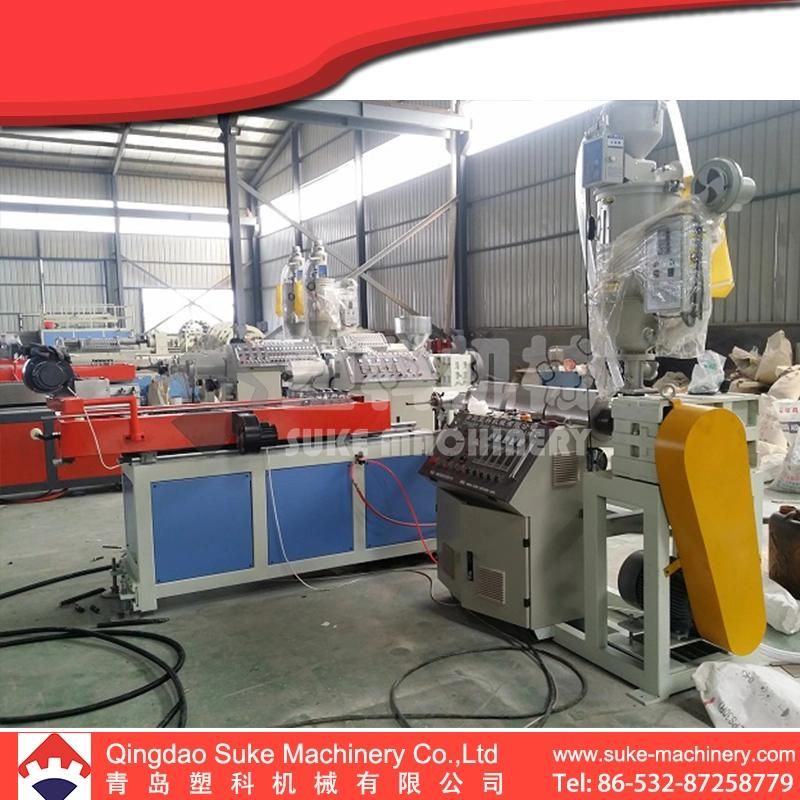

This line is used to produce pe single corrugated pipe by single screw extruder.
The raw material is PE/PP pellets.
The type of extruder depends on the specifciation of final products.
Diameter range: 16-63mm

EQUIPMENT LIST:

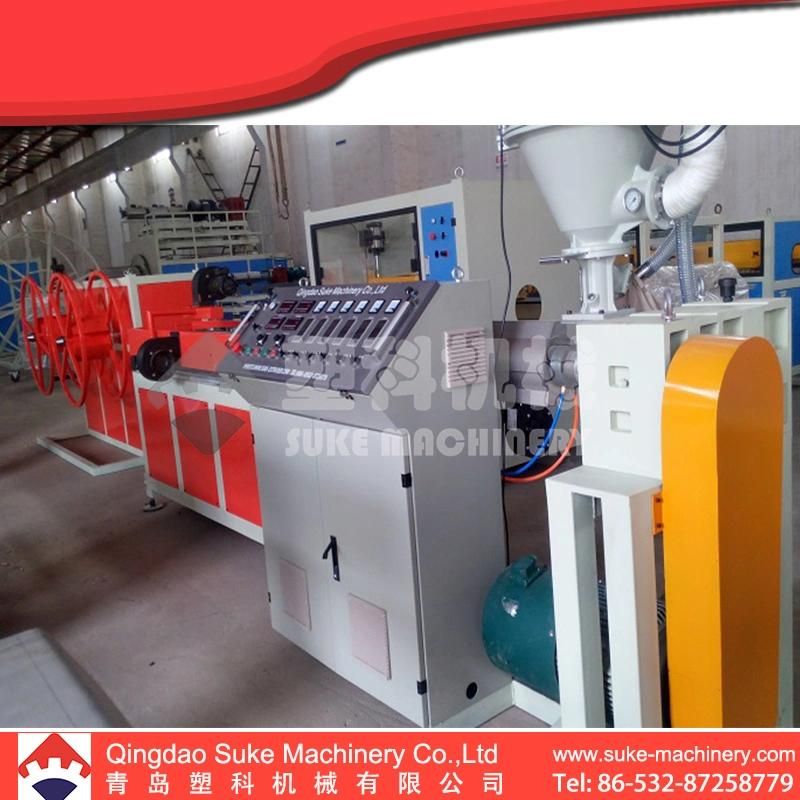

1. Single Screw Extruder
2. Extrusion Mould

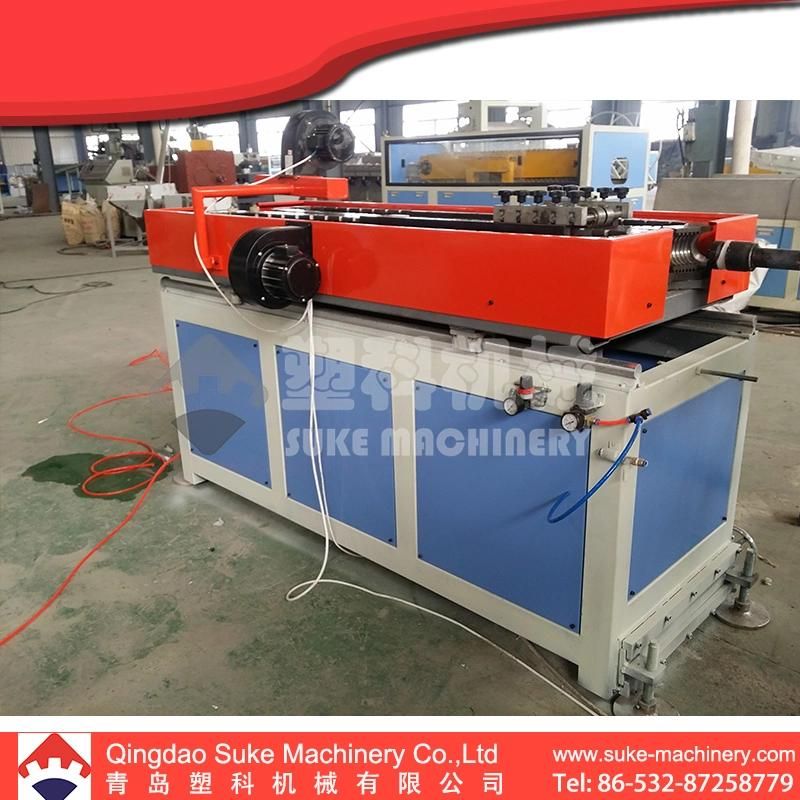

3. Shaping Machine

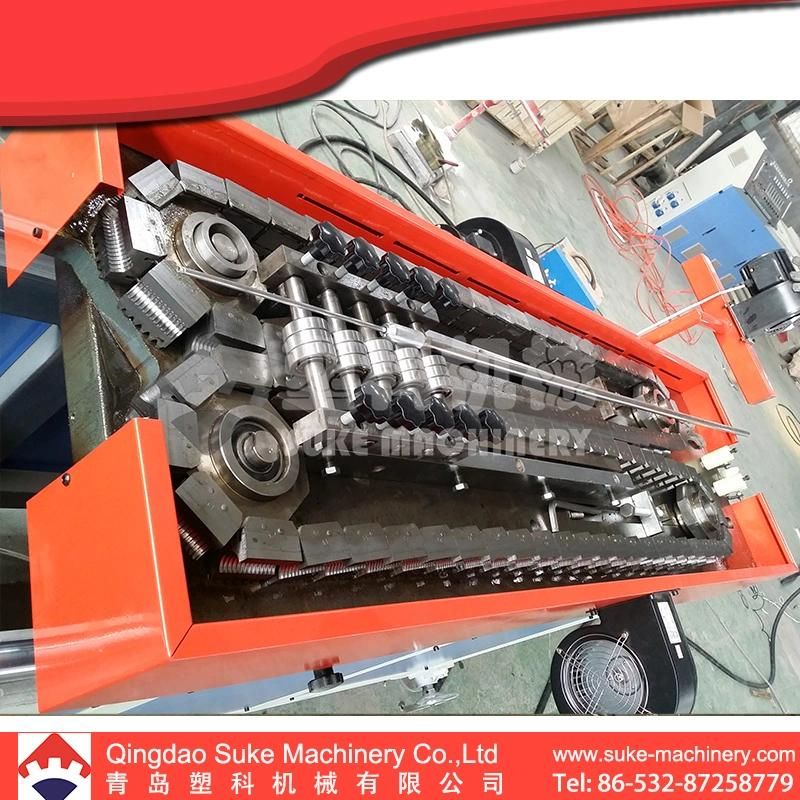

4. Shaping Module

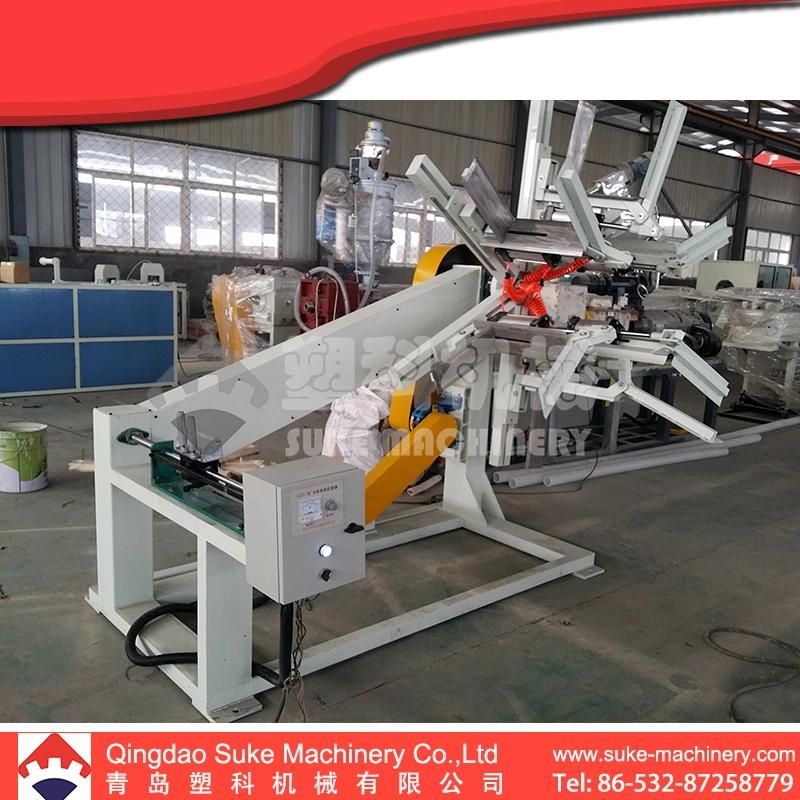

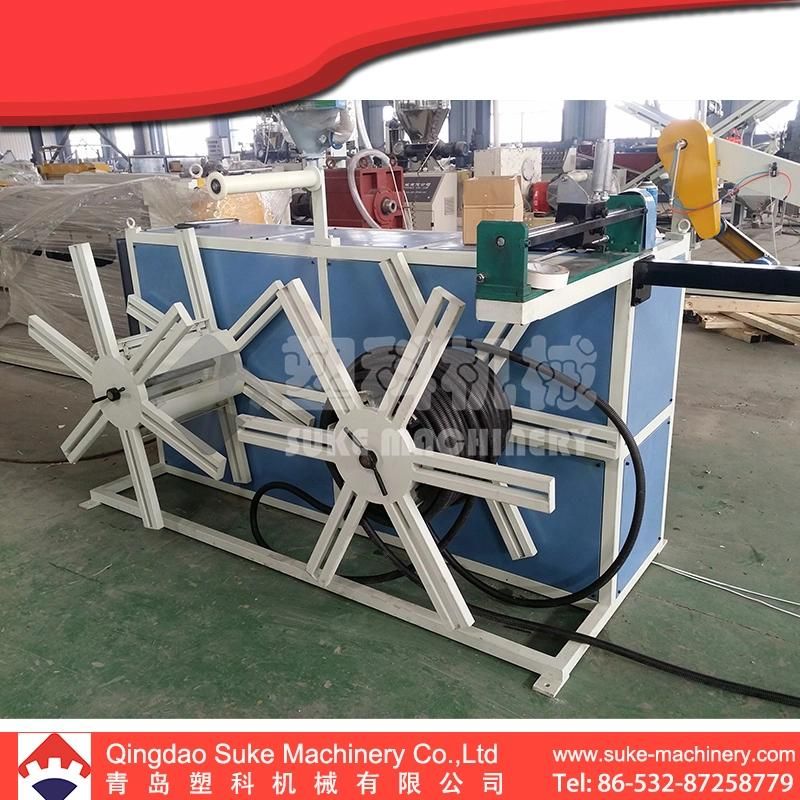

5. Winding Machine
6. Cutting Machine(as request)MACHINE TYPE:

Extruder	SJ-65/25	SJ-90/25	SJ-120/25
Range of Pipe Diameter(mm)	16-25	65-115	115-175
Water Consumption (L/H)	2000	4000	5000
Water Pressure    (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Number of Mold Blocks (Pairs)	40	50	60
Total Length of Mold Blocks (mm)	2400	5180	6216
Speed of Mold Blocks (m/min)	1-8	1-12	1-8
Dimensions(LxWxH)(Approx) (M)	10x1.25x1.5	18x1.35x1.7	21x1.55x2.5
Total Weight(Approx)   (Ton)	2	6	9.5
