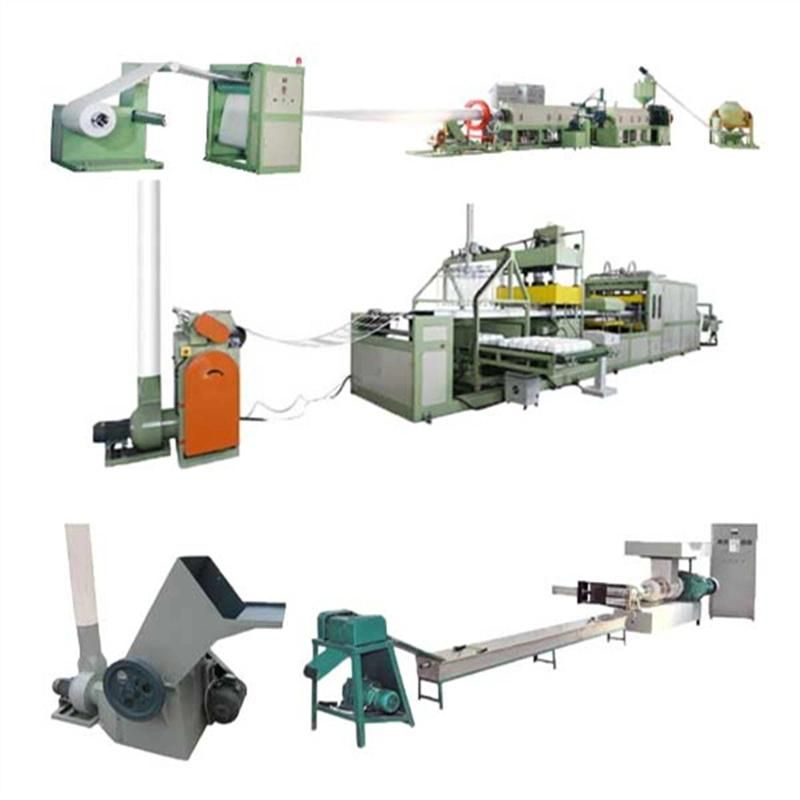

PS Foam Food Box Fully Automatic Vacuum Forming Machine
Shijiazhuang Huatao Import and Export Trade Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Warranty：One Year
- Type：EPS Foam Machine
- Raw Material：PS
- Principle：High-Pressure Air Type
- Automation：Automatic
Base Info
- Model NO.：HT-1100
- Computerized：Computerized
- Certification：ISO9001:2008
- Product Name：PS Foam Food Box Forming Machine
- Molding Method：Vacuum Forming
- Types of Products Produced：Packing Boxes
- Applicable Raw Materials：PS
- Maximum Molding Area：1100*1100 (Square Millimeter)
- Maximum Forming Depth：160 (mm)
- Transport Package：Standered Export Packing
- Specification：HT-1100
- Trademark：HT
- Origin：China
- HS Code：8477409000
- Production Capacity：50 Set,Month
Description
PS Foam Food Box Fully Automatic Vacuum Forming Machine Description
1. Feeding part: feeding method, pneumatic feeding, double feeding shaft alternate feeding, simple and safe operation. The length of the discharge is controlled by a photoelectric switch.
2. Heating part: The heating box is all packed with asbestos wool and ceramic radiant tiles. The heating box can be moved back and forth for easy maintenance. The temperature is controlled by an intelligent temperature control meter, and the heating area reaches 1100×2400mm
3. Forming part: The forming method adopts the most recent comprehensive forming of vacuum, air pressure and molding. The vacuum pump is imported from Germany, with a volume of 50L; the upper and lower molds of the hydraulic station are independently controlled; the stroke control of the molding table is controlled by a photoelectric switch; the production efficiency reaches 3-8 seconds per mold. Maximum forming area: 1000×1100(mm)
4. Blanking part: hydraulic automatic control, the maximum pressure reaches 35 tons. The worktable is controlled by a photoelectric switch. Blanking area: 1000X1100(mm)
5. Stacking collection system: The stacking part is automatically controlled by PLC, the stacking quantity is set arbitrarily, and the stacking is automatic. The collecting part is conveyed by double conveyor belts, pneumatically controlled.
6. Waste rewinding: control mode is controlled by a photoelectric switch
