High and Low Plastic Cup Thermoforming Machine Cup Making Machine

Rui'an Hengfeng Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO, ISO9001
  • Column number：Four Column
  • Molding Method：Thermoforming
  • Automatic Grade：Automatic
  • Raw Material：PP, PS, Pet, PVC, PLA,etc

Base Info

  • Model NO.：(HFTF-70T)
  • Driven Type：Electric, Pneumatic, Mechanical
  • Shaping Mode：in Molding
  • Application：Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc
  • Computerized：Computerized
  • Max Forming Area：680* 320mm
  • Thickness of Sheet：0.35-2.5mm
  • Max. up Forming Height：15mm
  • Sheet Thickness：0.35mm-2.5mm
  • Transport Package：Sea-Worthy Packing
  • Specification：CE Certificate
  • Trademark：HENGFENG
  • Origin：China
  • HS Code：8477590000
  • Production Capacity：35cycles,Min

Description

1- Max. Forming  Area680× 320mm2- Max. Down Forming Machine150mm/180mm3- Max. Up Forming Height15mm4- Sheet Thickness0.35-2.5mm5- Max. Roller  Diameter Φ 1200mm6- Air  Pressure 0.7-0.85mpa7- Water  Consumption 50L/min8- Air  Consumption 3000L/min9- Max.Speed 35Cycles/min10- Power (Three  Phase  Four  Wire)3× 380V+NP+PE. 50HZ11- Heating  Power130kw12- Main  Motor  Power11kw13- Feeding  Motor  Power 4.4kw14- Scrap  Rewinding  Motor  Power 0.55kw15- Machine  Weight 10000kgs16- Dimension 11000× 3650× 3500mm

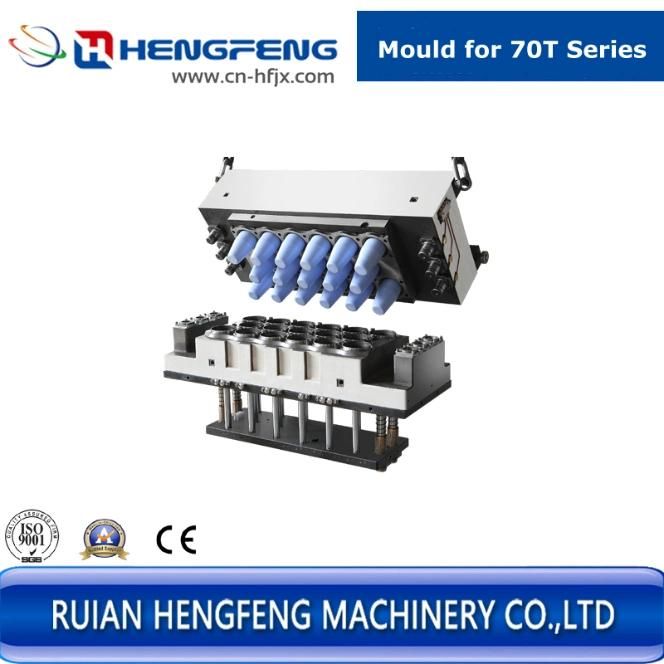

Moulds:High and Low Plastic Cup Thermoforming Machine Cup Making Machine

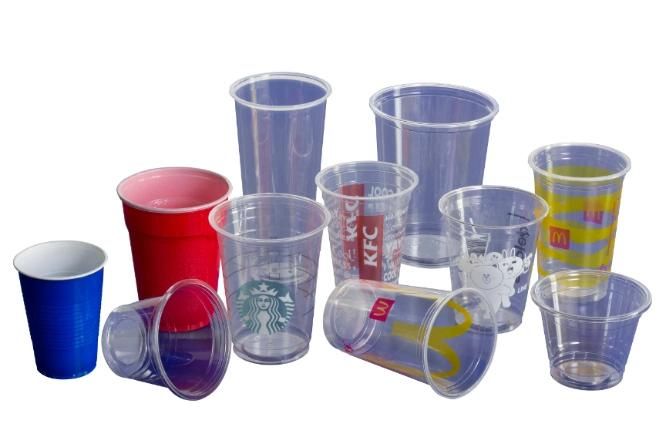

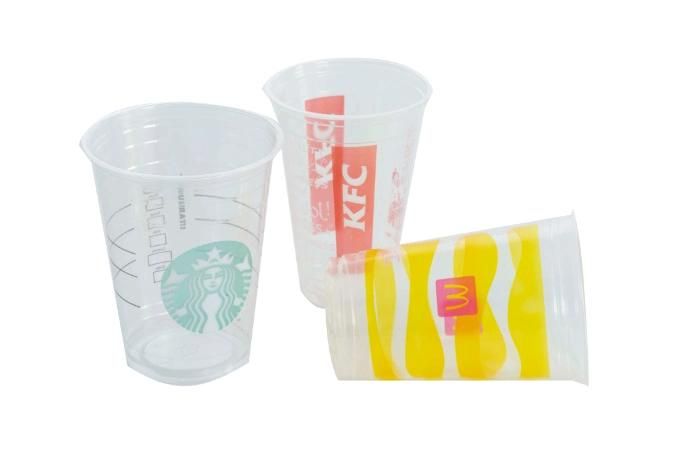

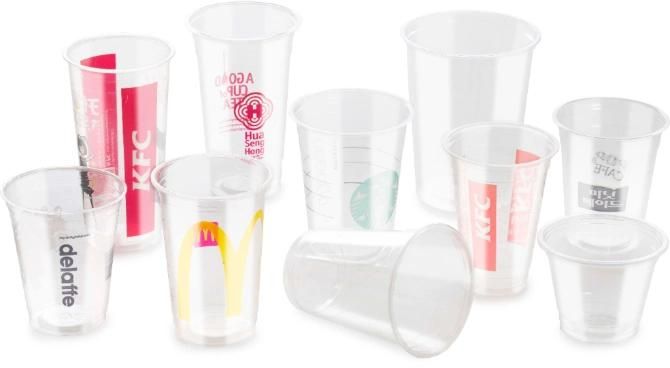

Sample:
High and Low Plastic Cup Thermoforming Machine Cup Making MachineHigh and Low Plastic Cup Thermoforming Machine Cup Making Machine
High and Low Plastic Cup Thermoforming Machine Cup Making Machine

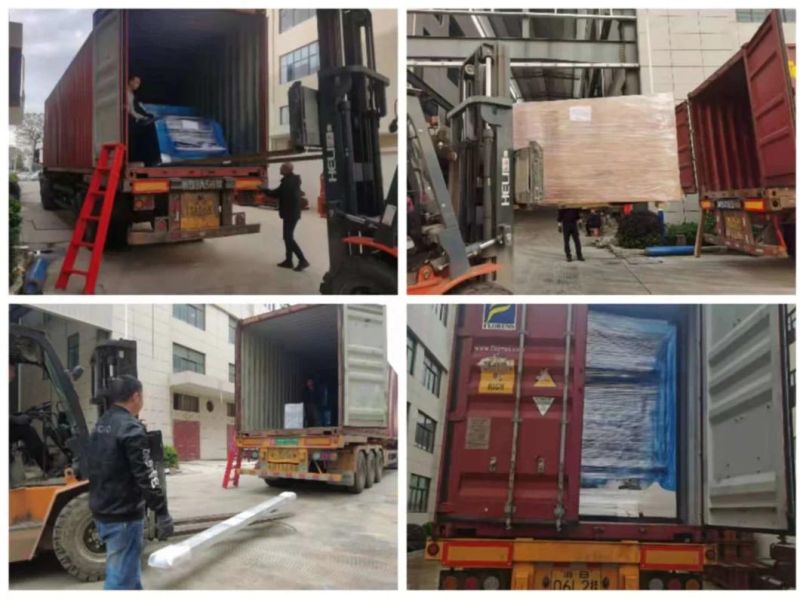

Shipping Packaging:
High and Low Plastic Cup Thermoforming Machine Cup Making Machine

Company History:

Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d

Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic

Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries

And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,

Chile, Bolivia, Saudi Arabia, Peru, etc.

High and Low Plastic Cup Thermoforming Machine Cup Making Machine
Factory Address:
NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
High and Low Plastic Cup Thermoforming Machine Cup Making Machine

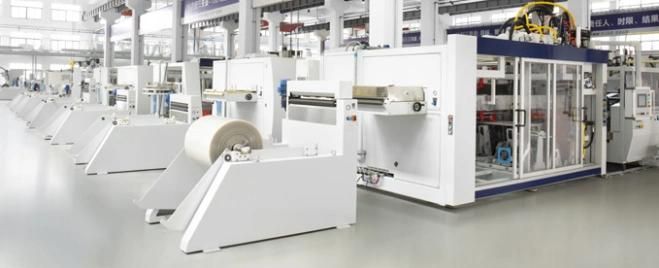

Operation:
High and Low Plastic Cup Thermoforming Machine Cup Making MachineHigh and Low Plastic Cup Thermoforming Machine Cup Making Machine

Contact person:
High and Low Plastic Cup Thermoforming Machine Cup Making Machine

FAQ:
1. Q: Are you a factory or trading company?
   A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?
   A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for   over 10 years.Other machines have included machines in production line,  such .as thermoforming machine and pp and ps extruder .
  (we can produce total production line.)

3. Q: How's your strength of your company?
   A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.

4.Q: If your company has passed some certificates?
  A: Yes, we have passed CE, ISO.
