18650 Pet Battery Casing Film Blowing Machine
Zhejiang Zhoushan Beiyang Plastic Machinery Technology Co., Ltd.- Type:PVC Film Blowing Machine
- Raw Material:PVC
- Automation:Non-Automatic
- Computerized:Non-Computerized
- Certification:CE, ISO9001:2008, QS
- Transport Package:Wooden Case Packing
Base Info
- Model NO.:sj45
- Trademark:beiyangsj
- Origin:Zhoushan Zhejiang
- HS Code:84773010
- Production Capacity:20-40kg,H
Description
Basic Info.
Model NO. sj45 Trademark beiyangsj Origin Zhoushan Zhejiang HS Code 84773010 Production Capacity 20-40kg/HProduct Description

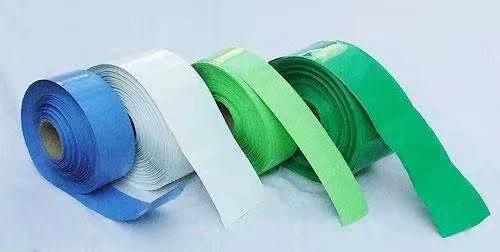

PET film is internationally recognized environmental protection heat shrinkable material, its technical indicators, physical properties, application scope and method of use are close to PET heat shrinkable film, but the price is cheaper PETG film, is currently the most advanced one-way shrink film, the transverse shrinkage rate reached 70%. The longitudinal shrinkage rate 3% smaller, and non-toxic, no pollution, is the ideal environmental protection material.This product is widely used in electric fuse, battery, inductance and other electronic components, toys and medical equipment and other light industrial products packaging protection, easy to use, with oven or hot air gun heating can shrink.
Technical Data
The unit type | SJ30-Sm250 | SJ35-Sm250 | SJ40-Sm250 | SJ45-Sm250 |
Extrusion type | SJ30*25B | SJ35*25B | SJ40*25B | SJ45*25B |
Screw diameter | Ф30mm | Ф35mm | Ф40mm | Ф45mm |
Drive motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
Heating power | 11kw | 11.5kw | 11.5kw | 12kw |
Mold size | Ф7-Ф15mm | Ф10-Ф20mm | Ф15-Ф25mm | Ф20-Ф30mm |
width | 8-40mm | 15-80mm | 30-100mm | 50-150mm |
Thickness | 0.04-0.20mm | 0.04-0.20mm | 0.04-0.20mm | 0.04-0.20mm |
Output | 5-15kg/h | 8-20kg/h | 10-30kg/h | 20-40kg/h |
