• Model NO.：PXB100B
• Bottom Blowing：Available
• Material：PP, PE, ABS...
• Total Weight：15.0t
• Output(Dry Cycle)：320 PC,Hr
• Die Head Option：Accumulator Head
• Transparent Line：Available
• Production Usage：Toys, Auto Parts, Drum, etc
• Multi-Layer：Available
• Multi-Color：Available
• Screw Diameter：100mm
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 120L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

Basic Info.

Model NO. PXB100B Bottom Blowing Available Material PP, PE, ABS... Total Weight 15.0t Output(Dry Cycle) 320 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Toys, Auto Parts, Drum, etc Multi-Layer Available Multi-Color Available Screw Diameter 100mm Transport Package Film Packing with Wooden Bottom Specification Max capacity 120L Trademark Puxin Origin Suzhou HS Code 847730100

Product Description

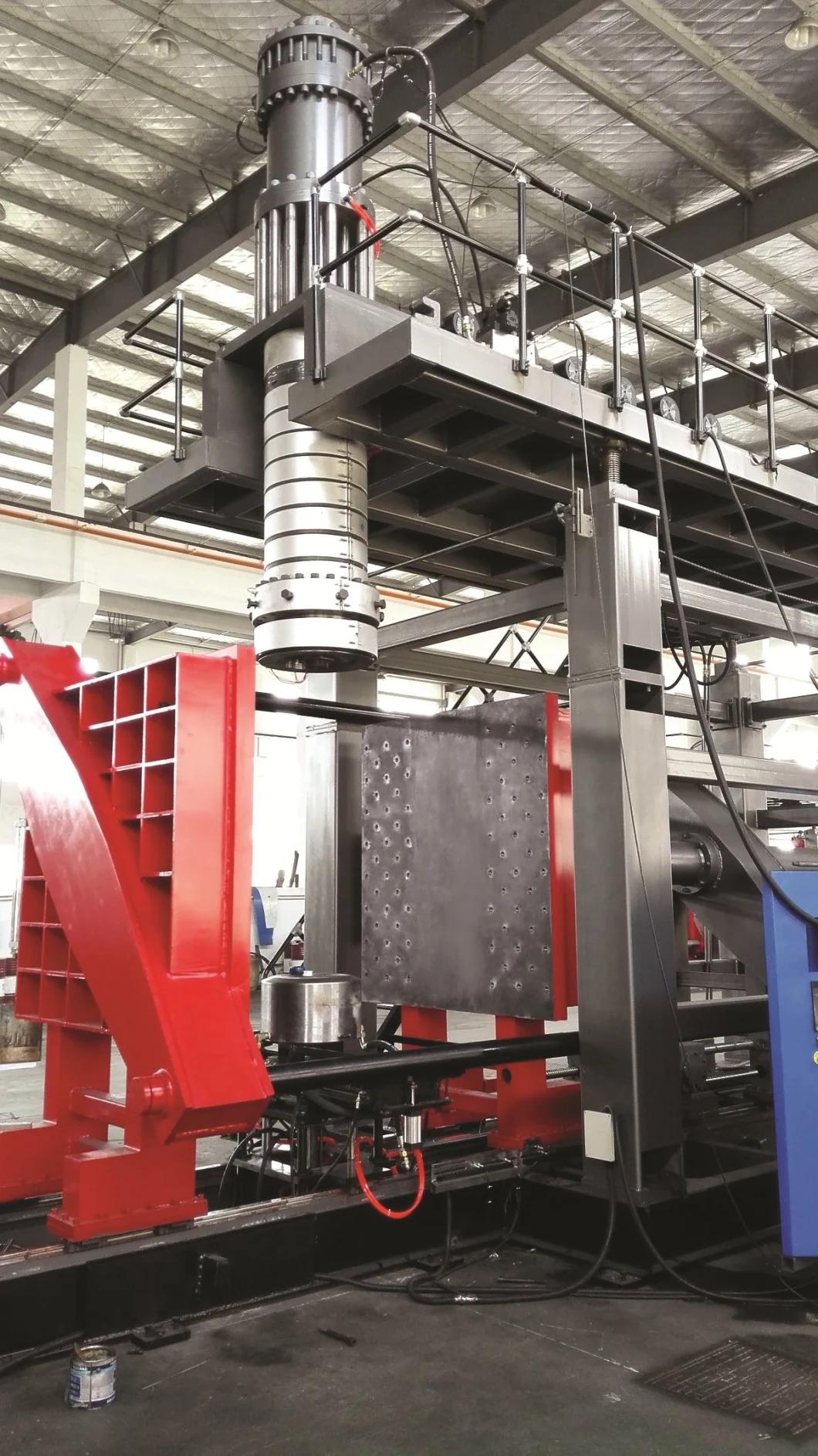

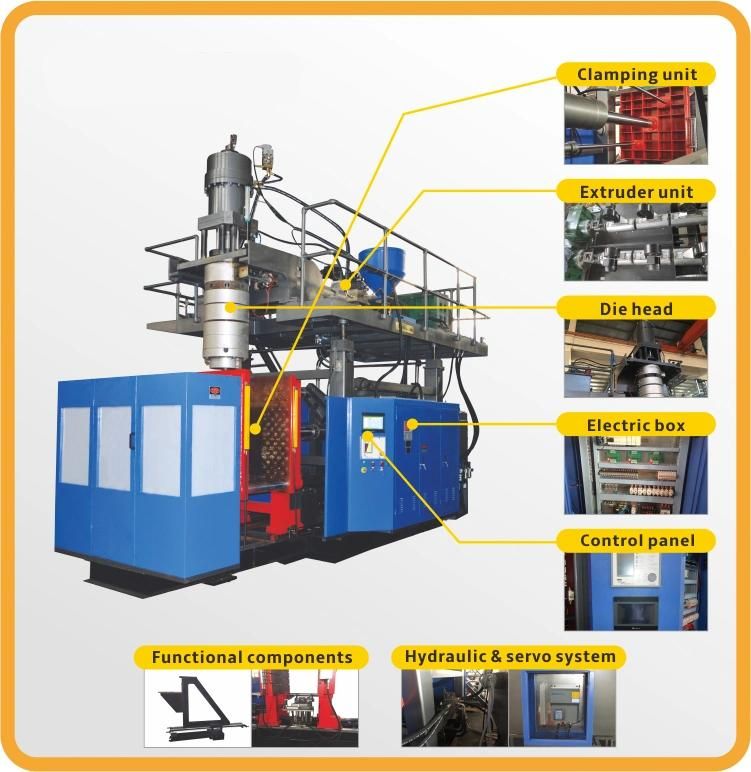

PXB100B
90L-120L Blow Molding Machine
- Double Drawbar clamping mechanism
- Perfect Usage for Chemical Drum, Road barrier, ABS car bumper
- High clamping force with short production cycle
- Patented Technology Die head system
- Optional Transparent line

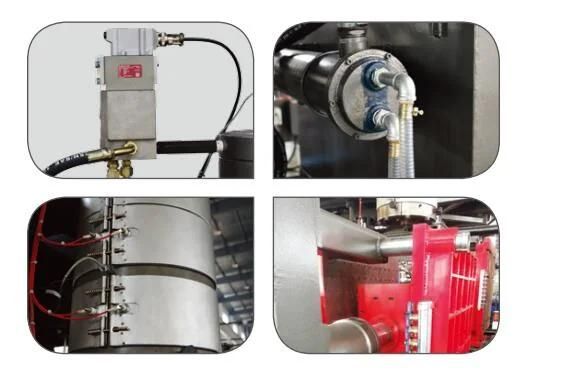

Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Parameters:


Material		PE,PP,ABS...
Max container capacity	L	120
Output(dry cycle)	pc/hr	320
Machine dimension(L×W×H)	M	6.2×2.8×4.6
Machine weight	T	15
Clamping Unit
Clamping force	kn	450
Mold platen size(W×H)	mm	1200×1200
Platen opening stroke	mm	600-1400
Platen moving stroke	mm	700
Max mold size(W×H)	mm	900×1400
Mold thickness	mm	510-650
Power
Servo oil pump motor power	KW	18.5
Servo pump displacement	L/MIN	120
Blow pressure	MPA	1
Air consumption	M3/MIN	1.8
Cooling water pressure	mpa	0.4
Water consumption	L/min	180
Average energy consumption	KW	52-60
Extruder unit
Screw diameter	mm	100
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	160-200
Number of heating zone	zone	5
Screw heating power	kw	25.1
Screw fan power	KW	0.6
Extruder motor power	kw	55
Die head
Number of heating zone for single die head	zone	5
Heating power for single die head	kw	26
Max die-pin diameter	mm	450
Accumulator capacity	L	12(15)
(HDPE) Accumulator weight(HDPE)	KG	9(11)

Delivery Time:
- No later than 65 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
