• Model NO.：HY-54,76
• Thickness of Sheet：0.15-1.0mm
• Max. Sheet Roller Dia.：710 mm
• Machine Dimension：5000*1750*2500 mm
• Warranty：1 Year
• Power Supply：AC 380 V, 50,60 Hz
• Raw Material：BOPS,PVC, Pet,HIPS,PS
• Application：Food Container, Box, Tray, Lid
• Procedure：Feeding-Heating-Forming-Cutting
• Weight：4800kg
• Transport Package：Wooden Case
• Specification：HY-540,760
• Trademark：hy
• Origin：Zhejiang, China
• HS Code：8477800000
• Production Capacity：20sets,Year

Basic Info.

Model NO. HY-54/76 Thickness of Sheet 0.15-1.0mm Max. Sheet Roller Dia. 710 mm Machine Dimension 5000*1750*2500 mm Warranty 1 Year Power Supply AC 380 V, 50/60 Hz Raw Material BOPS/PVC/ Pet/HIPS/PS Application Food Container/ Box/ Tray/ Lid Procedure Feeding-Heating-Forming-Cutting Weight 4800kg Transport Package Wooden Case Specification HY-540/760 Trademark hy Origin Zhejiang, China HS Code 8477800000 Production Capacity 20sets/Year

Product Description


I. Introduction With The Machine
HY-54/76  is a combination of mechanical, electrical and pneumatic components,and the whole system is
controlled by a micro PLC, which can be operated in man-interface.
It combines the material sending, heating, forming , cutting and stacking into one process. It has three
operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package
equipment telecommuting and memory reserve functions.

Specifications

Forming area	540×760mm
Forming depth	120mm
Sheet thickness range	0.15-1.0 mm
Sheet roller diameter	710mm
Air pressure	0.7 Mpa
Water consumption	15 Liters/min(15-20ºC)
Air consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Tri-phase, AC380V±15V, 50HZ
Preheating power	4 kw
Mould plate heating power	9 kw
Heating plate power	18 kw
Weight	4800kg
Dimensions(L×W×H)mm	5000×1750×2500 mm

II. Application Area
HY-54/76 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and PET
plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes,
cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture

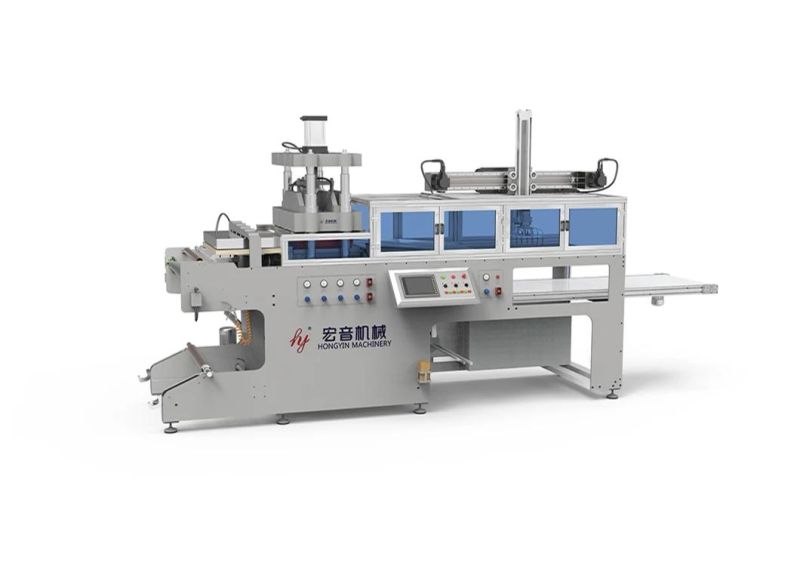

HY-54/76 Plastic Thermoforming Machine Workshop


The Machine Details

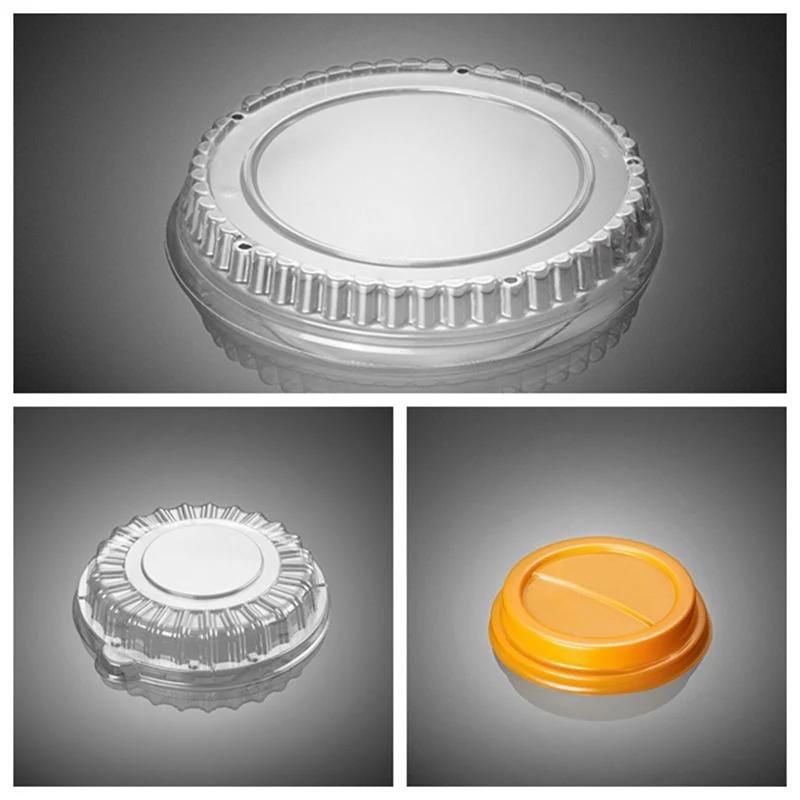

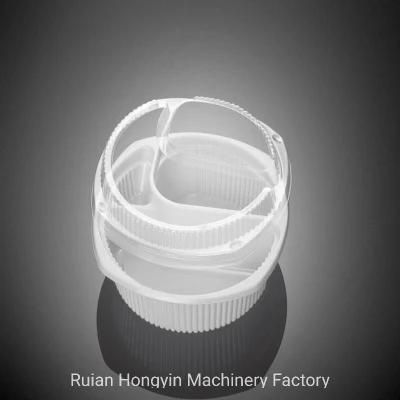

The Product Samples

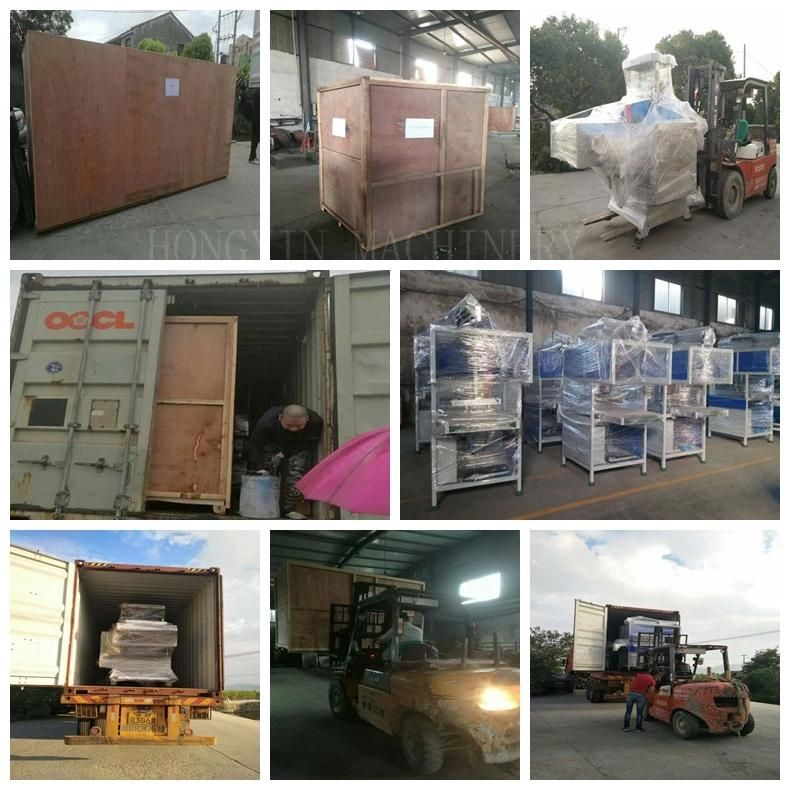

The Packing Details

IV. About Zhejinag Hongyin Machinery Co., Ltd Service.
 1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated,
and we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
 If you are interested in our machine, please feel free and contact me.
Contacter: Miss Lucy  Xu
