PSF Pet Bottle Scraps Flake Hot Prewashing Recycling Machine Kwell Group China
Zhangjiagang Kwell Machinery Co., Ltd.- Material Processed：Plastic Bottle
- Plastic Type：PET
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：ISO9001:2008, CE
Base Info
- Model NO.：PET-3000
- Power(W)：260kw
- Humidity：Less Than 1%
- Flake Size：Less Than 15mm
- Final Product：Cleasn Pet Flakes
- Voltage：380V
- Weight：5-10t
- Delivery Time：30 Working Days
- Warranty：12 Month
- Converter：ABB
- Transport Package：Regular Seaworthy Packing
- Specification：2.8*2.8*2.89m
- Trademark：KWELL
- Origin：China
- HS Code：8477800000
- Production Capacity：50 Set Per Year
Description
2. Estimated Plant Parameters:
Machine process flow introduction:
Bottle bales→Bale Opening→Trommel Filtering→Label Removing→Bottle Pre-washing→Manual Sorting→Wet Crushing→Floating Washing→Drying→Hot Flotation Washer→Drying→Continuous Friction→Continuous Floating Washing→Drying→Label&Dust remover→Flake Optical Sorting→
Packing→Clean Flakes
Machine Equipment List and photos:1. De-laber
Bottle bale opening
2.Belt conveyor
Put the material on the moving belt, which will convey the bottle into label remover

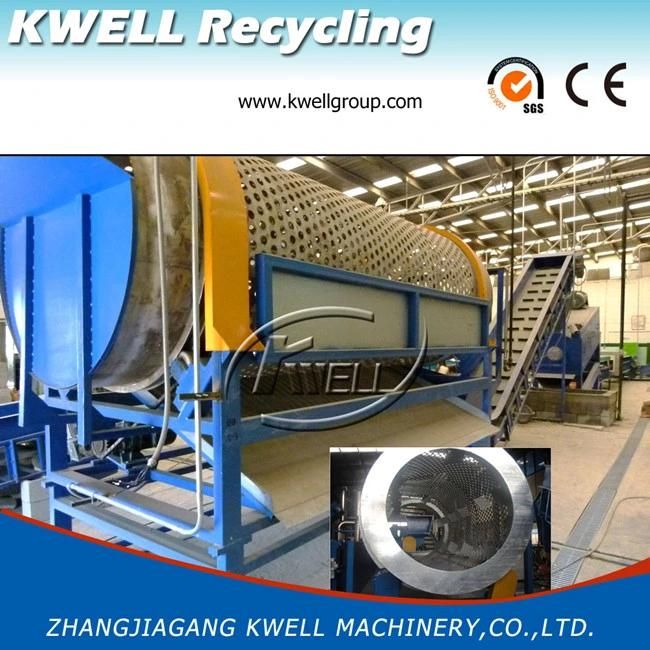

3. Trommel
Removing rock, stone, dust, loosen caps and small metals, especially, the iron will be removed by high speed

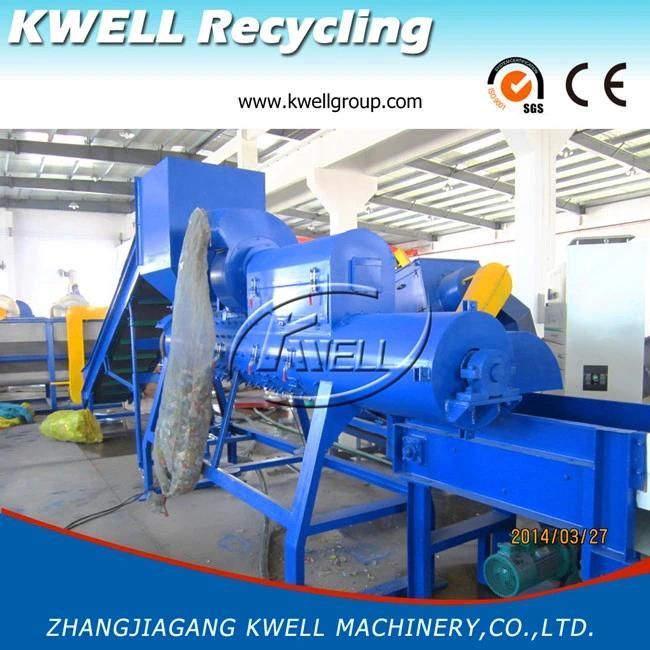

4.Bottle label separator
Removing labels from bottles
5.Manual Select working table
IF the label still in the bottle, worker can remove the label by hand
6.Belt conveyor
Put the material on the moving belt, which will convey the bottle into crusher

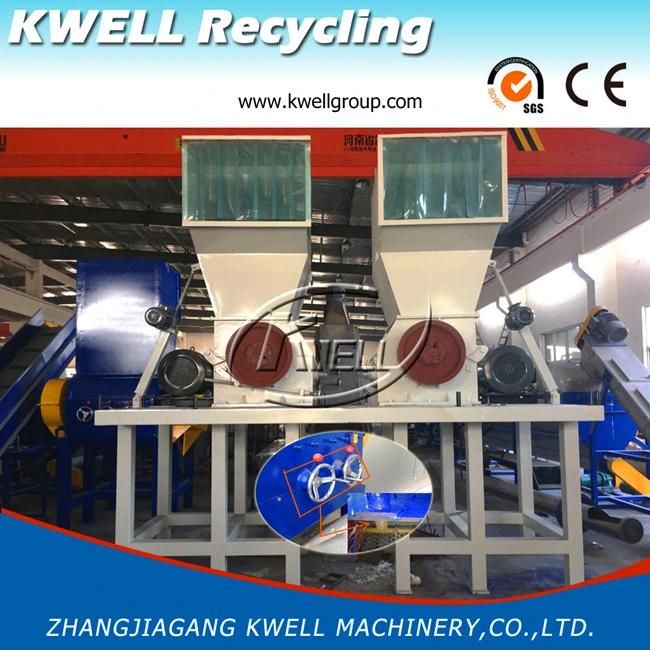

7.Crusher
Crush the material.
8.Screw loader
Put the flakes into the Hot washer to clean.
9.Floating washer
Cleaning flakes to remove chemicals and separating out rest labels and caps
10.Hot washer
Connected with steam boiler. Steam is supplied into washing tank to heat water and flakes. Hot water makes waste; label and glue loosen from bottles.
11.Friction washer
After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
12.Centrifugal dryer
Rejection the water from the flakes, moisture content is less than 2%

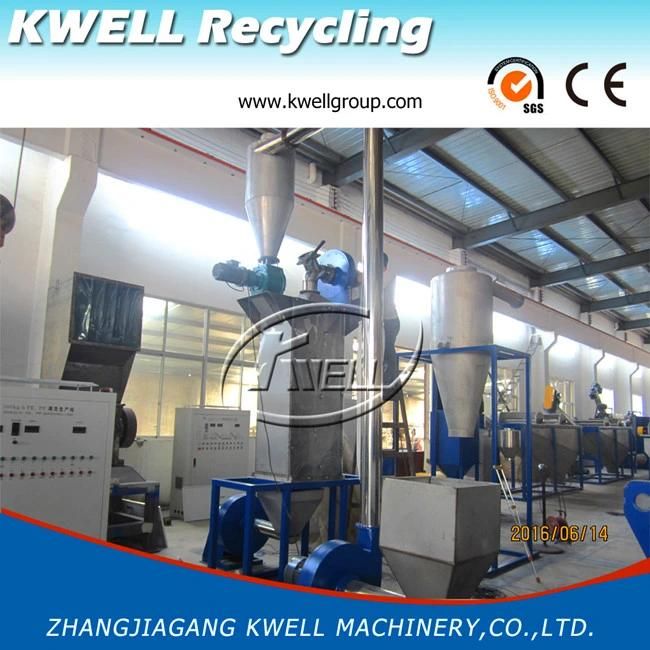

13.Pipe drying system
Hot air drying
14.PVC (label) separator
Used for the PET bottles, round and pressed bottles,effective more than 98%,save energy and labor,without water
15.Storage bunker
Storage materials

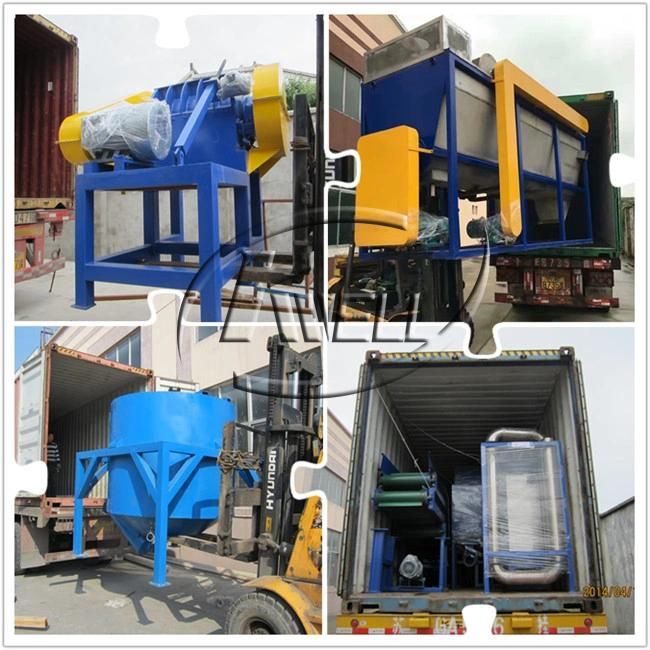

Machine packing details:
Working process:
About our service:
PET Bottle washing line Before-sale
- Introduce products and applications detain
- Recommend suitable solution
- Provide with reference information
- Offer lab for test
- Provide with layout and engineering conditions
- Inform the project processing status
- Offer other documents
1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information
Why choose us:
1. Lower investment cost for a high quality and durable machine;
2. Low energy consumption with high production output;
3. Overseas installation and training are available;
4. Machine warranty with spares in stocking and in-time delivery;
5. Fast machine delivery and installation: KWELL produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an KWELL recycling machine is 30 days.
