ABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion Line

Qingdao Leader Machinery Co., Ltd.
  • Warranty：12 Months
  • Type：Sheet Extruder
  • Plastic Processed：ABS
  • Product Type：Granulating Extruder
  • Feeding Mode：Multiple Feed
  • Assembly Structure：Integral Type Extruder

Base Info

  • Model NO.：LMSB-150,90
  • Screw：Multi-Screw
  • Engagement System：Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Main Electrical Parts：ABB, Omron, Rkc, Schneider, FUJI, Delix etc.
  • Customized：Customized
  • Application：Housing Waterproof, Architecture Engineering
  • Transport Package：Wooden Pallets and Cases and Films
  • Specification：400-800kg,H
  • Trademark：Leader Machinery
  • Origin：Qingdao of China

Description

Main extruder model150/90Main driving motor385kwCo-extruder model65/33Co- extruder driving30kwSheet width1800mmSheet thickness1-6mmOutput>800kg/hInstalled power400kwABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion Line

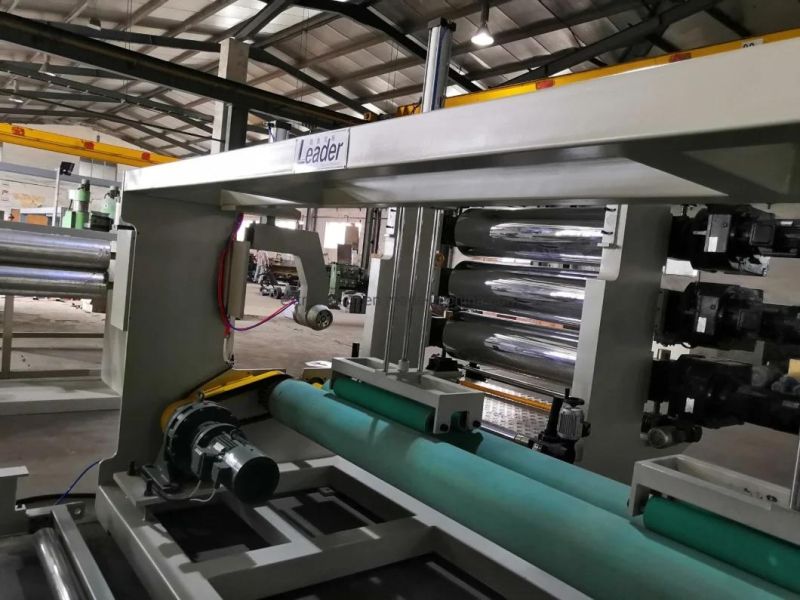

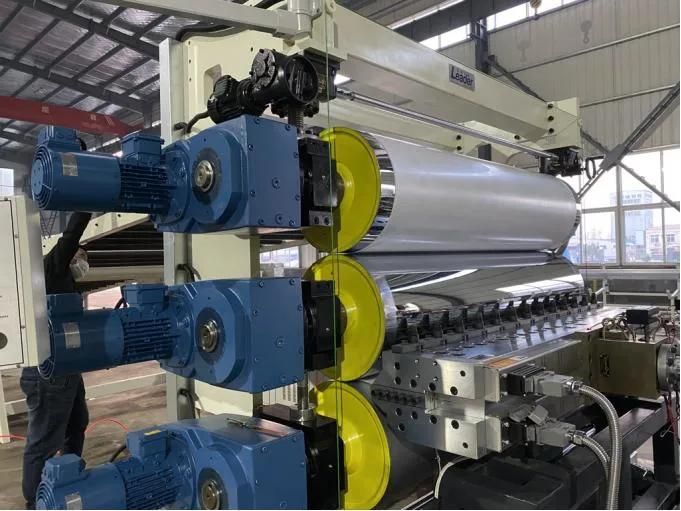

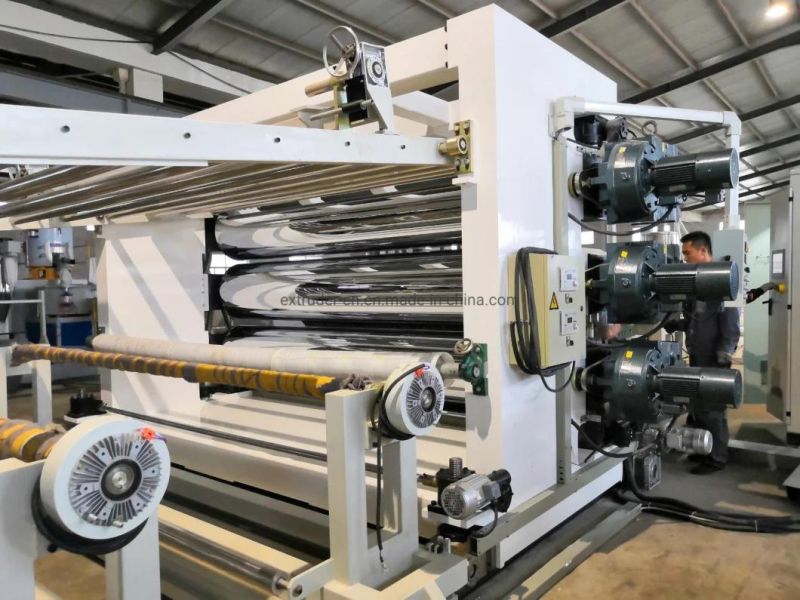

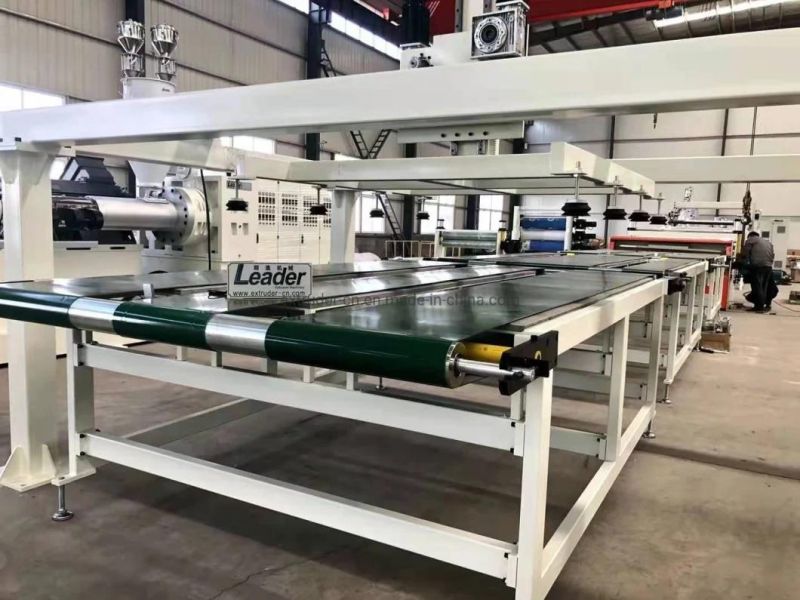

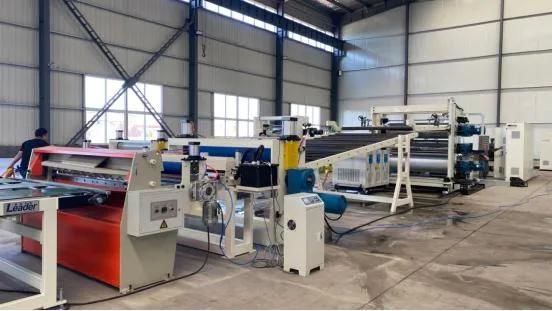

Configuration of this complete line1.LMSJ-120/35 Single screw extruder with degassing unit1 set  2.LMSJ-65/33 single screw extruder for main layer1set  3. Hydraulic exchanging units1 set4. melting gear pump1 sets5.T-type die head (1300mm width) with width adjusting blocks1 set 6. Three roller calendar1 set  7. Roller temperature controller with Siemens PLC control1 set8.Nonwoven pay-off unit2 sets9.Cooling roller conveyor1 set 10. Edge trimming unit1 set11. Online thickness measuring units1 set12.Take off/hauling off machine1 set  13. Meter counter1 set14. Cross guillotine1 set15. Coreless friction winder1 set16.Electrical control system1 set17.Spare parts list1 set
ABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LinePART 3:COMPANY CERTIFICATIONS OF:
ABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LinePART 4:COMPANY CERTIFICATIONS OF:
ABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion Line

ABS/HIPS Sheets (width&thickness: 1950mm*1-6mm or customized) Co-Extrusion LineThe 34th International Extrusion on Plastics and Rubber Industries


OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
