• Model NO.：PXB40
• Extrusion System：Hard Gear Surface Decelerator + Japan Inverter
• Auto Deflashing：Available
• Total Weight：3.2t
• Output(Dry Cycle)：1200 PC,Hr
• Die Head Option：Single, Double, Tri-Head, Tetra-Head
• Transparent Line：Available

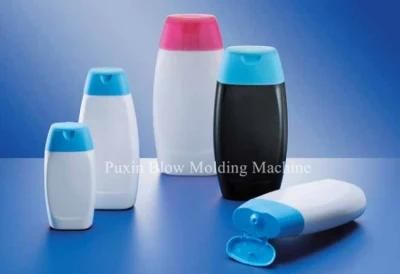

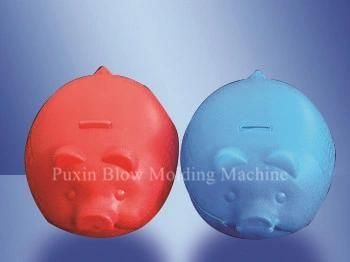

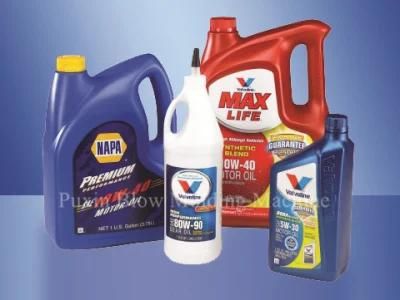

• Production Usage：Bottle, Toy, etc
• Multi-Layer：Available
• Multi-Color：Available
• Screw Diameter：40mm
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 1L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

SpecificationsMaterial PE,PP, PVC, PAMax container capacityL1Number of dieSET1,2,3,4Output(dry cycle)Pc/hr1200Machine Dimension(LxWxH)M2.5x1.5x2.3Total weightT3.2Clamping UnitClamping forceKN33Platen opening strokemm100-300Platen sizemm260x300Max mould size(WxH)mm330x300Mould thicknessmm110-150PowerMax driveKW11.5Oil pump motor powerKW4Cooling water pressureKW0.2-0.3Air pressureMPA0.6Air consumptionM3/min0.4Average energy consumptionKW7Extruder unitScrew diametermm40Screw L/D ratioL/D24Melting capacityKg/hr20Number of heating zonezone2Extruder heating powerKW6.8Extruder driving powerKW7.5DieNumber of heating zonezone3Power of die heatingKW3Max die-pin diametermm40Center distance of double diemm100
Delivery Time:
- No later than 30 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
