0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine

Jiaxing Junsheng Machinery Co., Ltd.
  • Type：Sheet Extruder
  • Plastic Processed：PE
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：JC-EPE120
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Non-Computerized
  • Output：80-180kg
  • Thickness：0.5-7mm
  • Width：600-2000mm
  • Material：LDPE
  • Transport Package：Packed in Roll
  • Specification：20*2.2*2.4m
  • Trademark：JC foam
  • Origin：Chongqing
  • HS Code：8477800000
  • Production Capacity：1000000 Month

Description

Basic Info.

Model NO. JC-EPE120 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Output 80-180kg Thickness 0.5-7mm Width 600-2000mm Material LDPE Transport Package Packed in Roll Specification 20*2.2*2.4m Trademark JC foam Origin Chongqing HS Code 8477800000 Production Capacity 1000000 Month

Product Description

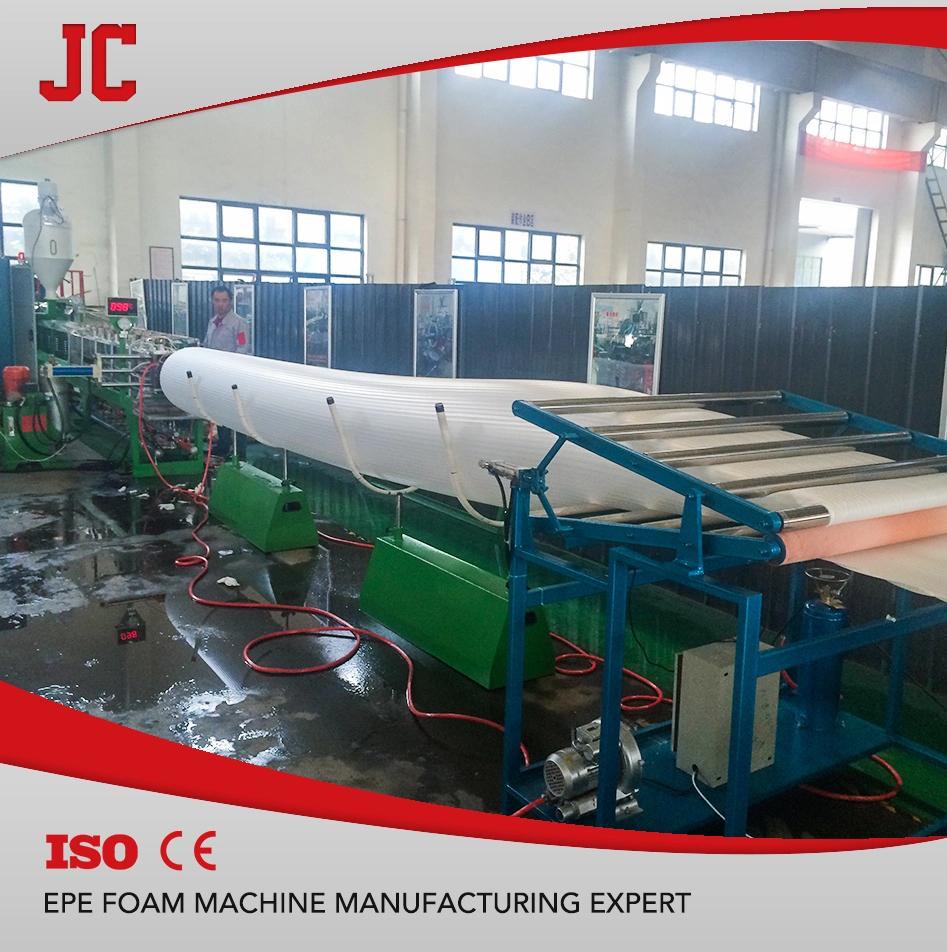

0.5-5.5 thickness EPE Foam Sheet Extrusion Machine :

1.Introduction:
JC serious EPE foam sheet machine owns more than 20 years experice in EPE foam sheet machine. Can design and produce different model machines accoring to customers' need.

This machine is mainly used to produce EPE sheet. Using LDPE granule, by process of heating, melting, extruding, curing, foaming and forming to stick, tube, U type, V type epe foam sheet foaming extruder and fruit net. its main features are noise and heat insulation, cushion protection, friction avoid, water, decay and moisture resistance, good elasticity, etc. It can make 0.3-30mm sheet and also can produce all kinds of packing and filling materials by coating or laminating.

0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine

2.Technique data:
*  Resin applied: LDPE
*  Capacity of extrusion: about 80-180kg/hr
*  Thickness of sheet: about 0.5-8mm
*  Width of sheet: depending on thickness of sheet
* Density of sheet: 15-40kg/m3
*  Speed of production line: 10-80m/min
*  Specifications of power: 3 phases × 380V × 50Hz
0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine
0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine
0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine
0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine

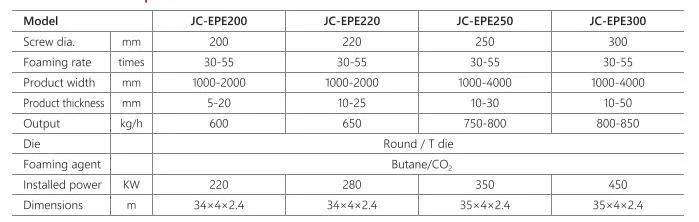

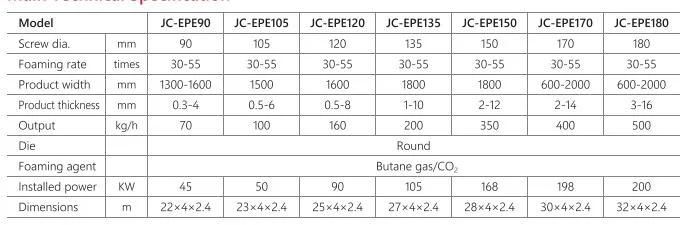

3. Machine model:

0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine
0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine

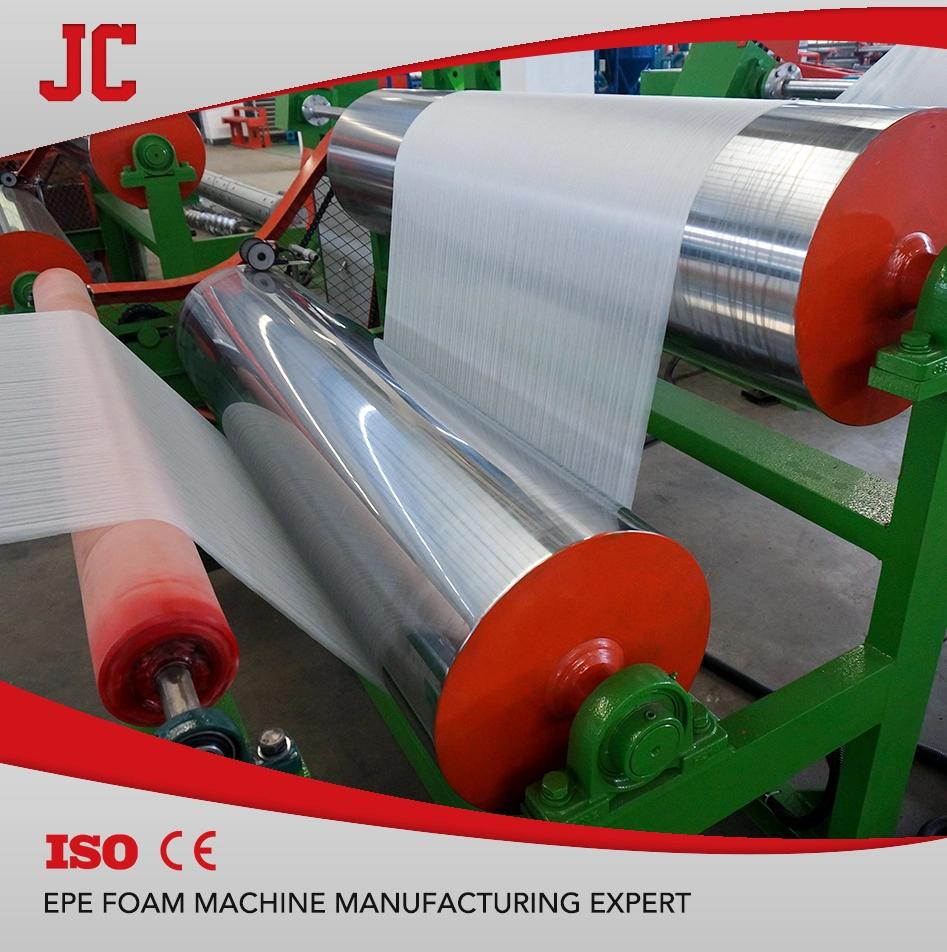

4. EPE Foam Machine details:


5. FAQ:
Q1:Why I choose your factory?
We engaged in EPE foam machinery production more than 20 years.
Professional engineer team can provide suggestions  and service timely.
Own products factory, always supply new idea and new products to cutmers.

Q2: How about the delivery time?
According to customers' need, usually 25-30 working days.

Q3: What's your payment terms?
Usually, we accept T/T.
0.5-5.5 Thickness EPE Foam Sheet Extrusion Machine

6. Contact:


There's machine running in our factory everyday, welcome to our factory anytime!
