Fully Automatic Sponge Vertically Cutter Machine (XLQ-4LB)
Guangzhou Xidengbao Mattress Machinery Co., Ltd.- Type：Sponge Foam Machine
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
- Blade Length：10180mm
- Baffle Moving Range：2100mm
Base Info
- Model NO.：XLQ-4LB
- Cutting Thickness：3-100mm
- Baffle Moving Speed：1.5m,Min
- Transport Package：Wooden Case
- Trademark：XIDENGBAO
- Origin：China(Mainland)
- HS Code：8477800000
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. XLQ-4LB Cutting Thickness 3-100mm Baffle Moving Speed 1.5m/Min Transport Package Wooden Case Trademark XIDENGBAO Origin China(Mainland) HS Code 8477800000 Production Capacity 20 Sets/MonthProduct Description
Fully Automatic Sponge Vertically Cutter Machine(XLQ-4LB)Product Presentation:
The machine adopts head moving, table fixed form,movable cutting tool rest with synchronous belt drive, work platform single damper using ball screw(can choose double baffle), improve the cutting precision, at the same time for processing all kinds of EVA and pearl cotton. The machine adopts frequency control of motor speed automatic control, the control platform with PLC and human-computer interface, with a high degree of automation, cutting precision, safe operation etc.
Technical Specification:
| Blade length | 10180mm |
| Baffle moving range | 2100mm |
| Total power | 7.24kw |
| Baffle moving speed | 1.5m/min |
| Inner worktable size(W*L) | W2440mm*L2440mm |
| Outer worktable size(W*L) | W2440mm*L2440mm |
| Machine external size(L*W*H) | L6450*W4200*H2665mm |
| Available cutting size | 2100mm |
| Cutting thickness | 3-100mm |
| Available cutting height | 1100mm |
| Blade frame moving speed | 0-20m/min |
Company Exhibition:

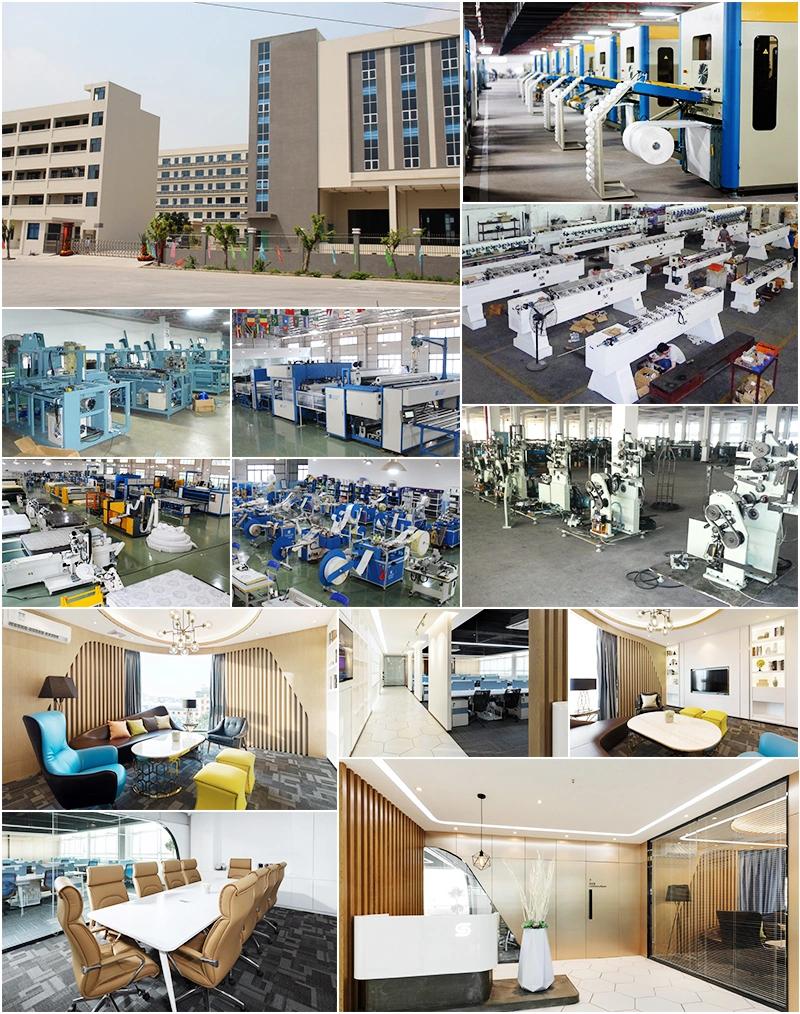

Factory Photos
