• Machine Weight：2.8t
• Certification：CE, ISO9001:2008
• Width of The Film：200-600mm
• Name：ABA Film Co-Extrusion Blowing Machine
• The Max Output：85kg,H
• Power Consumption：25kg,H
• Transport Package：to Be Packed in Wooden Box
• Specification：6.8*4*7.5m
• Trademark：CHENGHENG PLASTIC MACHINERY
• Origin：China
• HS Code：8477300000
• Production Capacity：99 Sets,Year

Basic Info.

Machine Weight 2.8t Certification CE, ISO9001:2008 Width of The Film 200-600mm Name ABA Film Co-Extrusion Blowing Machine The Max Output 85kg/H Power Consumption 25kg/H Transport Package to Be Packed in Wooden Box Specification 6.8*4*7.5m Trademark CHENGHENG PLASTIC MACHINERY Origin China HS Code 8477300000 Production Capacity 99 Sets/Year

Product Description

We are specialized in producing PE/PP film-making and film printing machines in plastic
industry, Having experience of more than 20 year, we provided to customer our good quality
machinery with 5-year- guarantee.

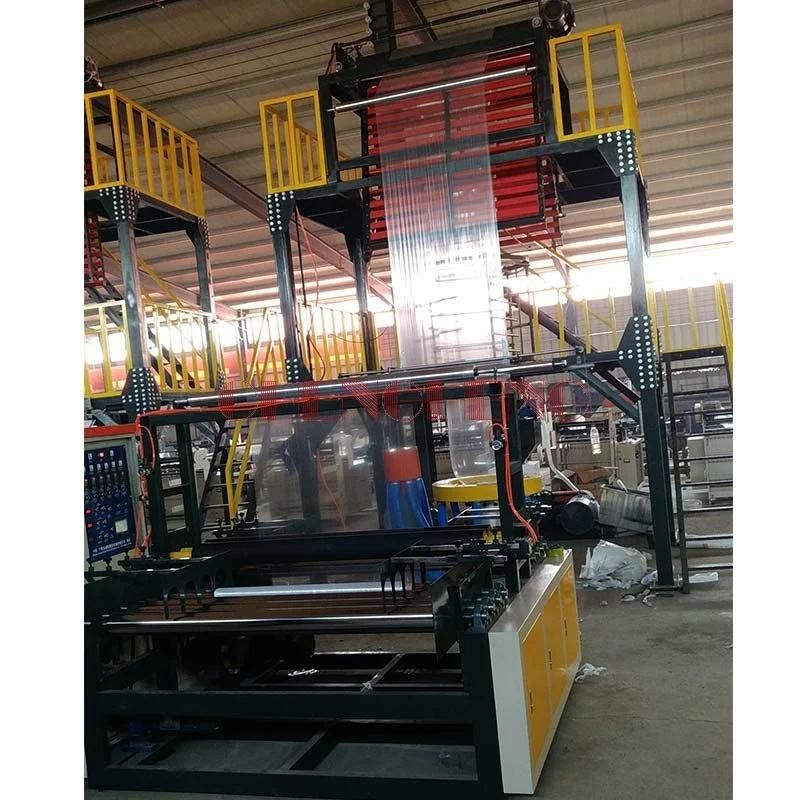

               CHSJ-MF mulch blown film machine



Model	MF-50/1300    MF-60/1600  MF-75/1800
Film width (mm)	300-1200mm  500-1500mm 500-1700mm
Film thickness	0.006-0.08mm
max output	55kg/h   75kg/h  85kg/h  According to different width,thickness of film, die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE
Diameter of screw	Φ50   Φ60  Φ75 SACM 645 ,bimetallic ,five years guarantee
L/D ratio of screw	30/1
Main motor	18.5kw  30kw  37kw   100% Original three-phase variable frequency motor Equipped with inverter control
Take up roller(mm)	1300mm  1600mm   1800mm
Weight	2800kg  3500kg  4200kg
Machine size	6*3.6*5.8  6.5*4*6.2   6.5*4.2*7.5

    Note:the above specifications,dimensions&design characteristics are subject to change without notice
Optional device:

Automatic Hopper Loader
Film Surface Treater
Rotary Die
Oscillating Take Up Unit
Two Stations Surface Winder
Chiller
Heat Slitting Device
Gravimetric Dosing Unit
IBC(Internal Bubble Cooling Computer Control System)
EPC(Edge Position Control)
Electronic Tension Control
Manual mechanics screen changer
Edge material recycling machine

Product feature
1.The whole machine is square structure
2.Traction inverter control, host frequency conversion control, (optional fan frequency control, winding frequency control) 100% inverter motor + frequency  converter control
3. Full enclosed overtemperature cooling device
4. Brand  Industrial electricity
5. Lambdoidal board
6:Ceramic heater




You are welcome to raise any suggestions and questions for more details by sending us mails

or posts at any time.
