• Total Power(W)：160kw
• Forming Area：760mmx480mm
• Sheet Index：Servomotor
• Stacking：Servomotor
• Transport Package：Plastic Film
• Specification：CE
• Trademark：Sinoplast
• Origin：China,Ruian,Wenzhou
• HS Code：8477409000
• Production Capacity：20 Sets Per,Year

Basic Info.

Total Power(W) 160kw Forming Area 760mmx480mm Sheet Index Servomotor Stacking Servomotor Transport Package Plastic Film Specification CE Trademark Sinoplast Origin China/Ruian/Wenzhou HS Code 8477409000 Production Capacity 20 Sets Per/Year

Product Description

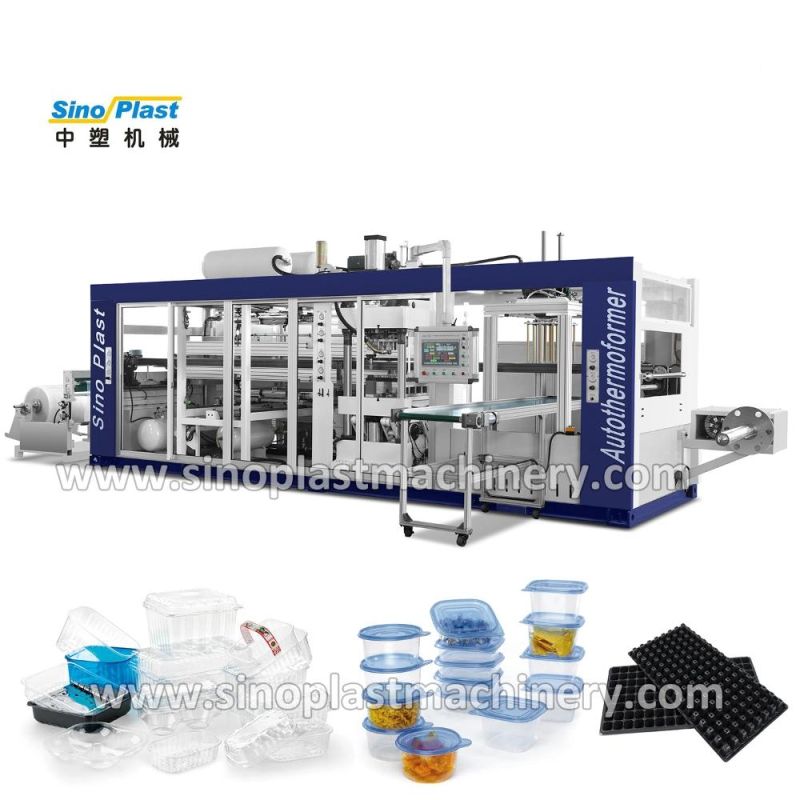

Automatic 2 Stations Air Pressure & Vacuum Thermoforming Machine
I. Usages:
This thermoforming machine can make various kinds of products with PP, PS, PET, PVC sheet, such as lids, trays, clamshell containers, bowls, blisters, etc. You could make different products with different moulds.
We could make 2 stages, 3 stages, 4 stages of thermoforming machine depends on customer's request.
This thermoforming machine combines sheet transporting (sheet index), thermoforming, hole punching (optional), cutting and stacking into one process. We could also design packing machine work online with the thermoforming machine which could reduce labor cost.
II. Main Technical Parameter:

Model	SP-760A
Max. Forming Area	760x520mm
Suitable Material	PET, PP, PS, PVC, Biodegradable
Sheet Width	400-780 mm
Material Thickness Range	0.15-2mm
Max. Sheet Roll Dia.	1200mm
Running Spee	15-35cycles/min
Heating Power	8*10+10*8=160*800W=128KW
Sheet Index	5KW Servomotor
Upper Forming-Cutting Station	Servomotor
Lower Forming-Cutting Station	11KW Reducing Motor
Air Pressure	0.7Mpa
Air Consumption	2000 Liters/min
Cooling Water Consumption	10 Liters/min 15° - 20°C
Power Voltage	380V, 50HZ, 3P
Approx. Machine Dimension	11000×3300×3300(L*W*H)
Approx. Machine Weight	16000kg


We have 2 in 1 thermoforming machine, 3 in 1 thermoforming machine and 4 in 1 thermoforming machine.

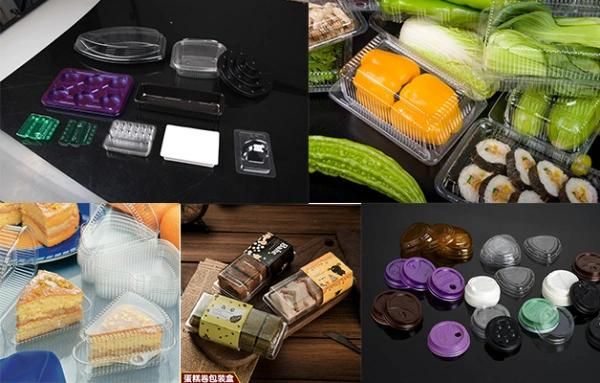

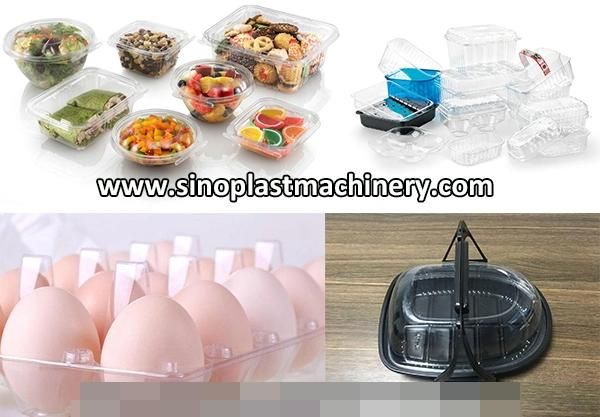

Samples:



Please contact with me to get quotation of our machines with details specification!
