• Model NO.：TOPSUN
• Assembly Structure：Integral Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Certificate：Ce, Atex, SGS, TUV
• Transport Package：Pallet, Case
• Specification：TSX
• Trademark：TOPSUN
• Origin：Yantai, China
• HS Code：8477
• Production Capacity：5 Sets,Month

ModelVolume (L)Output (kg/tank)Mixing Motor (kw)Tilting Motor (kw)Crushing Motor (kw)Mixing Time (min)Control ModeOverall Dimensions (MM)FHJ-151581.5  5-10PLC 750*480*950FHJ-120120605.50.2 5-10PLC 1800*1800*1950FHJ-150 150705.50.372.25-10PLC 2150*1100*2300 FHJ-3003001501532.25-10PLC 2150*1100*2300 FHJ-600 60030022445-10PLC 2650*1250*2700 FHJ-1000100050030445-10PLC 2900*1550*3100 FHJ-2000 20001000455.55.55-10PLC 3500*2350*3650
1.2 High Speed Pre-Mixer:

Features:

High efficiency & easy operation

Easy color changing, safe cleaning

Combined mixing & crushing as one

Mixing time preseting, short & homogeneous

Excellent sealing, powder leaking free

Vertical or horizontal type as optional

Technical Data:
 ModelMill Motor kwRotor rpmClassifier MotorClassifier rpmFan kwAir cbm/hCapacity kg/hOverall dimensions mmACM-022.2120000.370-300033502-301430*550*1300ACM-054110000.750-3000480030-802100*1000*2150ACM-107.570001.50-3000112500100-2606200*1250*3200ACM-151170001.50-3000153000200-3506500*1300*3300ACM-201566002.20-3000223500300-4007500*1300*3600ACM-3022550030-3000304500400-5507900*1500*3600ACM-403046005.50-3000375500600-8008000*1700*3600ACM-503740007.50-30004565001000-12009000*1900*3900ACM-604535007.50-30005580001200-16009000*2000*4000

Company:

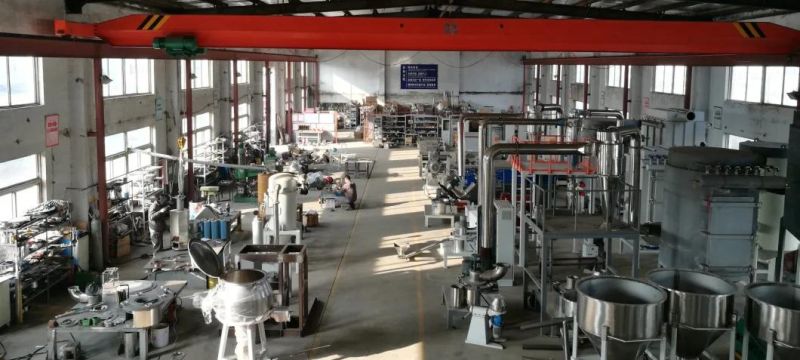

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistant quality, effective communication, responsible service.
